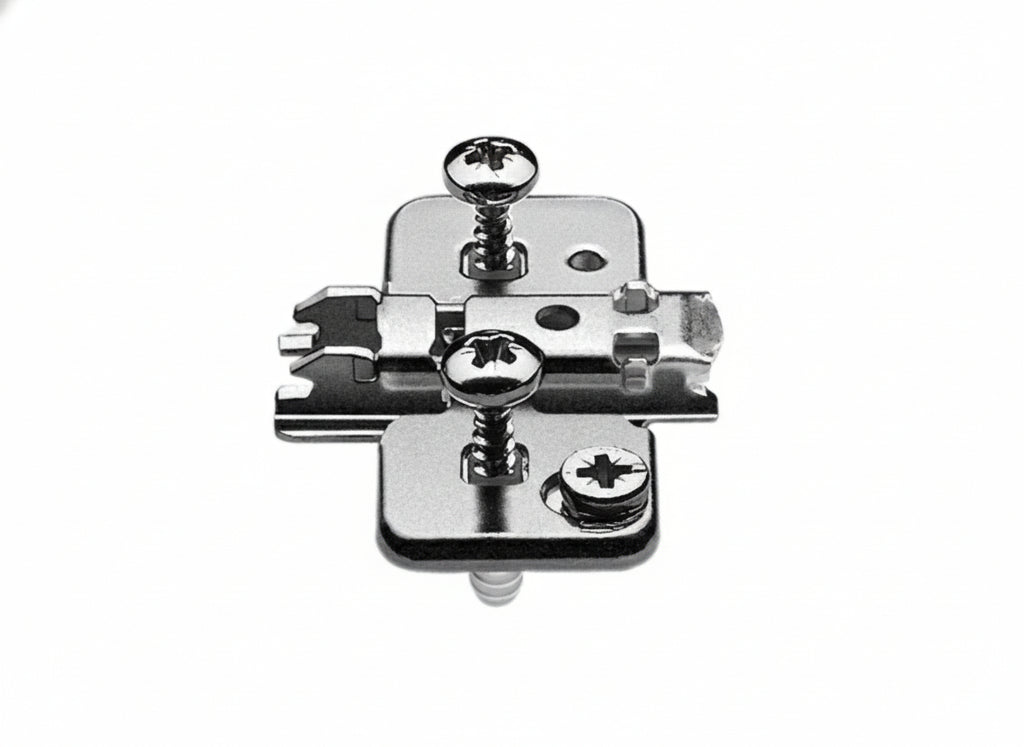

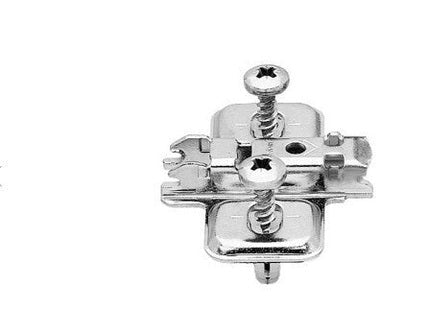

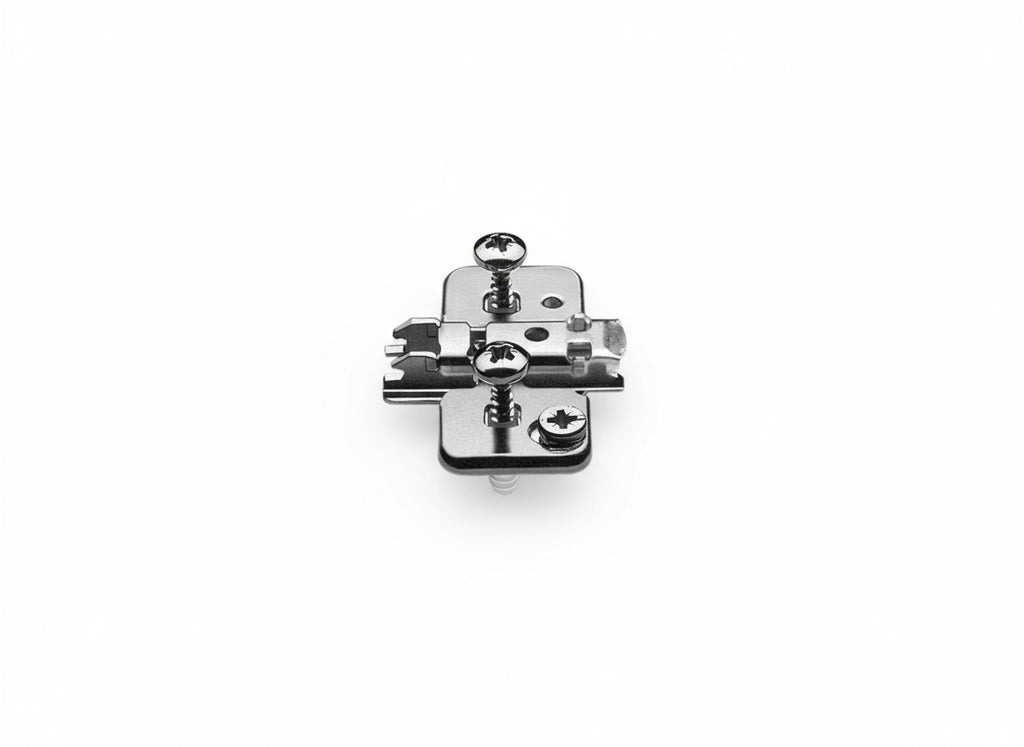

BLUM Clip Mounting Plate 0mm Expando

Product Code:

• CAM Adjustment : BP174710E
• No CAM Adjustment : BP174610

Feature:

CAM Adjustment

● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes:11.5mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Height: 8.5mm
● Spacing: 0
● Angle: 0
● Item package: 1 piece
● Packaging: Industrial packing
● Material of bottom part: Steel

No CAM Adjustment

● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes: 11.5mm
● Mounting plates height adjustment: With elongated hole
● Height adjustment: +/-2mm
● Height: 8.5mm
● Spacing: 0
● Angle: 0
● Item package: 1 piece
● Packaging: Industrial packing
