Product Code: BM79853

Feature:

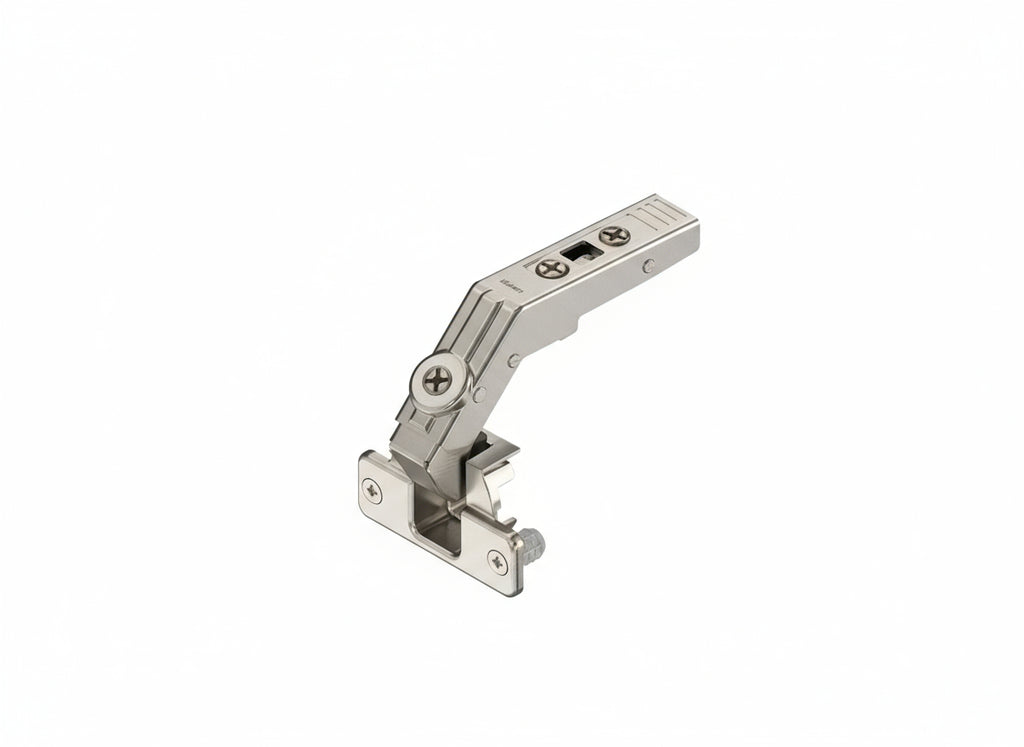

•    Bi-fold hinge
•    Opening angle: 60°
•    Closing mechanism: With spring
•    Boss material: Steel boss
•    Boss finish: Nickel plated
•    Boss assembly: Knock-in
•    Flange width: 57mm
•    Flange length: 20mm
•    Flange height: 3.2mm
•    Diameter hinge boss drilling: 35mm
•    Diameter of fixing holes: 8mm
•    Distance between drillings: 45mm
•    Eccentric position of fixing holes to hinge hole boss: 9.5mm
•    Boss drilling depth: 11.5mm
•    Minimum drilling distance: -5mm
•    Maximum drilling distance: -5mm
•    Arm material: Steel
•    Arm finish: Nickel plated
•    Collision measurement (hinge arm height): 20.5mm
•    Fixed dimension/factory setting: 0mm

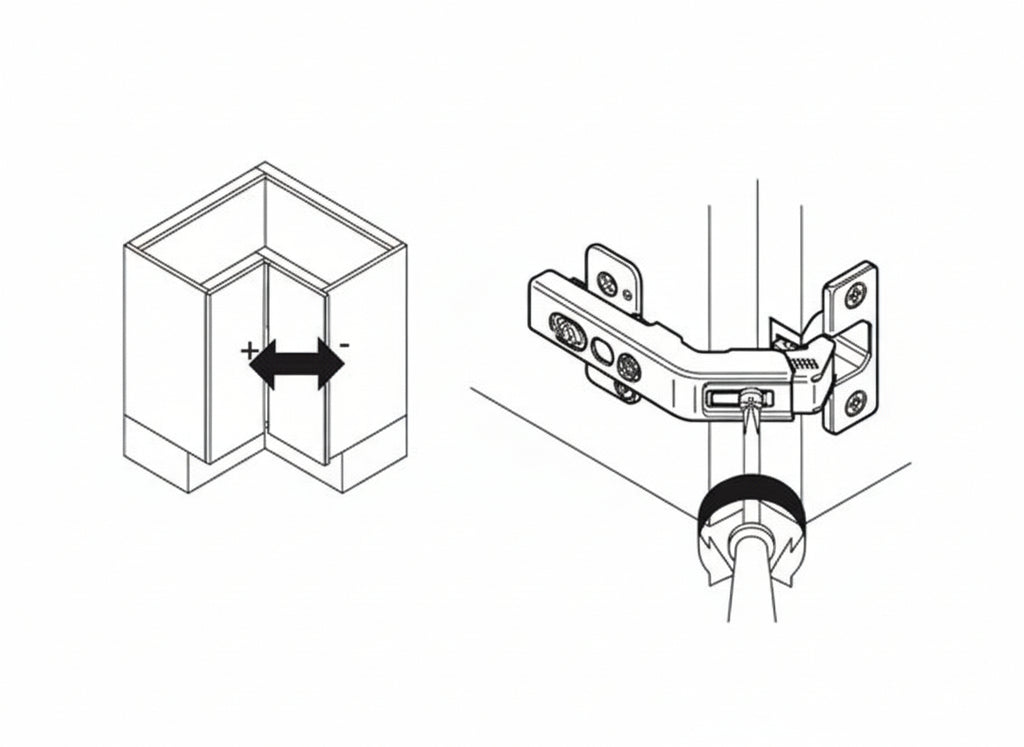

•    Type of side adjustment: With screw
•    Side adjustment: +/-2mm
•    Gap adjustment: + 7.2/- 4.2 mm
•    Type of depth adjustment: Convenient with spiral screw
•    Gap: 1.5mm

Please note: This does not come with Mounting plate. They are sold separately.
