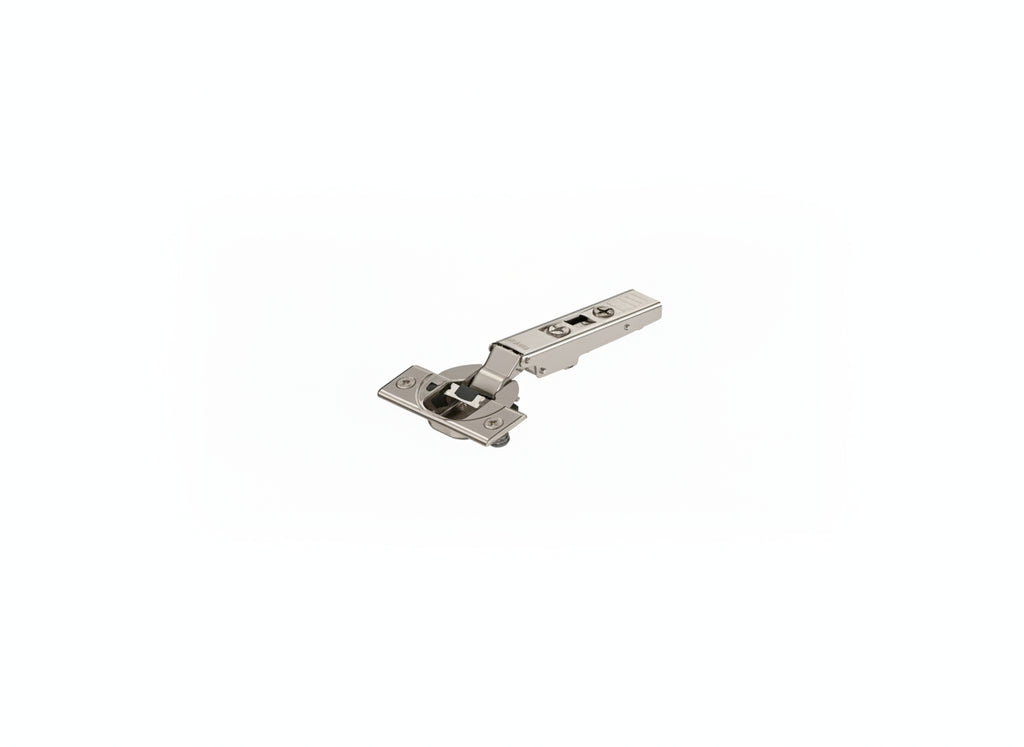

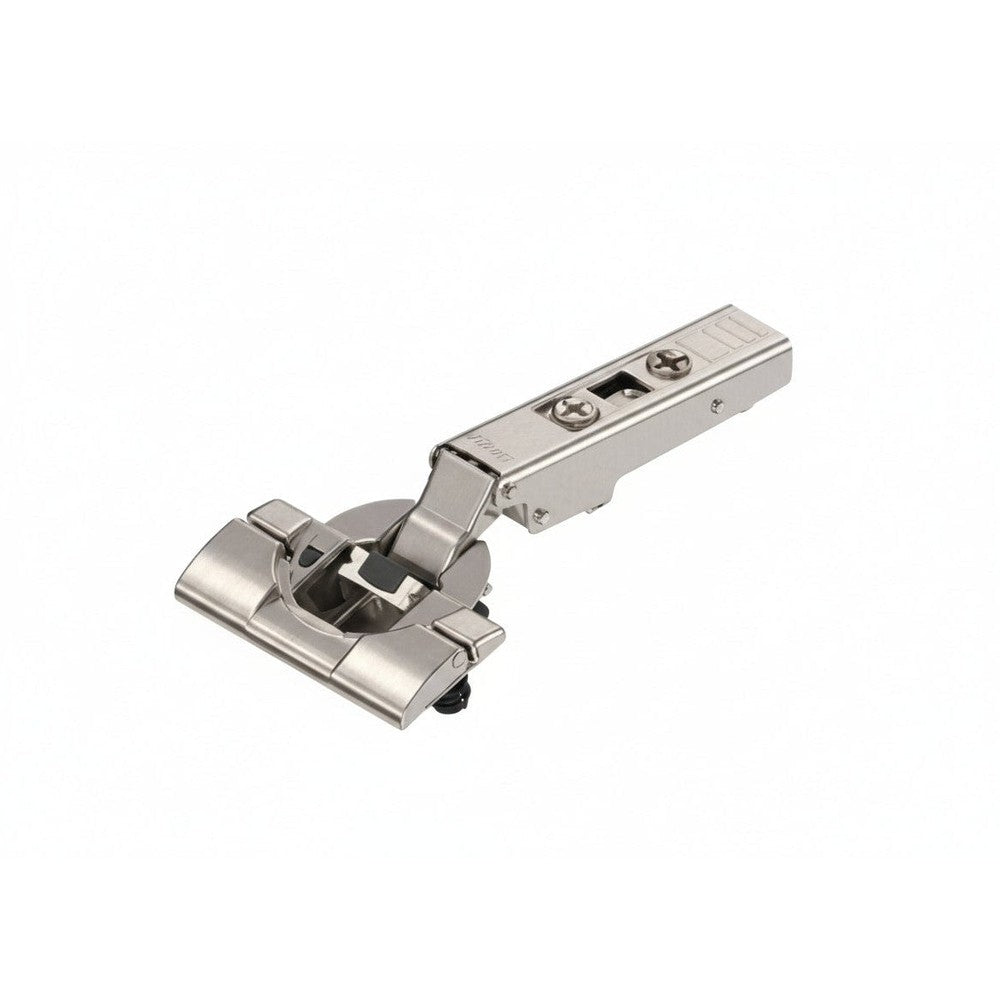

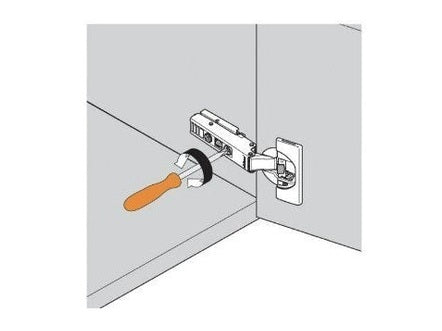

Blum Clip Top BluMotion 110° Hinge - Full Overlay & MOUNTING PLATES

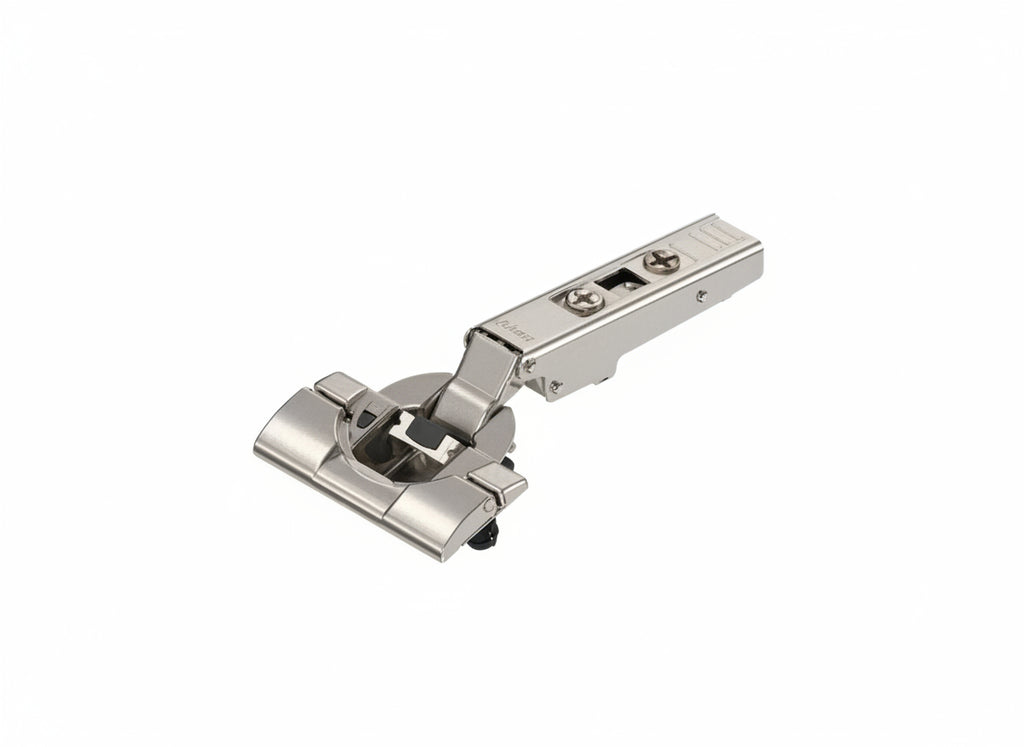

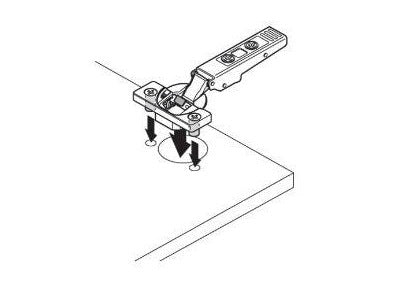

Blum Hinges - Inserta 72B3590

Specifications

• Application: Standard hinge
• Cranking: Overlay application
• Opening angle: 110°
• Closing mechanism: With spring
• Hinge variant: With integrated BLUMOTION
• Cover cap type: 90M2503
• Cover cap type: 70.1503 (BPC10021)
• Boss material: Steel boss
• Boss finish: Nickel plated
• Boss assembly: INSERTA
• Flange width: 57mm
• Flange length: 27.5mm
• Flange height: 6.4mm
• Diameter hinge boss drilling: 35mm
• Diameter of fixing holes: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 13mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 7mm
• Arm material: Steel
• Arm finish: Nickel plated
• Collision measurement (arm hinge height): 21.5mm
• Fixed dimension/factory setting: 11mm
• Type of side adjustment: With screw
• Side adjustment: +/-2mm
• Type of depth adjustment: Convenient with spiral screw
• Depth adjustment: +3/-2mm
• Gap: 1.5mm

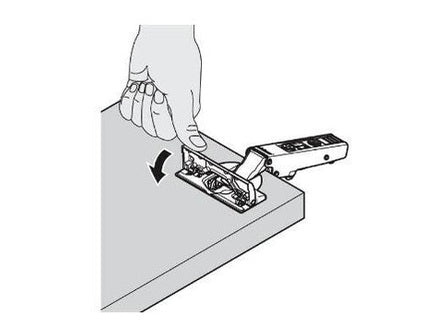

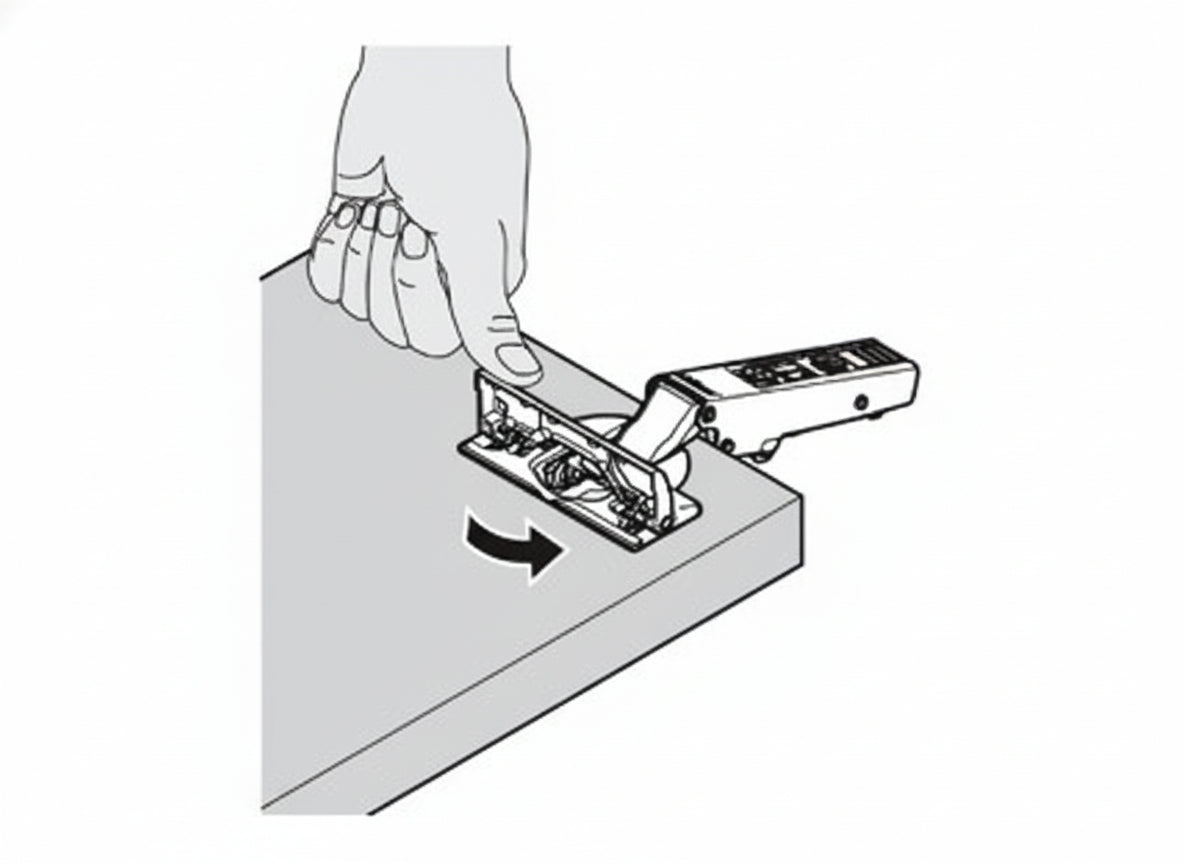

Blum Hinges - Knock-In 71B3580

Specifications

• Application: Standard hinge
• Cranking: Overlay application
• Opening angle: 110°
• Closing mechanism: With spring
• Hinge variant: With integrated BLUMOTION
• Cover cap type: 90M2503
• Cover cap type: 70.1503 (BPC10021)
• Cover cap type: 70T3504-boss cover cap (BHBC)
• Boss material: Steel boss
• Boss finish: Nickel plated
• Boss assembly: Knock-in
• Flange width: 57mm
• Flange length: 22mm
• Flange height: 3.2mm
• Diameter hinge boss drilling: 35mm
• Diameter of fixing holes: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes t hinge boss hole: 9.5mm
• Boss drilling depth: 13mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 7mm
• Arm material: Steel
• Arm finish: Nickel plated
• Fixed dimension/factory setting: 11mm
• Type of side adjustment: With screw
• Side adjustment: +/-2mm
• Type of depth adjustment: Convenient with spiral screw
• Depth adjustment: +3/-2mm
• Gap: 1.5mm
• Item package: 1 piece
• Packaging: Commercial packing

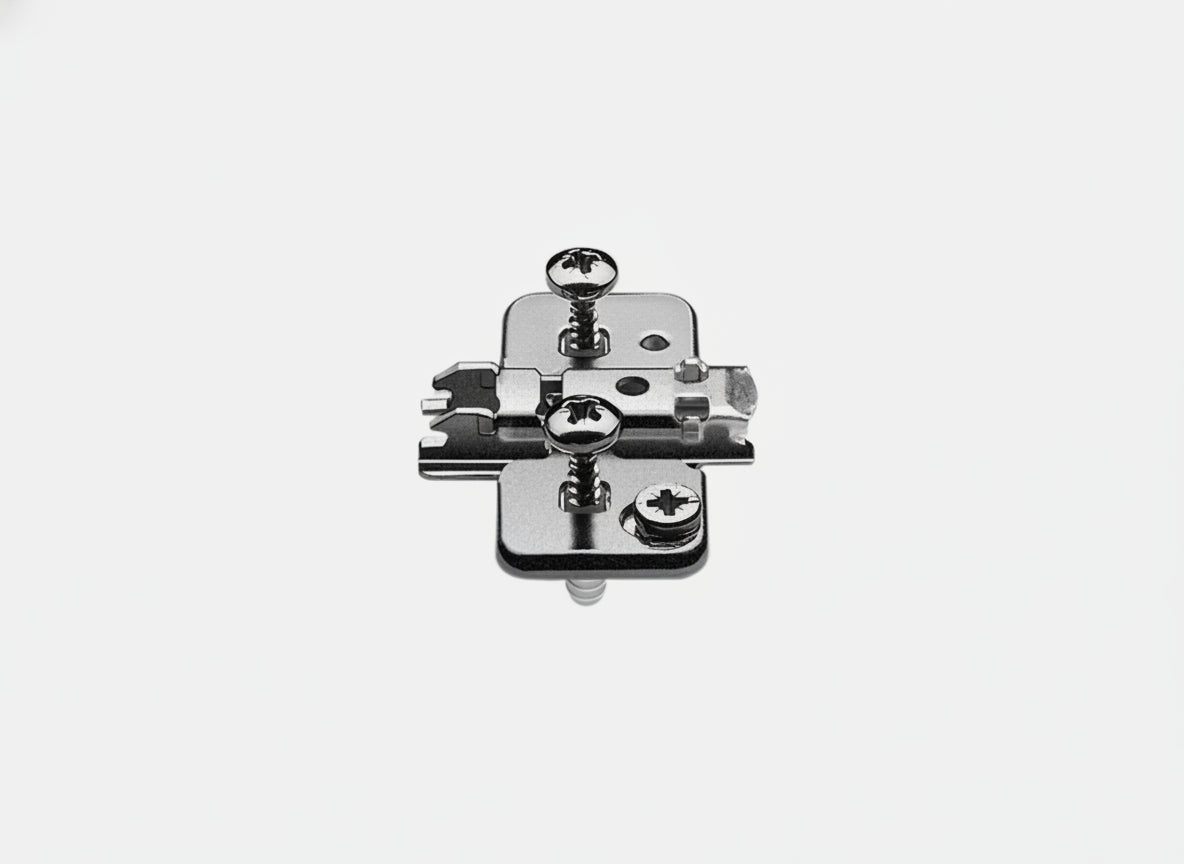

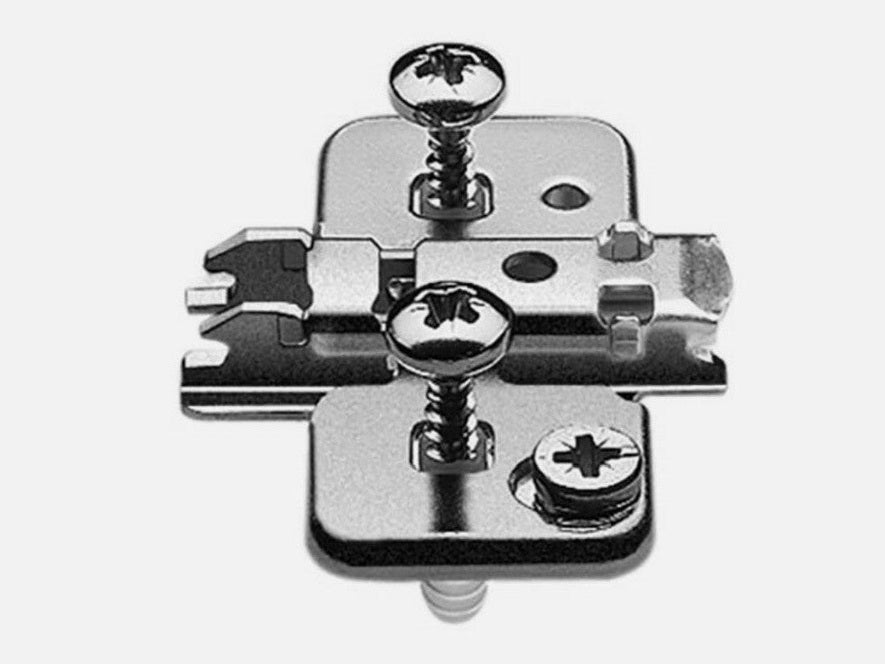

Blum Mounting Plates - Part 174H7100E

Specifications

• Mounting plate system: CLIP
• Shape of mounting plate: Cruciform
• Upper part material: Steel
• Surface of bottom part: Nickel plated
• Fixing: EXPANDO (pre-mounted screws with split dowel)
• Distance cabinet front edge to first fixing position: 37mm
• Diameter of fixing holes: 5mm
• Drilling depth of fixing holes:11.5mm
• Mounting plates height adjustment: With cam
• Height adjustment: +/-2mm
• Height: 8.5mm
• Spacing: 0
• Angle: 0
• Material of bottom part: Steel
