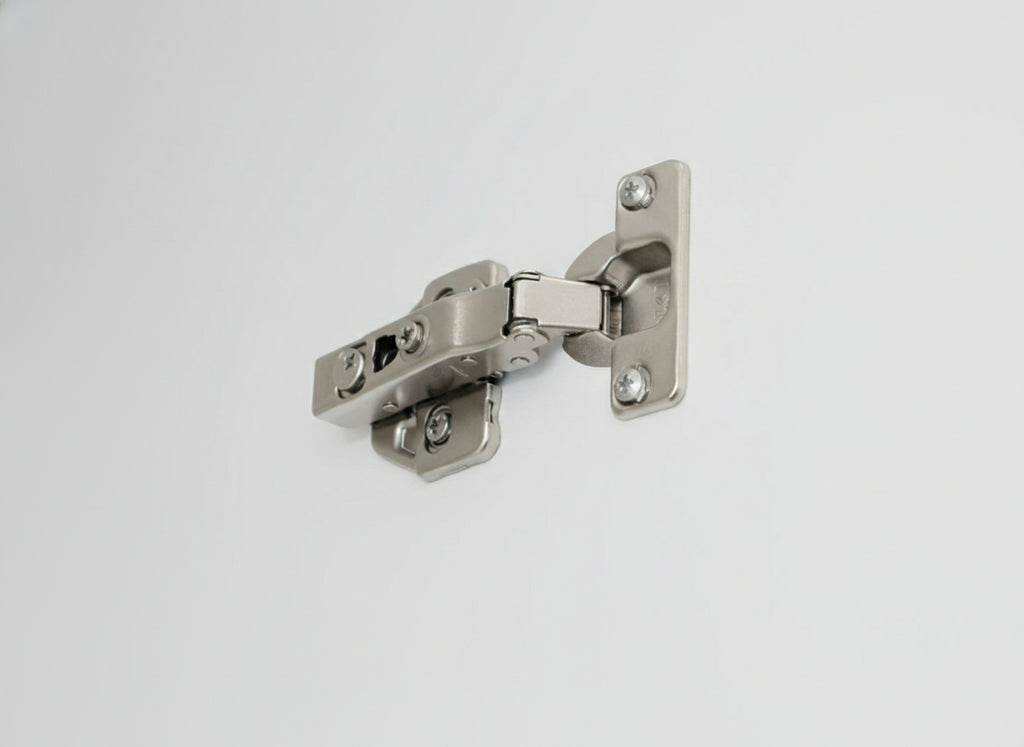

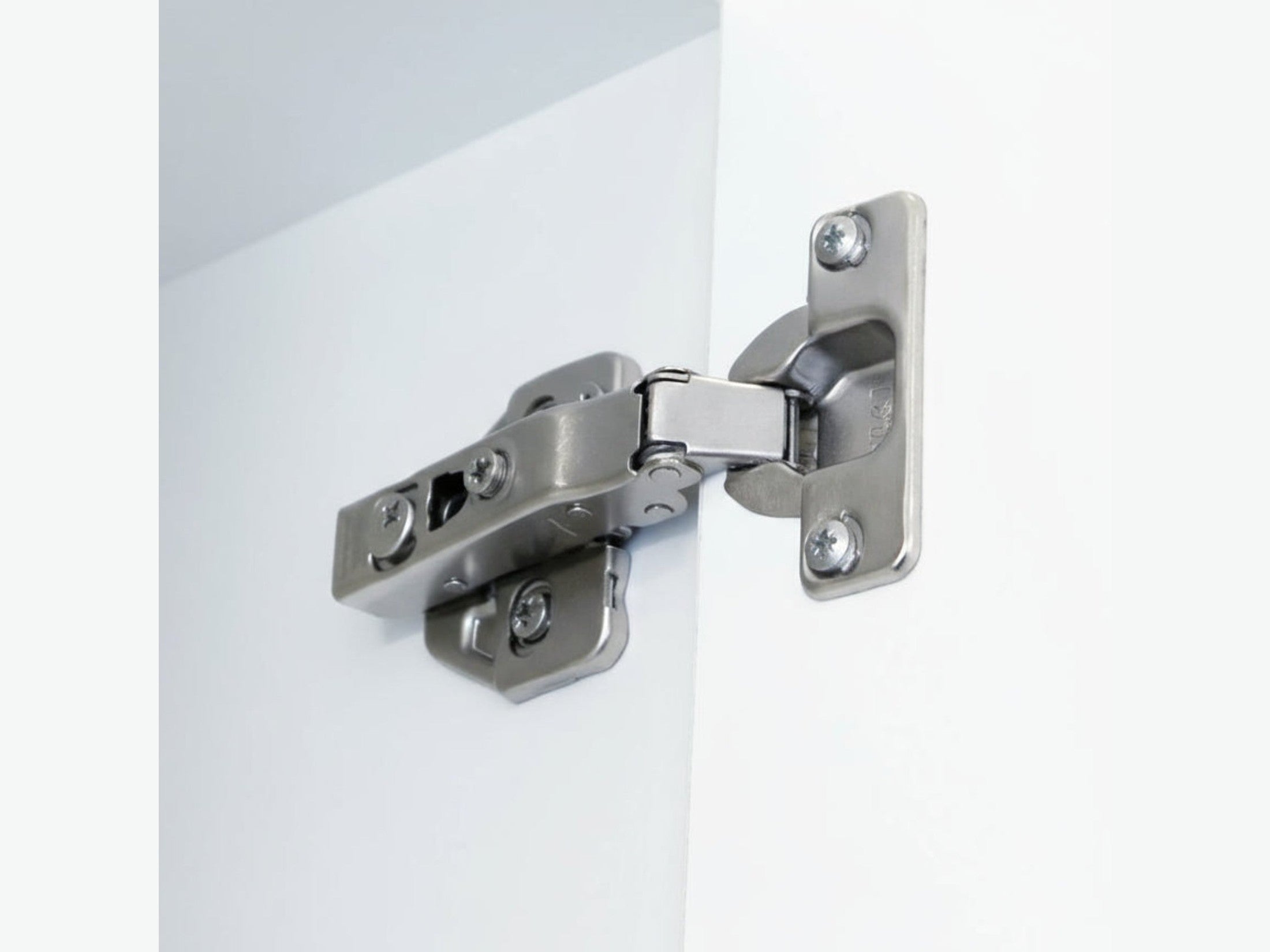

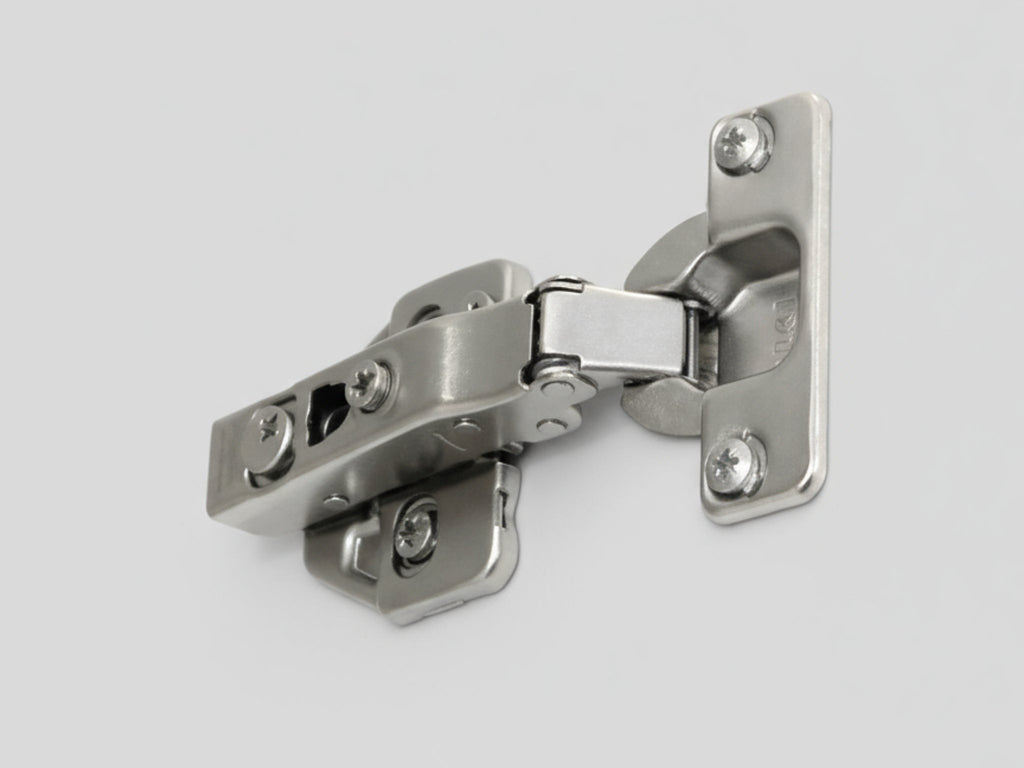

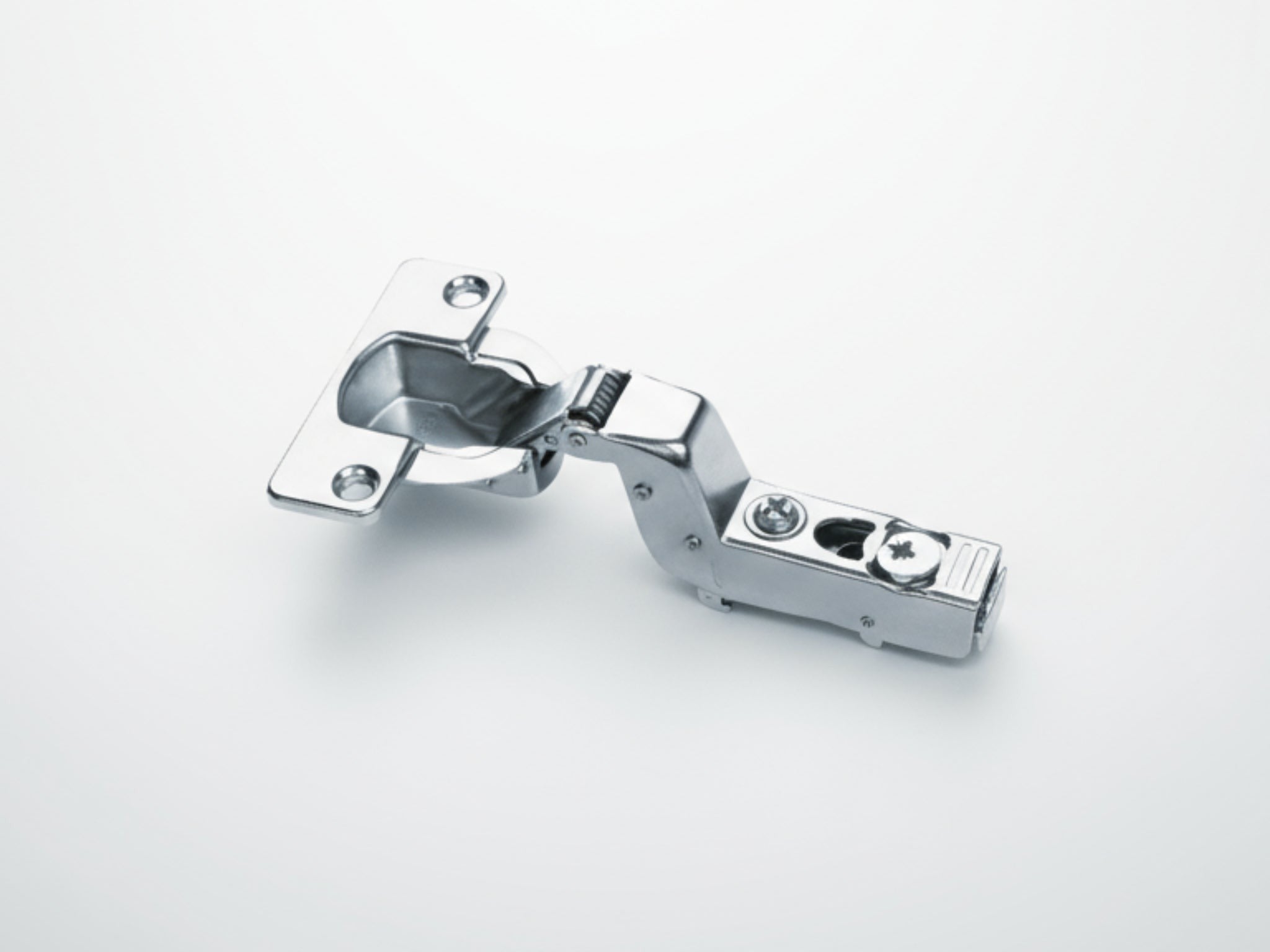

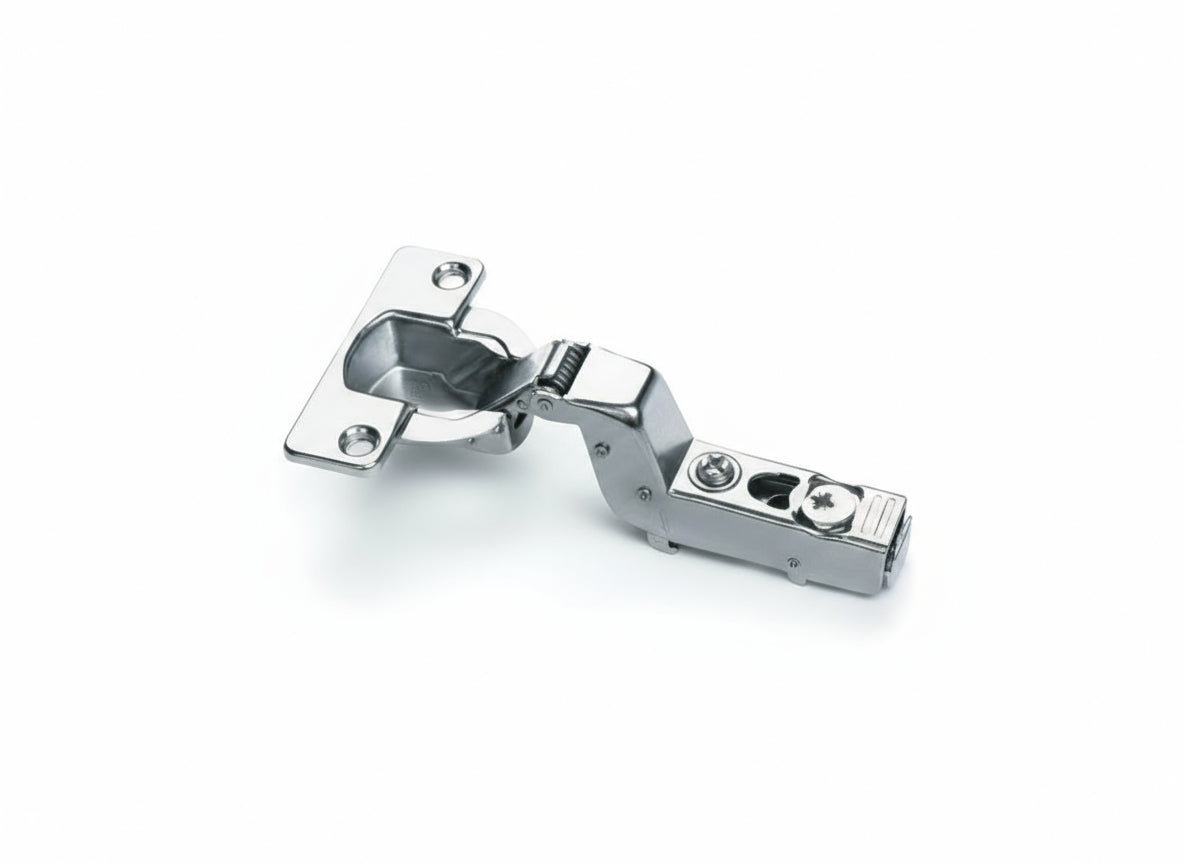

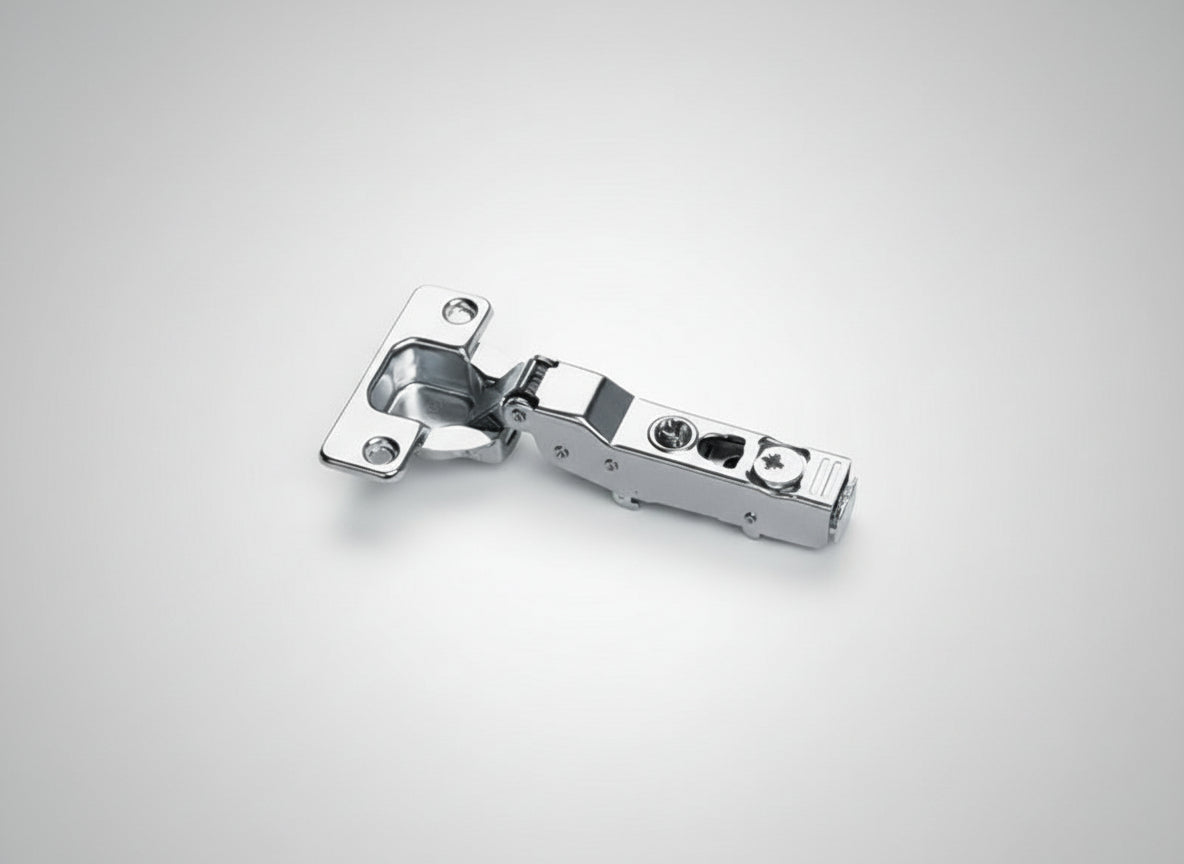

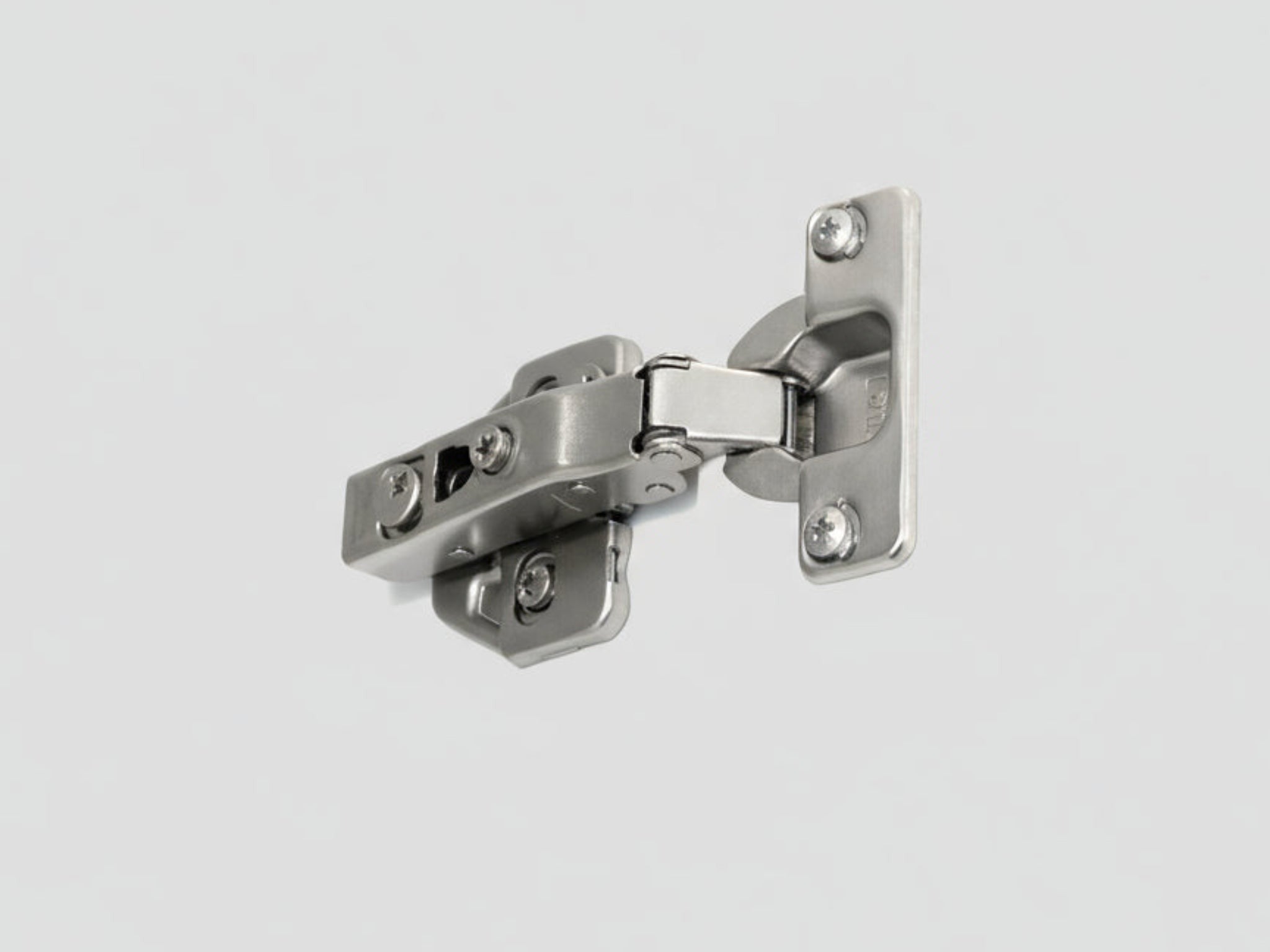

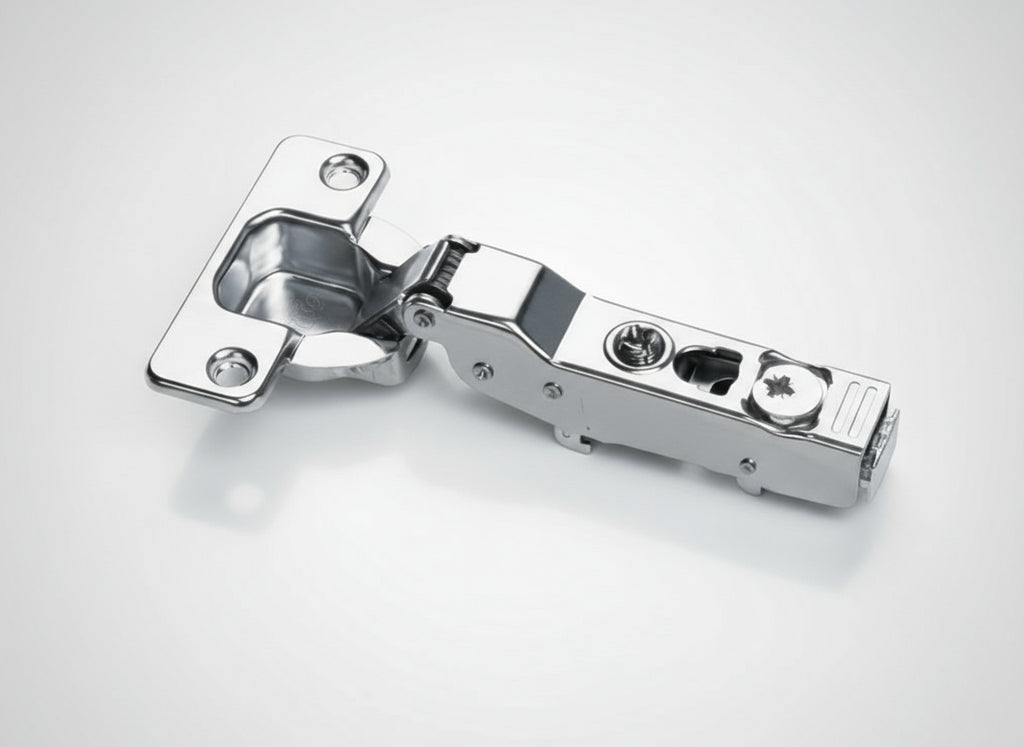

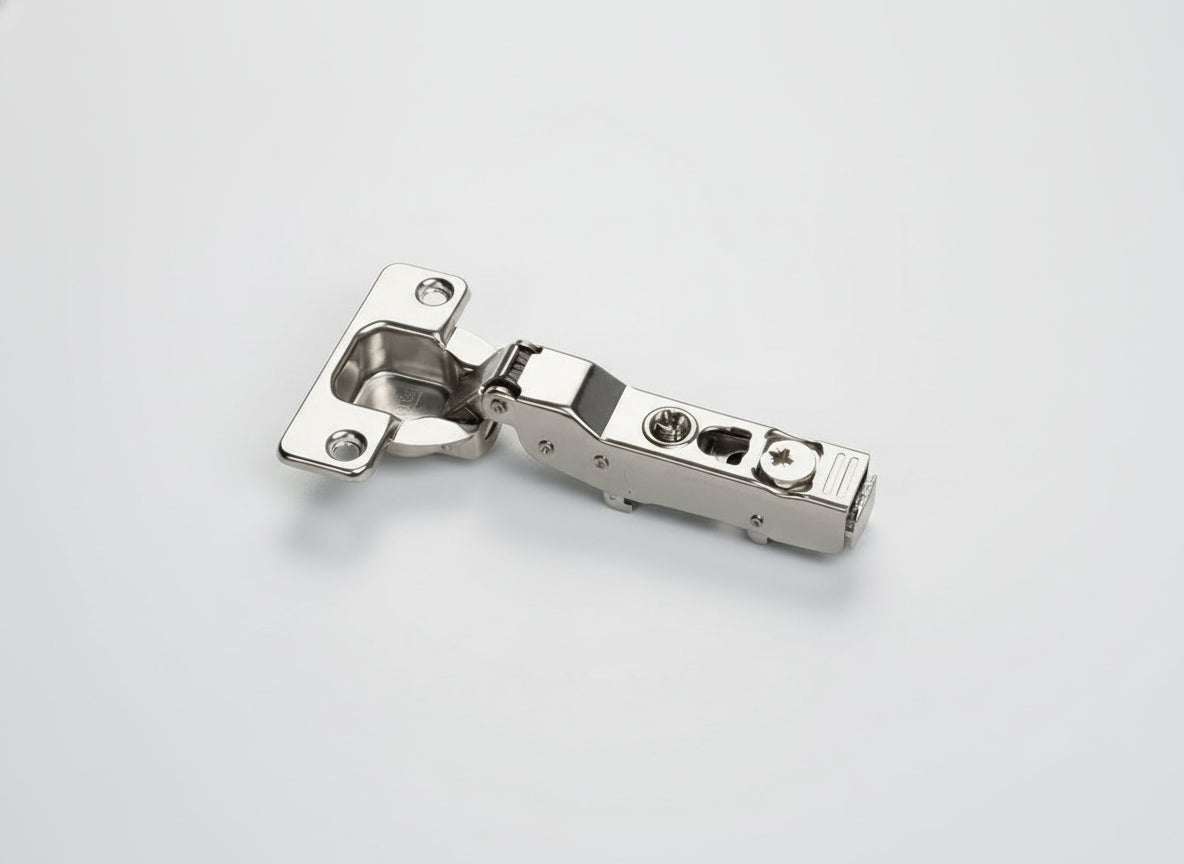

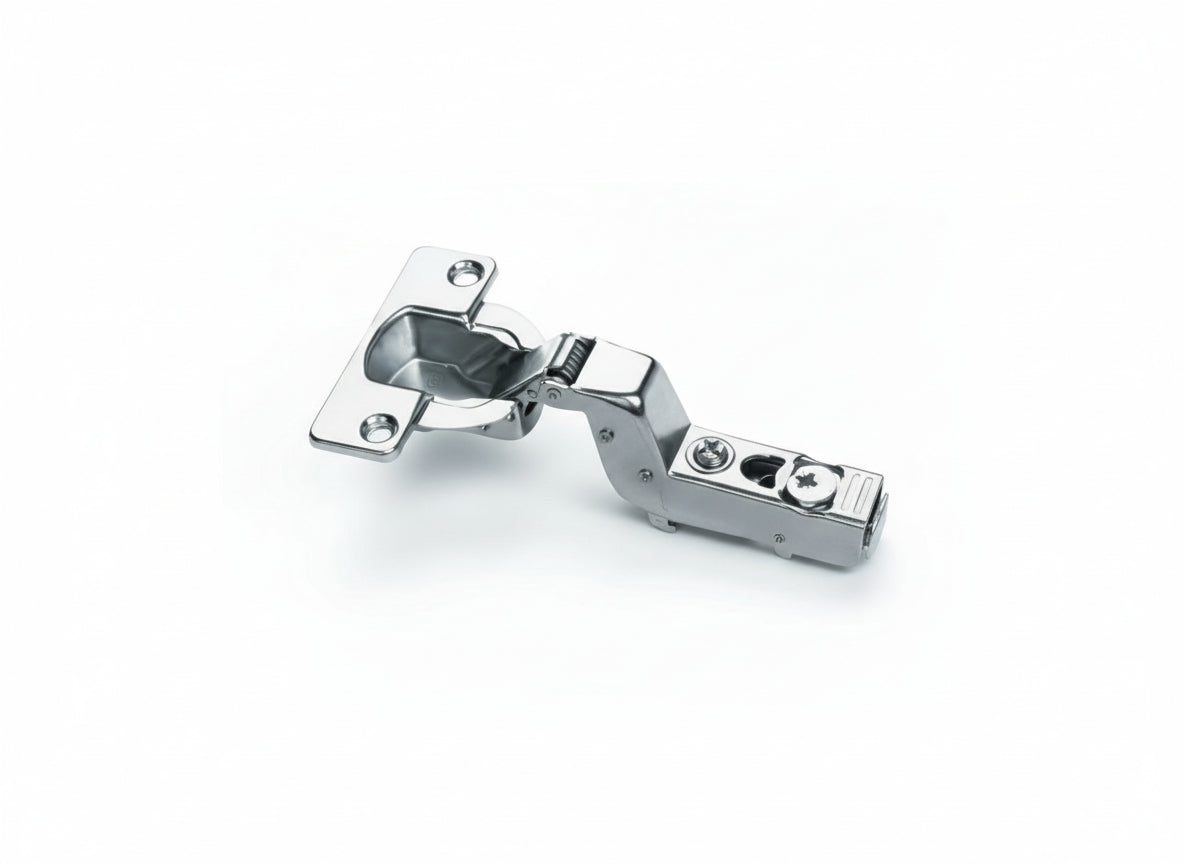

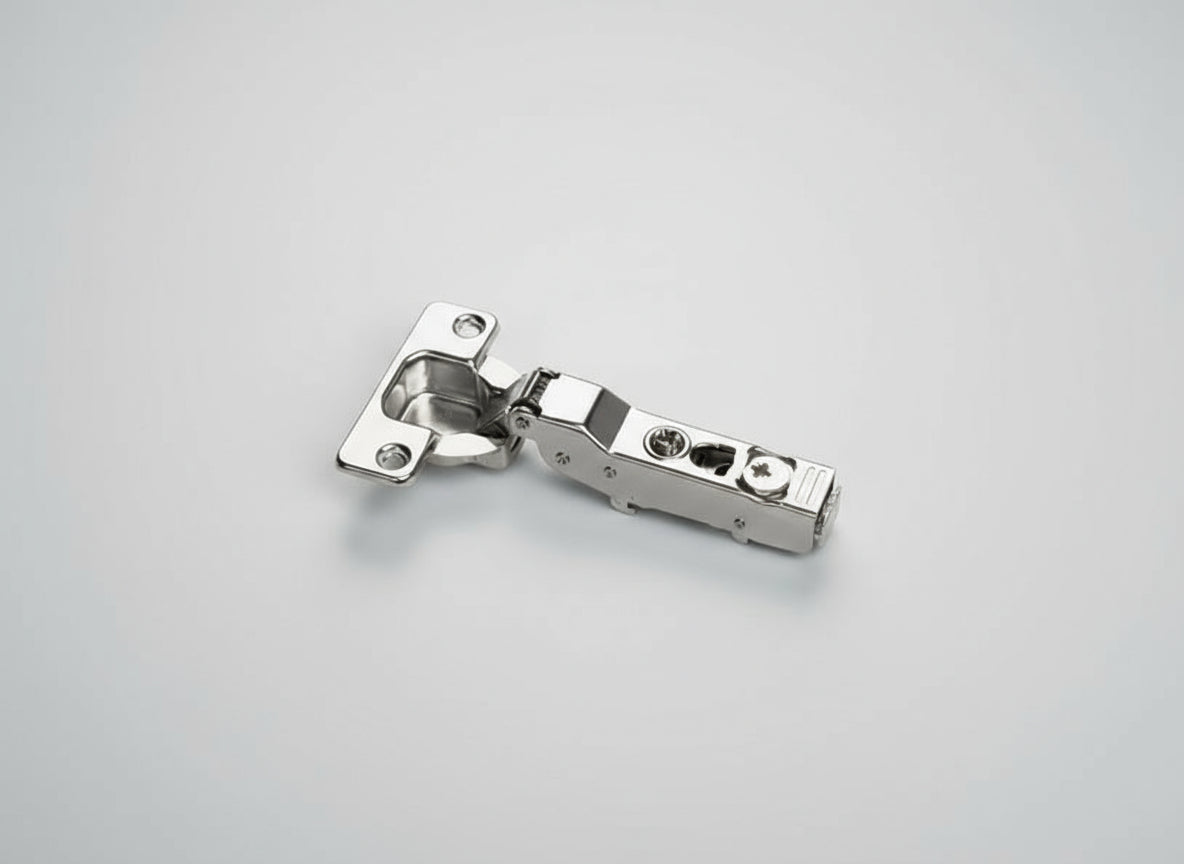

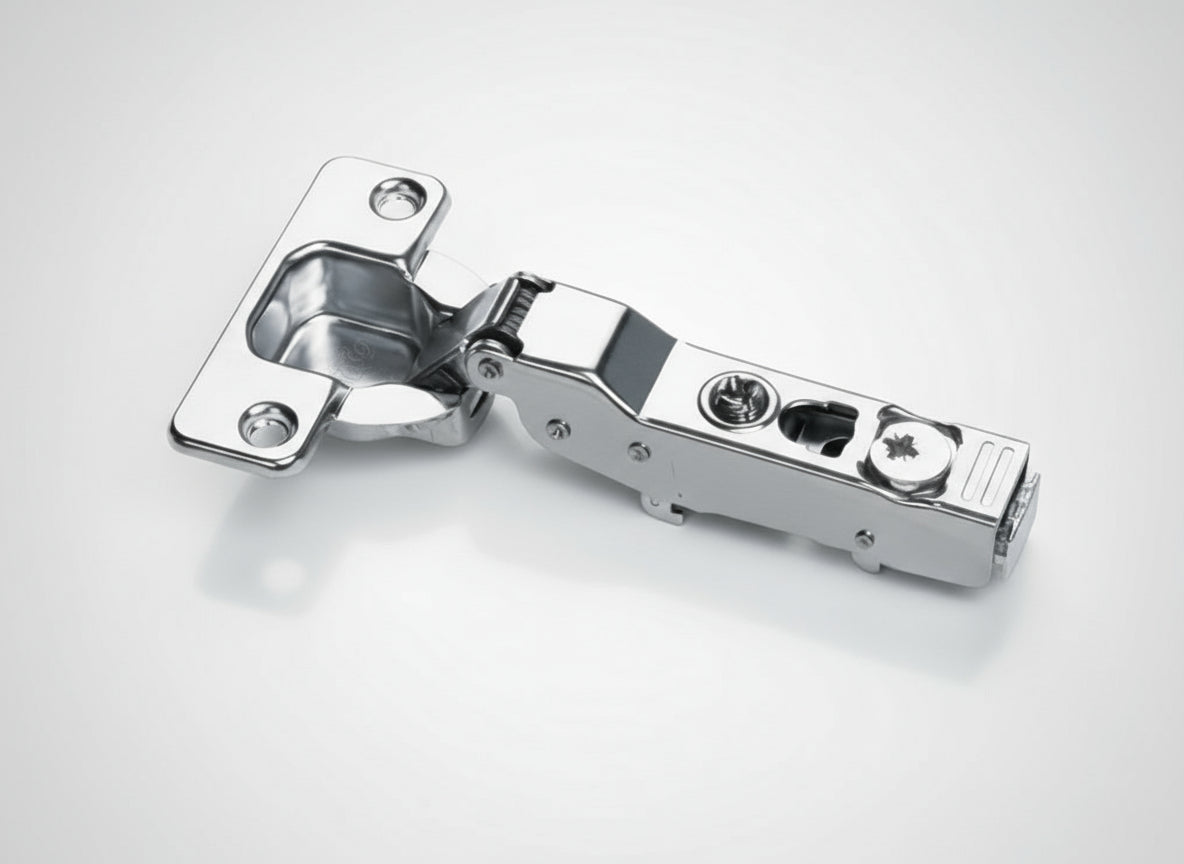

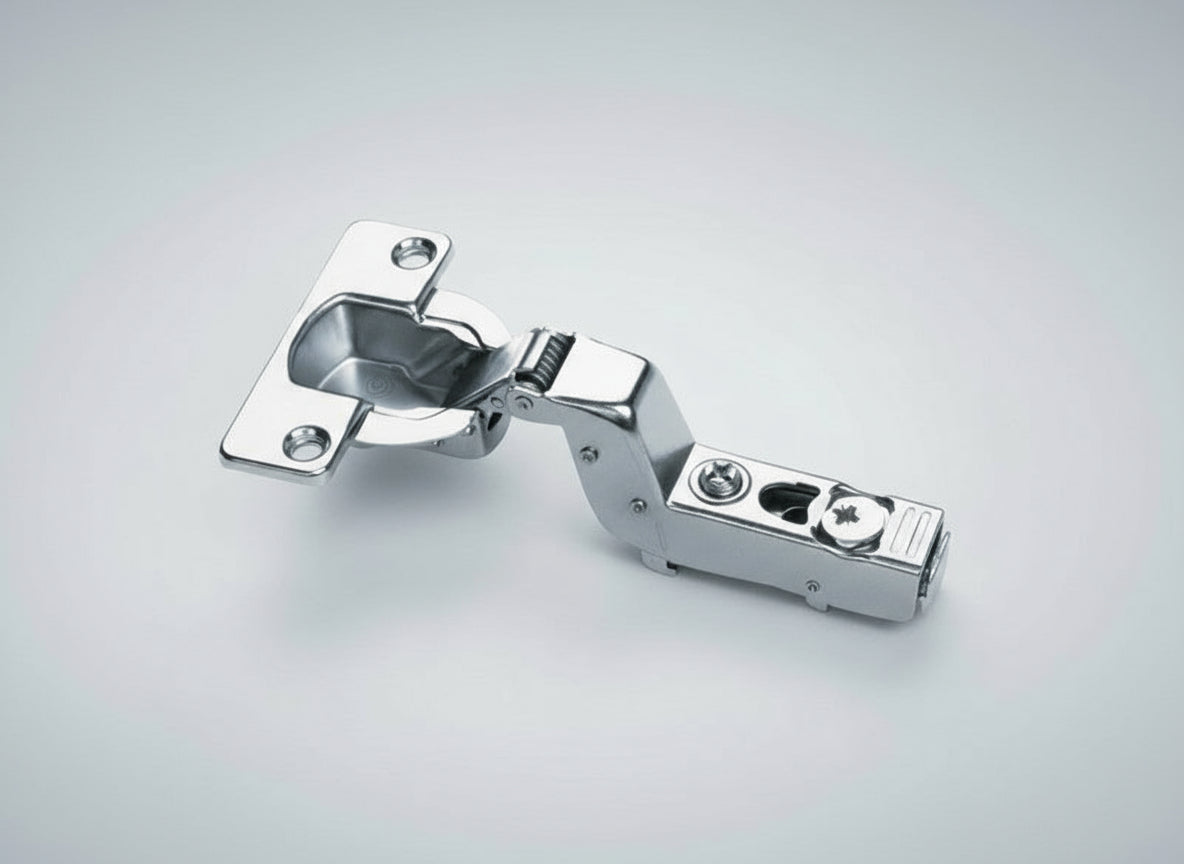

Feature:

• Opening Angle : 110 Degree
• Soft Close
• Depth of Hinge Cup: 11.5mm
• Diameter of Hinge Cup: 35mm
• Drilling Distance for Door: 3 - 6mm
• Range of Door Thickness: 16 - 26mm

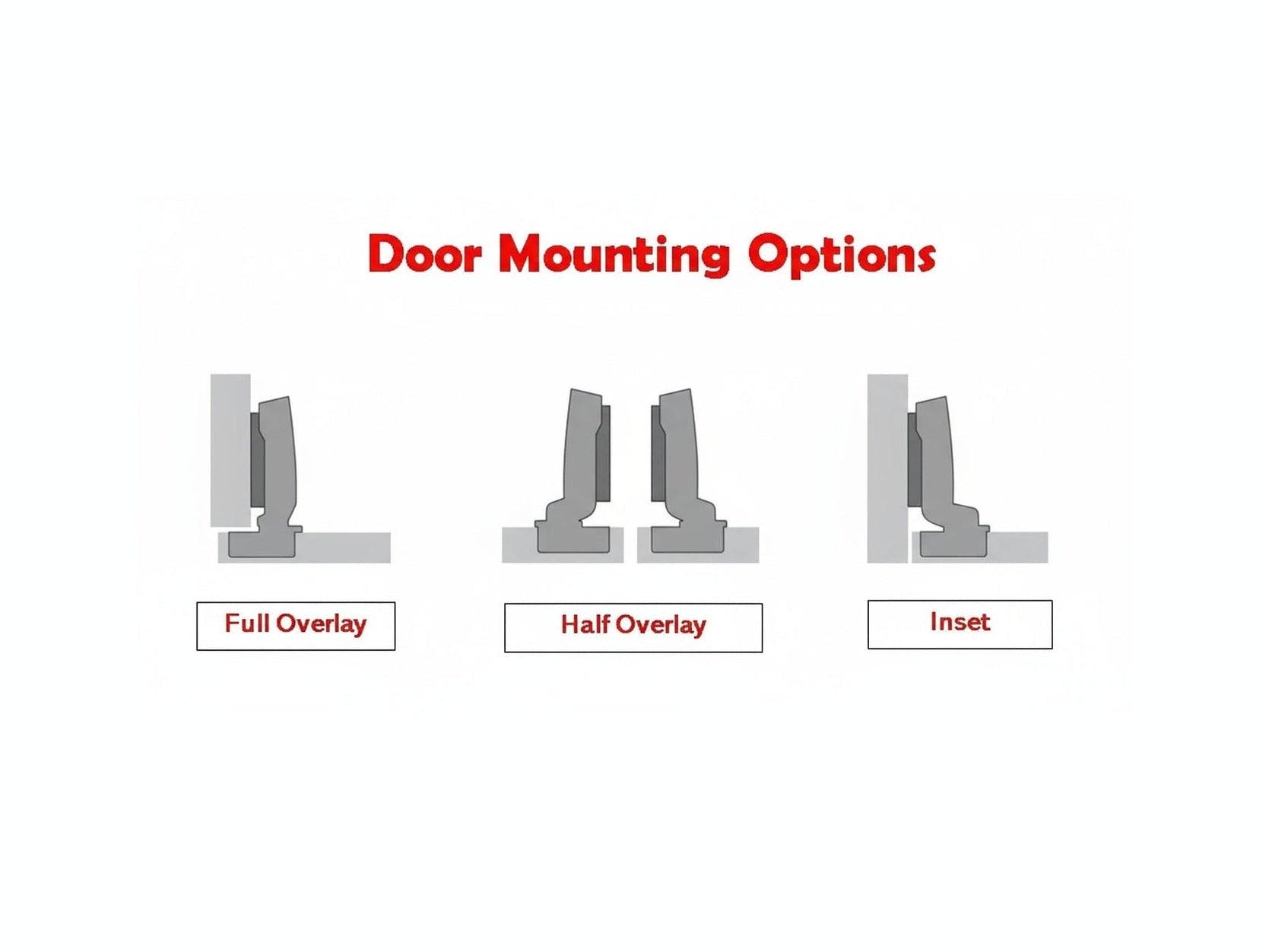

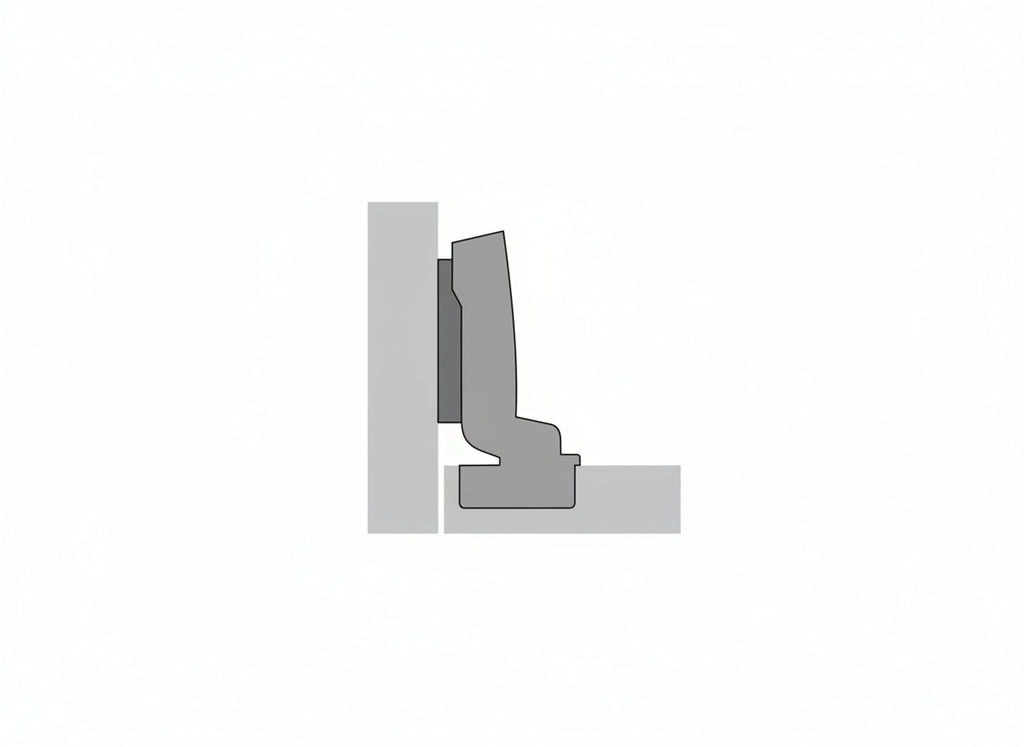

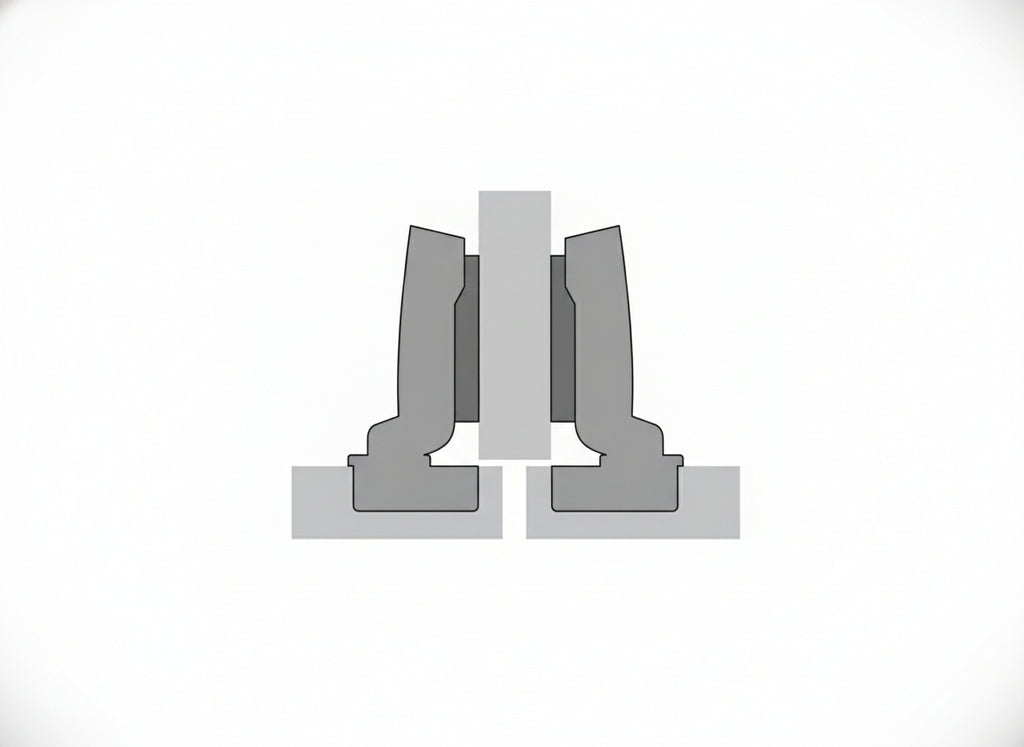

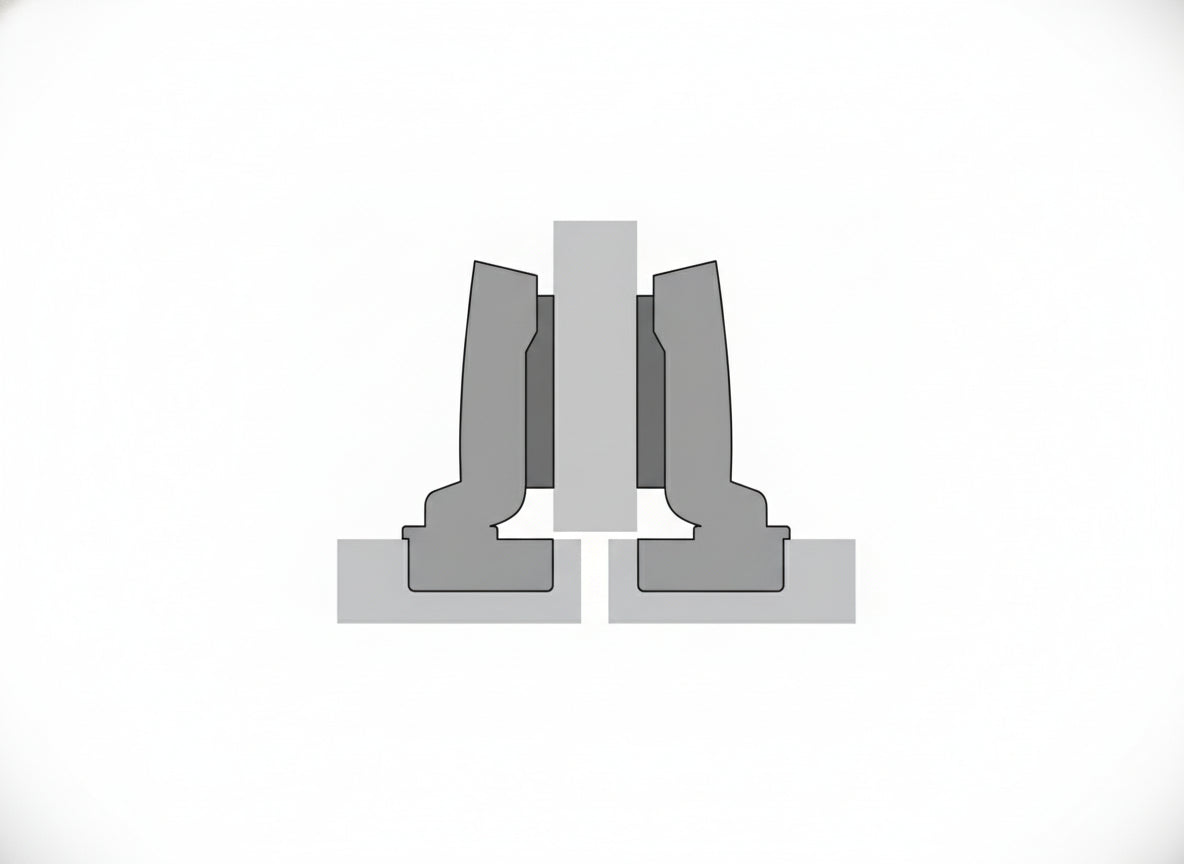

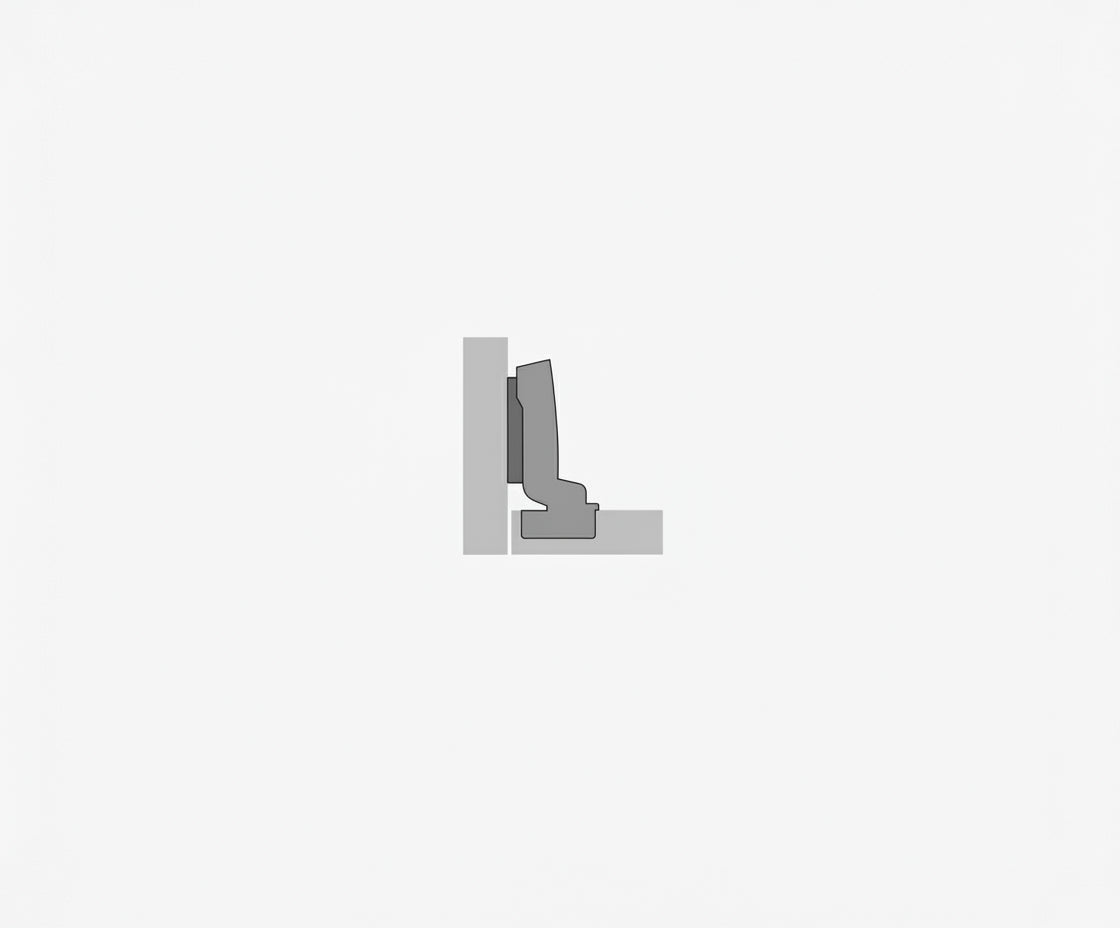

Door Mounting Options:

• Please refer to one of the photos for the options

Hole to Hole Measurement (Centre between the 2 screw holes):

• 45mm - BLUM Pattern
• 48mm - Salice (Hafele) Pattern
• 52mm - Hettich Pattern

Some patterns come with dowels

Please note: This does not come with Mounting plate. They are sold separately.
