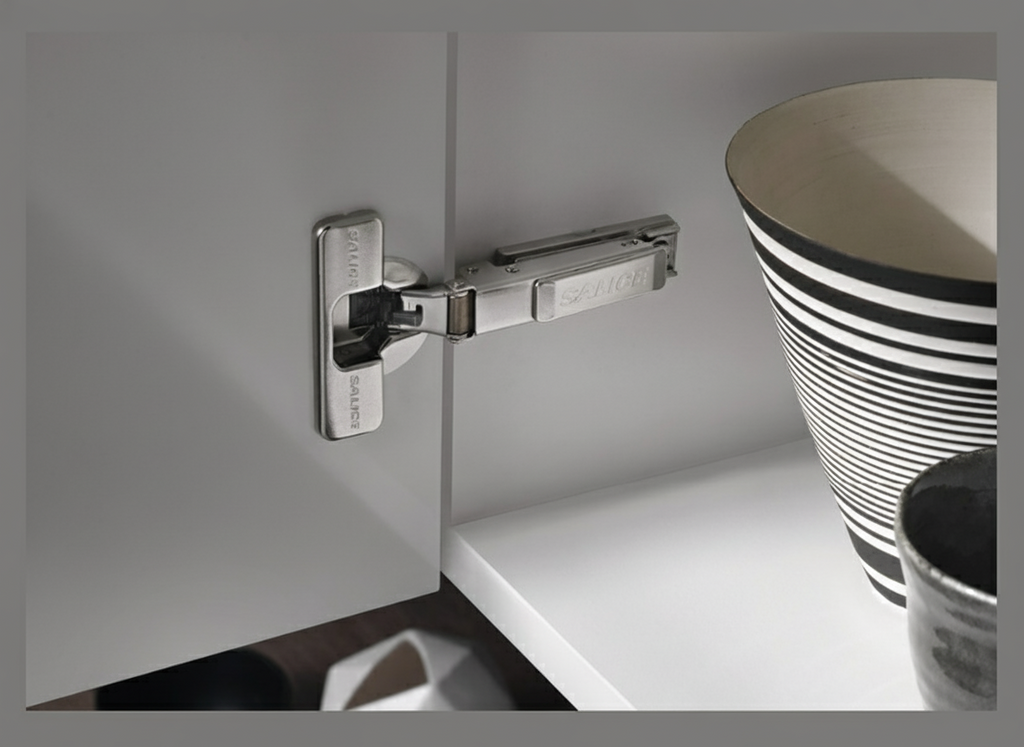

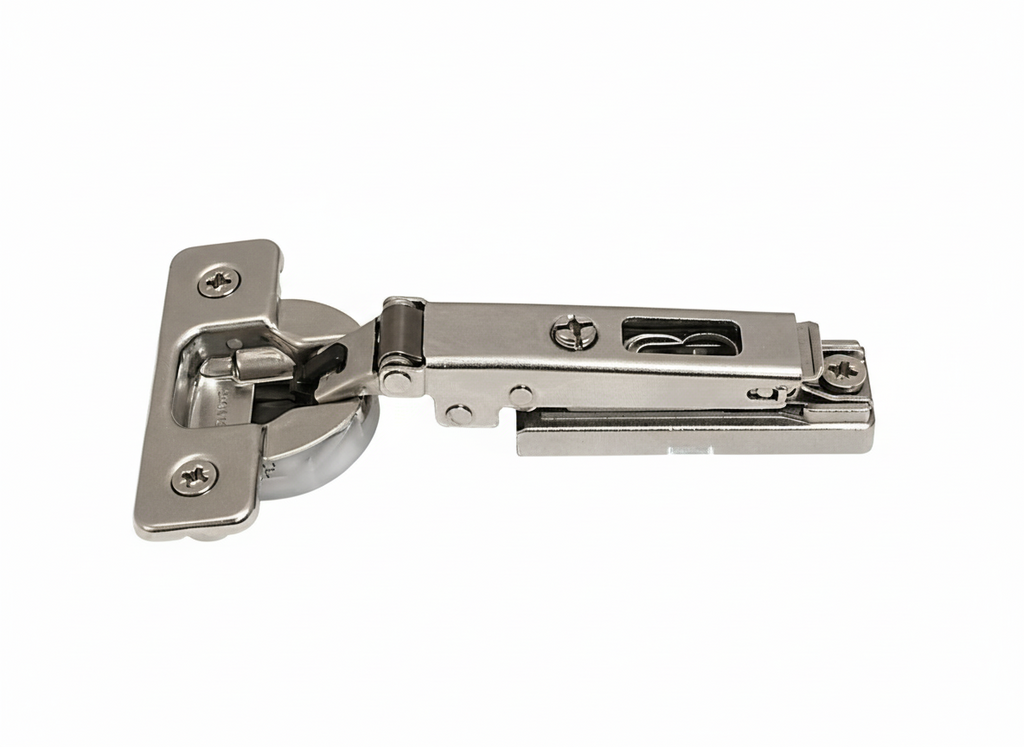

Product: HAFELE Salice 105° Hinges - Full Overlay (Soft Close)

Product Code:

• 48/6 : 329.28.240
• 45/9.5 : 329.28.380
• 52/5.5 : 329.28.370

Feature:

• Material : Steel
• Finish : Nickel-plated
• Opening Angle : 105°
• Cup Drilling Depth : 12.5mm
• Adjustment : Side Adjustment -1.5 to 4.5mm; Height Adjustment -/+2mm; Depth Adjustment -0.5 to 2.8mm
• Drilling Pattern Options: 48/6 ; 45/9.5 ; 52/5.5
• Made in Italy

Please note: This does not come with Mounting plate. They are sold separately.
