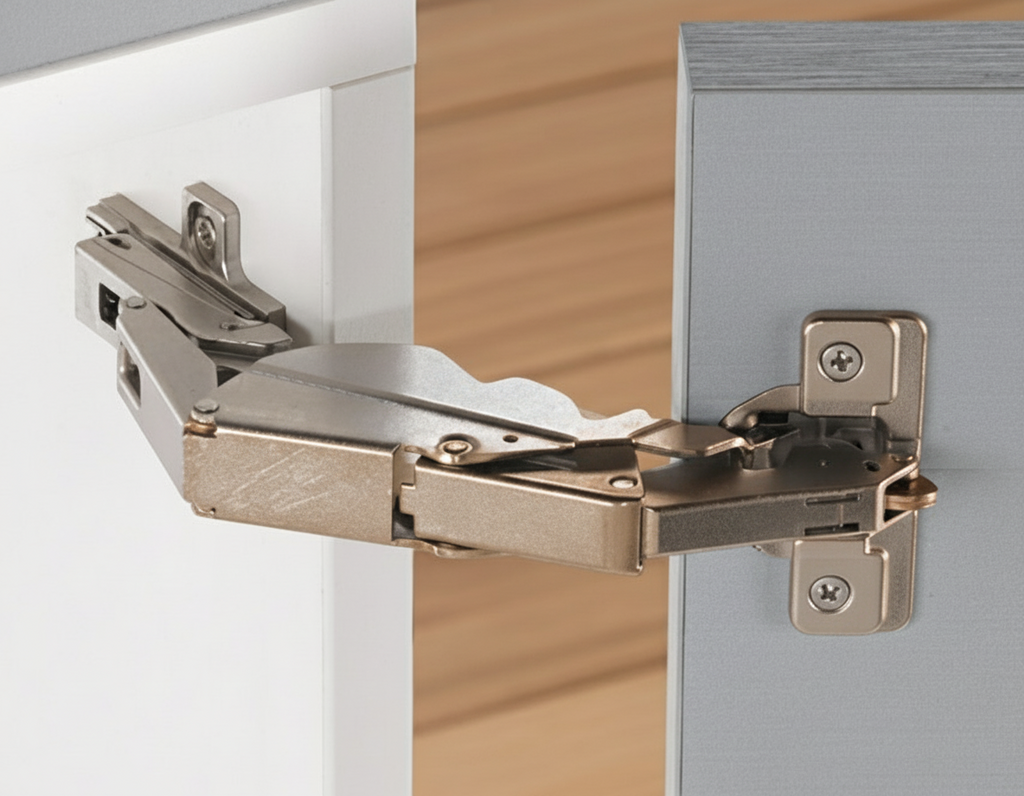

Product: HAFELE Salice 155° Hinges SERIES 200 - Full Overlay (Soft Close)

Feature:

• Material : Zinc-alloy (cup) ; Steel (hinge arm)
• Finish : Nickel-plated
• Opening Angle : 155°
• Adjustment : Lateral adjustment continuously from –1.5 mm to +4.5 mm Height adjustment from –2 mm to +2 mm Depth adjustment with SALICE A mounting plates +2.8 mm with SALICE SM mounting plates from –0.5 mm to +2.8 mm Zero protrusion at 90º on full overlay mounting
• Drilling Pattern Options: 48/6 ; 45/9.5 ; 52/5.5
• Minimum Door Thickness : 16mm
• Minimum Drilling Depth : 13.5mm
• Made in Italy

Please note: This does not come with Mounting plate. They are sold separately.
