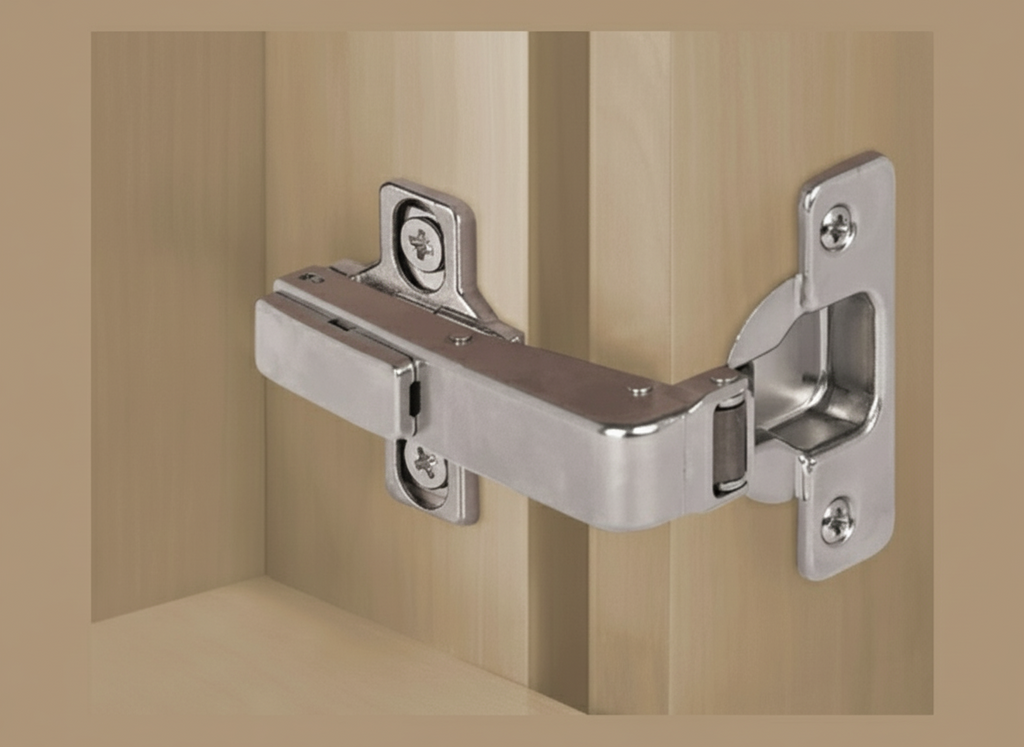

HAFELE Salice 94° Blind Panel Hinges - Soft Close

Feature:

• Material : Zinc-alloy (cup); Steel (hinge arm)
• Finish : Nickel-plated
• Minimum Drilling Depth : 12.5mm
• Adjustment : Side Adjustment -1.5 to 4.5mm; Height Adjustment -/+2mm; Depth Adjustment -0.5 to 2.8mm
• Drilling Pattern Options: 48/6 ; 45/9.5 ; 52/5.5
• Minimum Door Thickness : 16mm
• Made in Italy

Please note: This does not come with Mounting plate. They are sold separately.
