Hettich Intermat 110° Hinges (Non Softclose)

$4.50

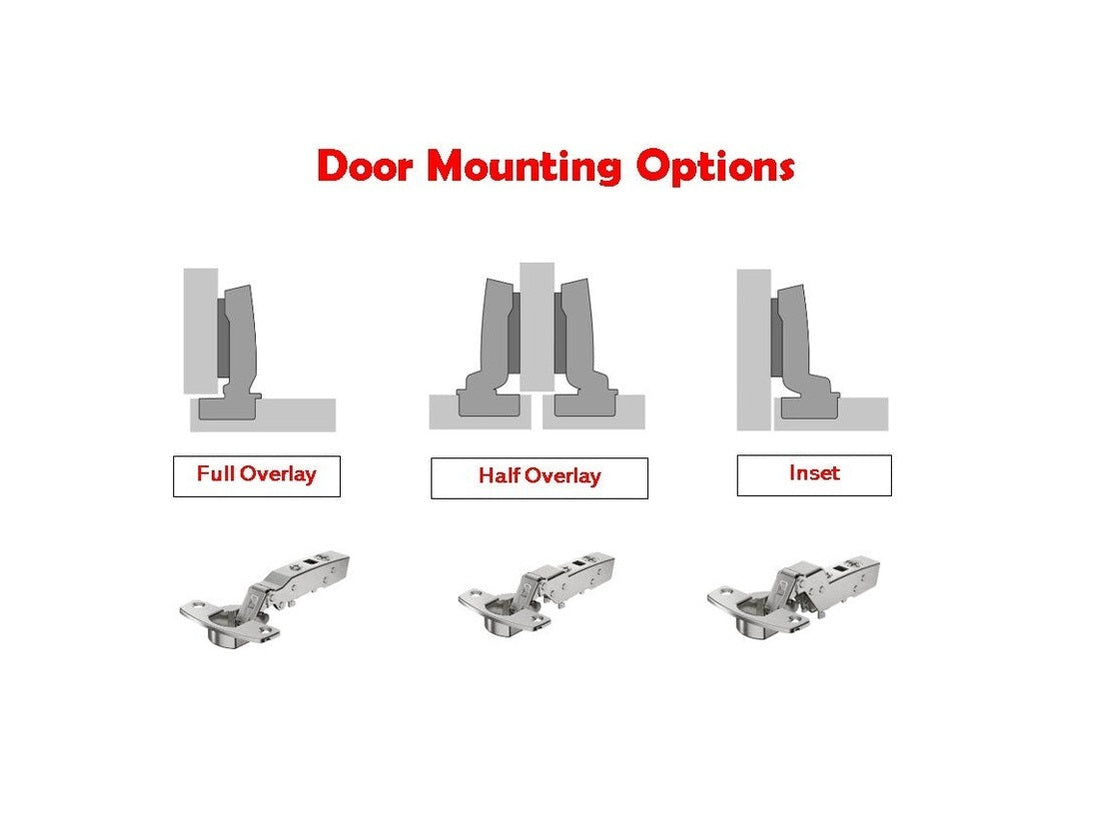

Mounting Options
Installation Options

Hettich Intermat 110° Hinges (Non Softclose)



Product Information:

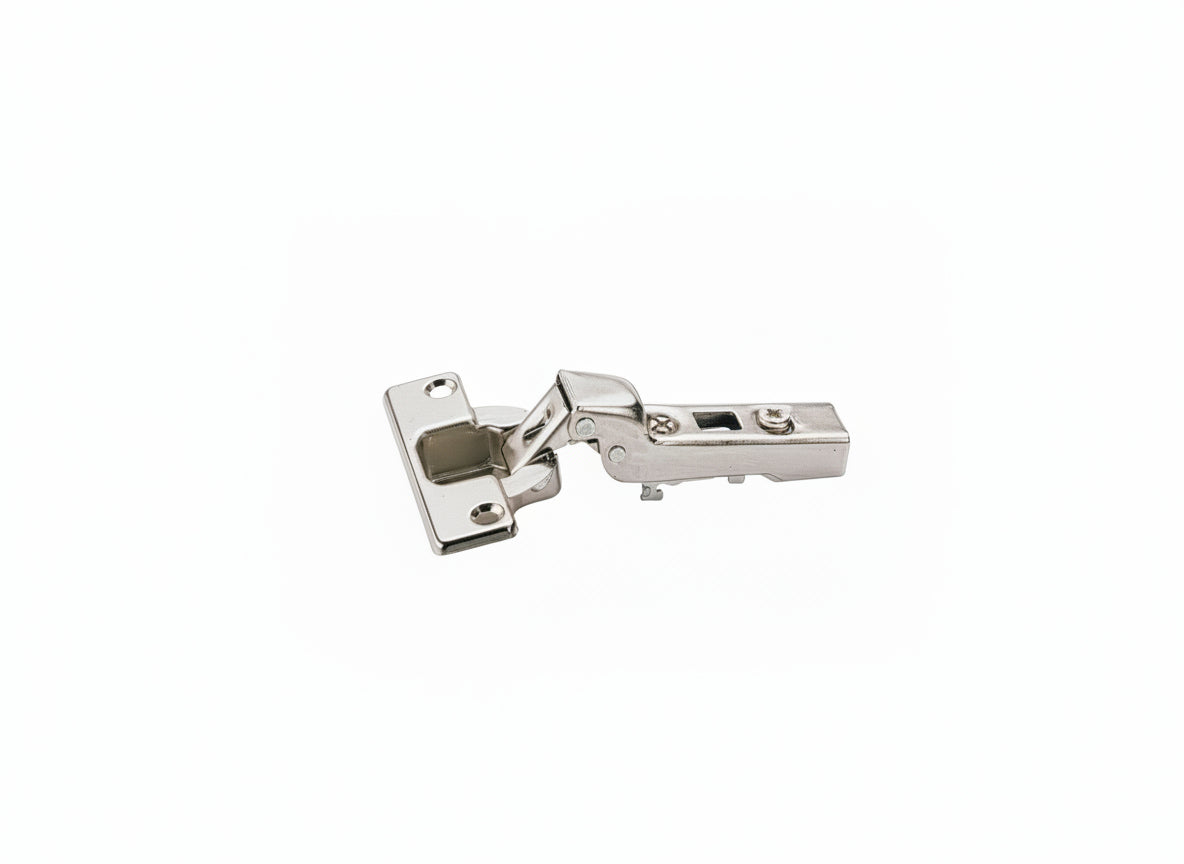

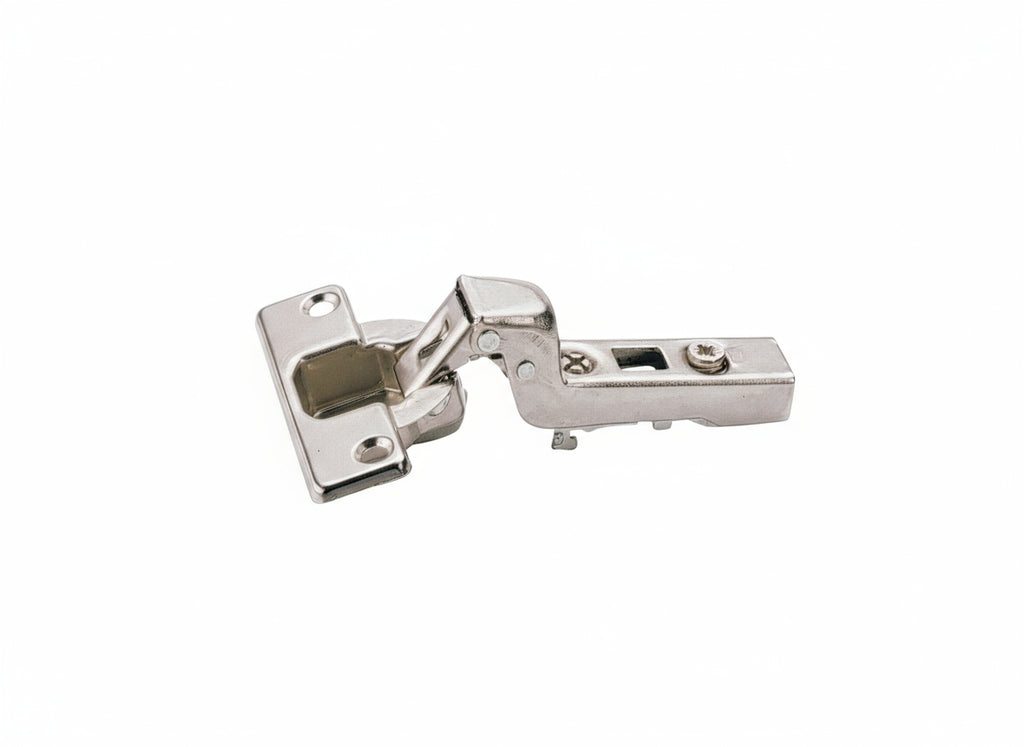

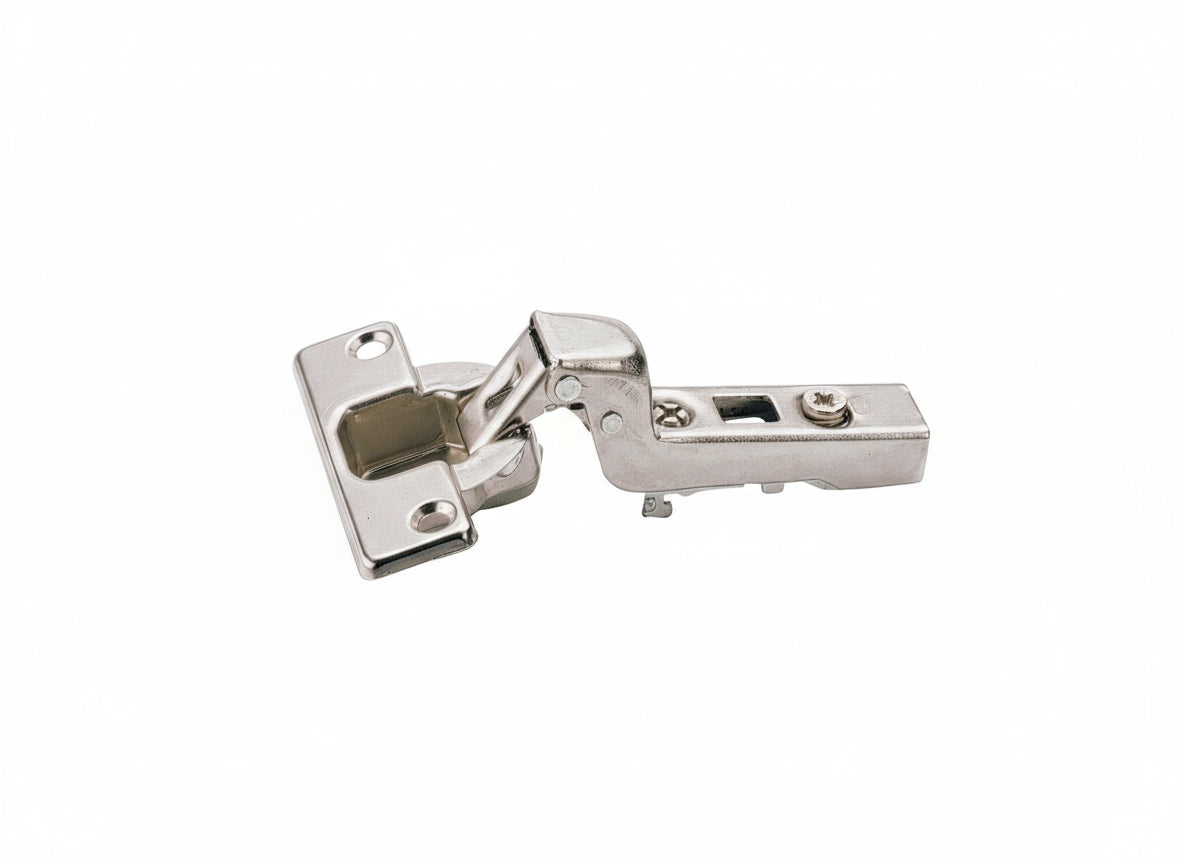

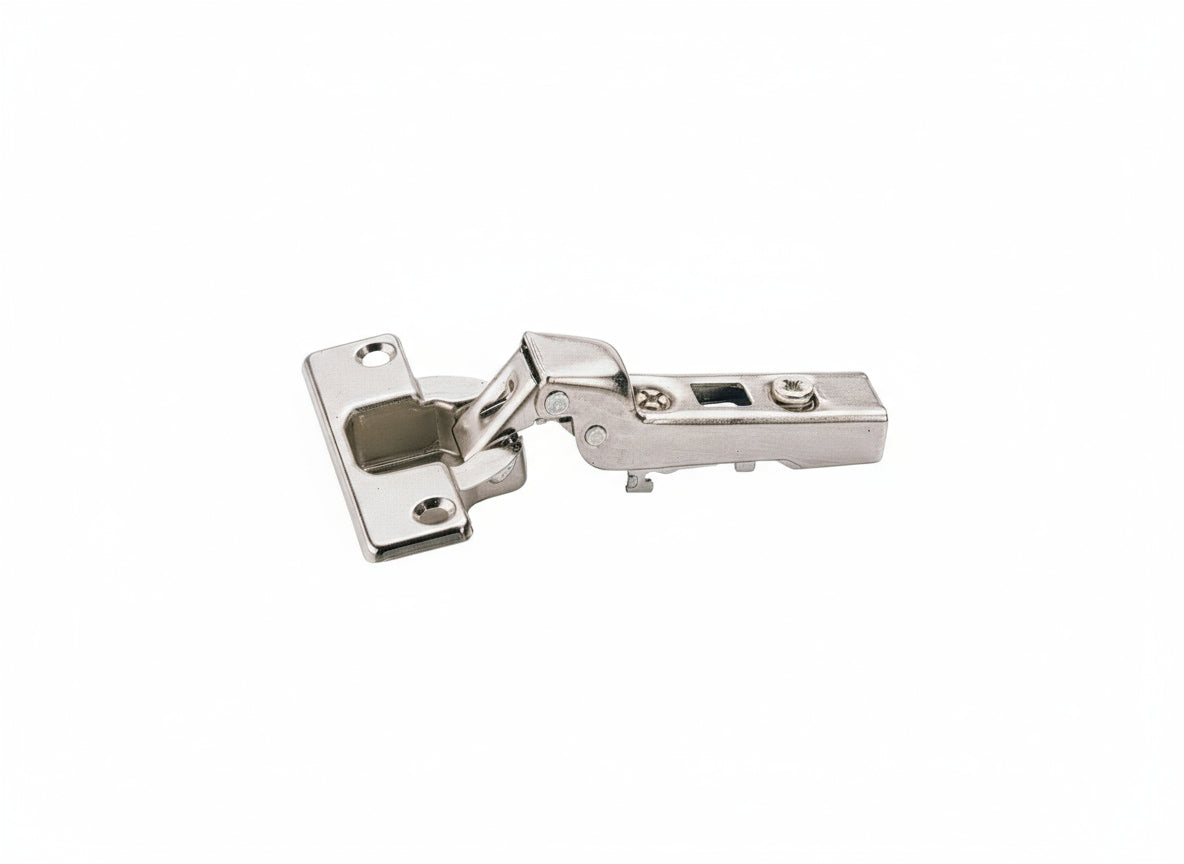

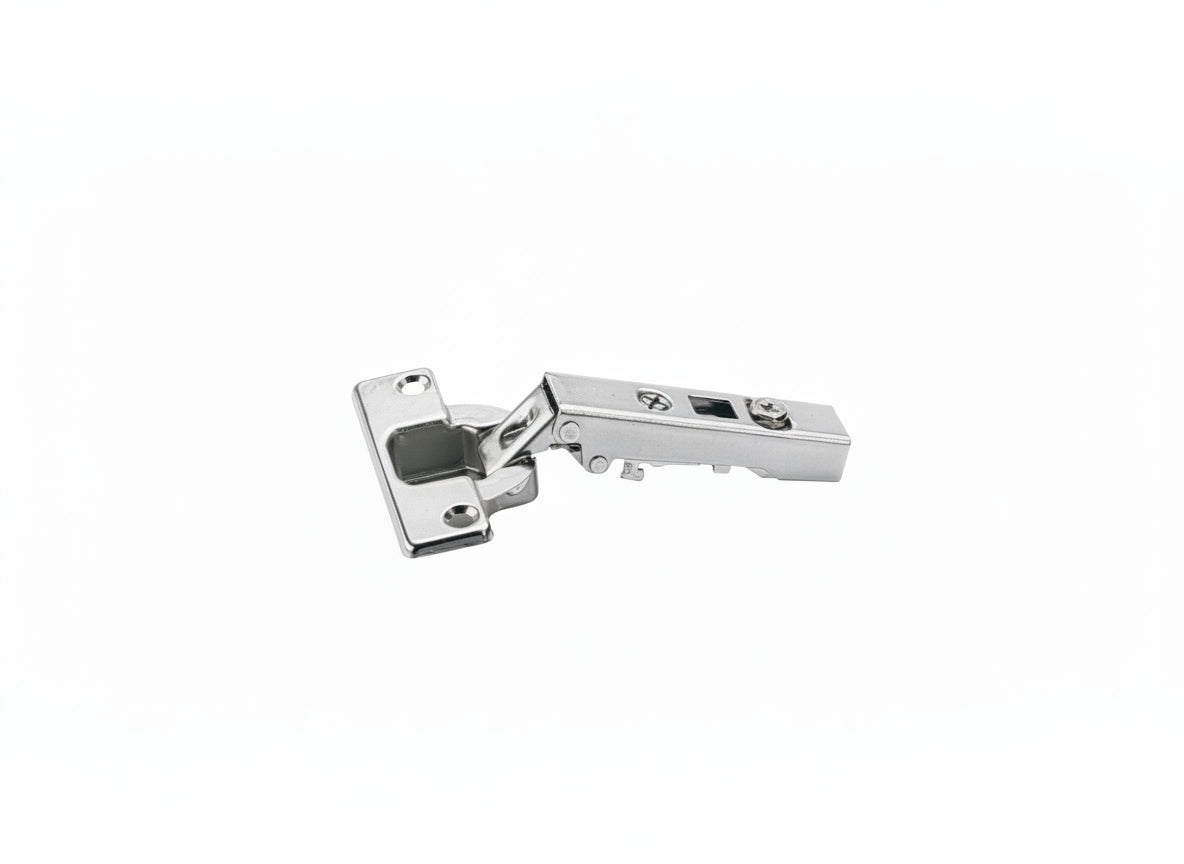

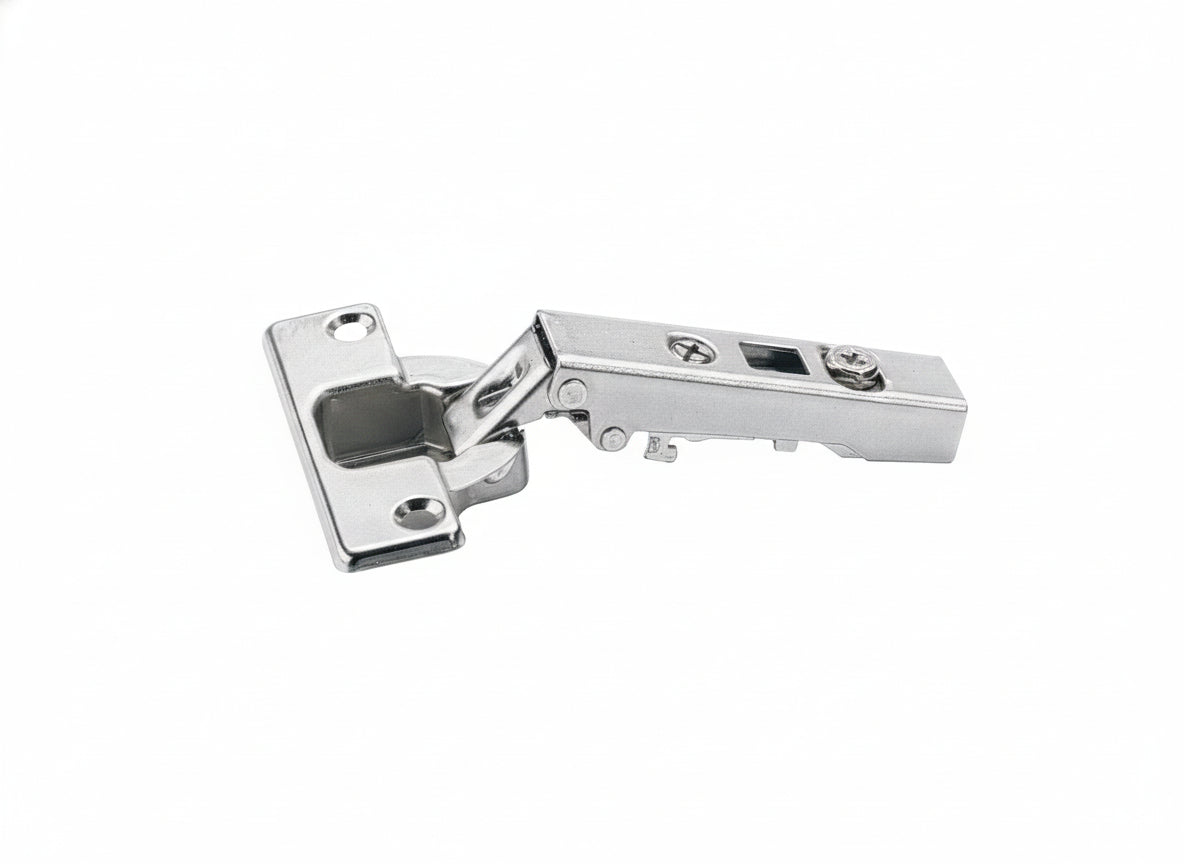

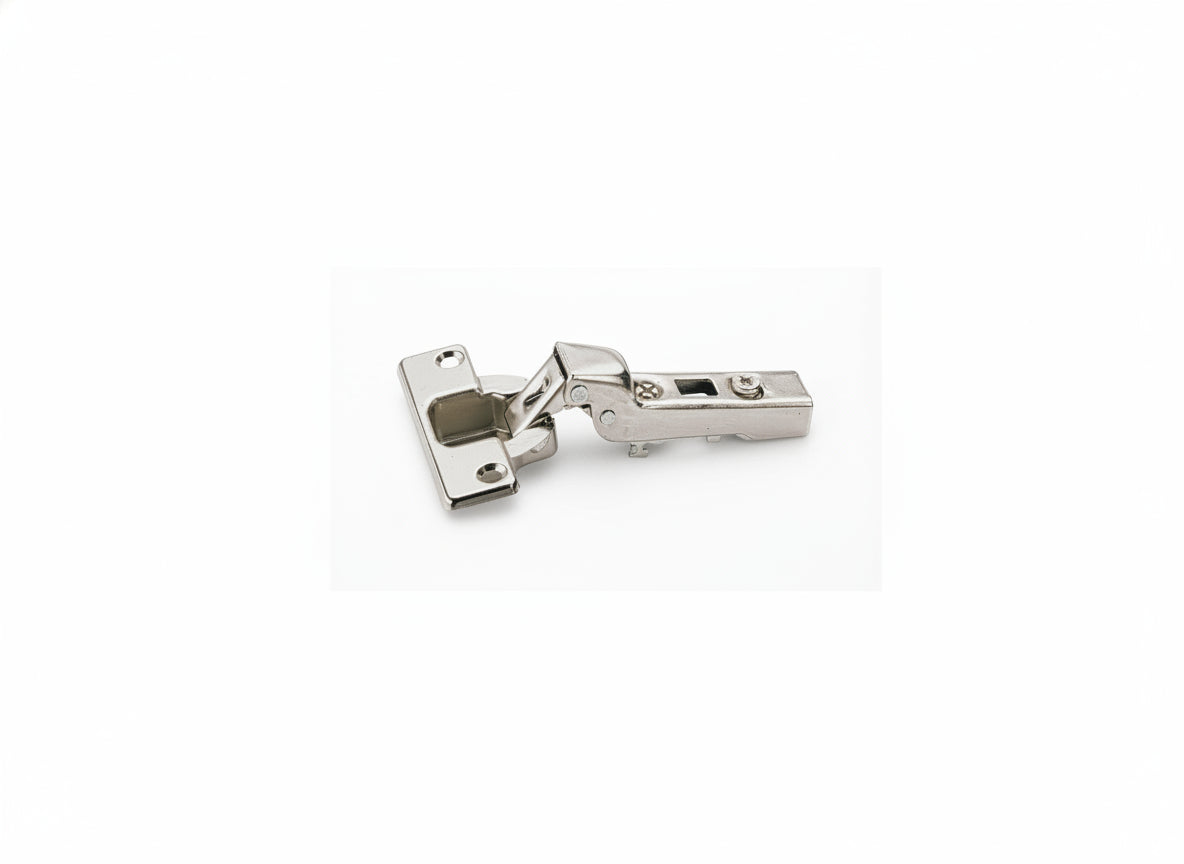

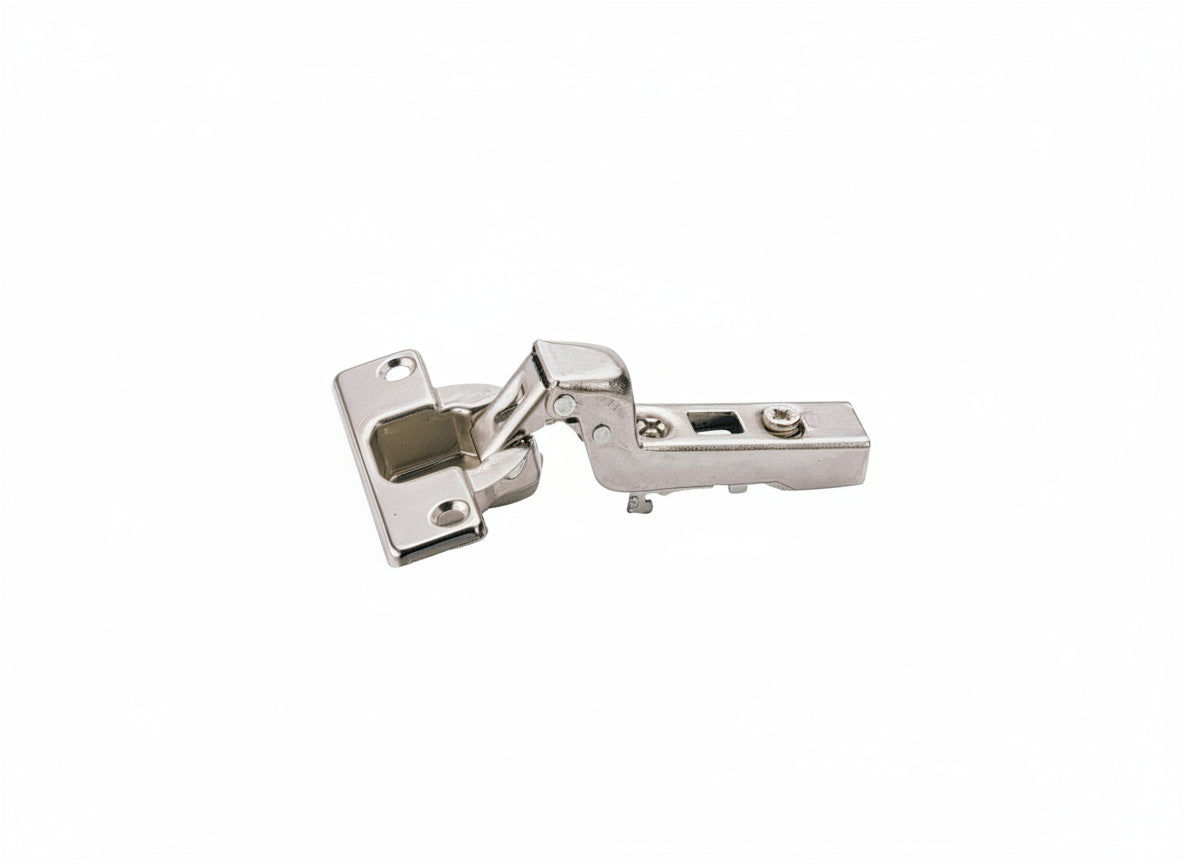

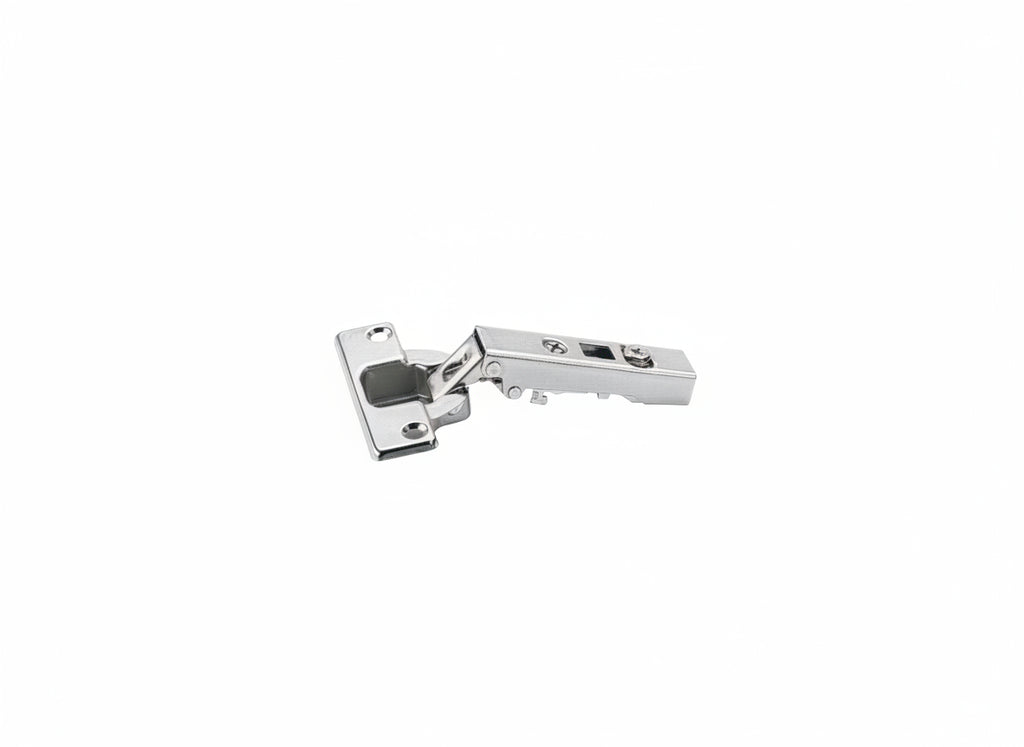

  • 110° Intermat hinge
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 25 mm

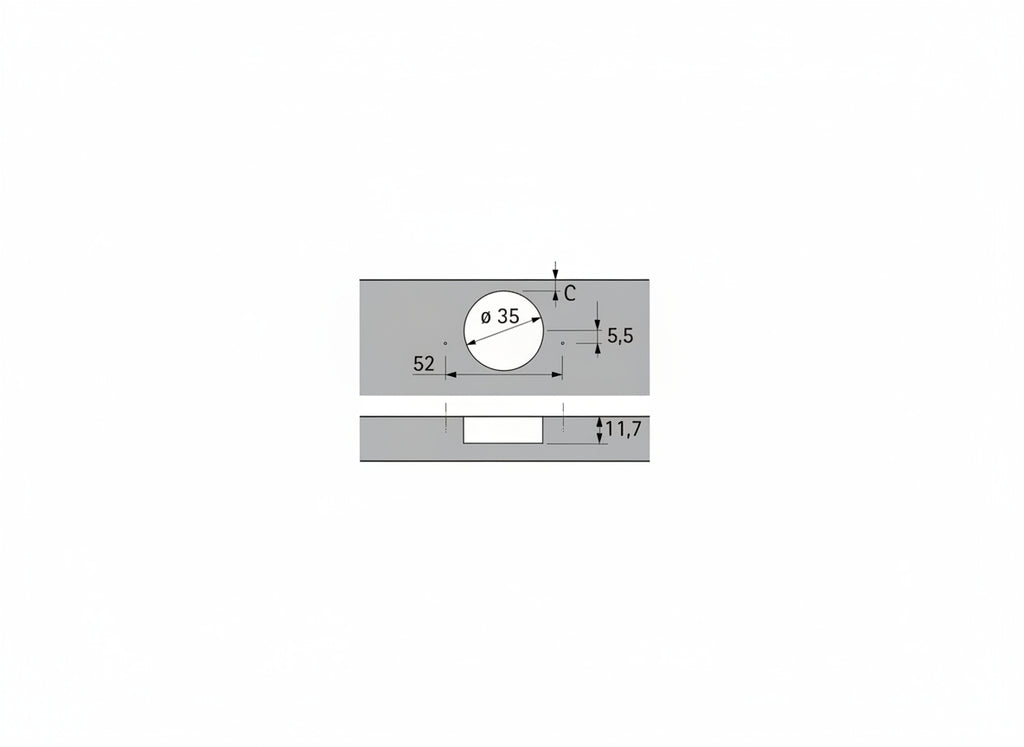

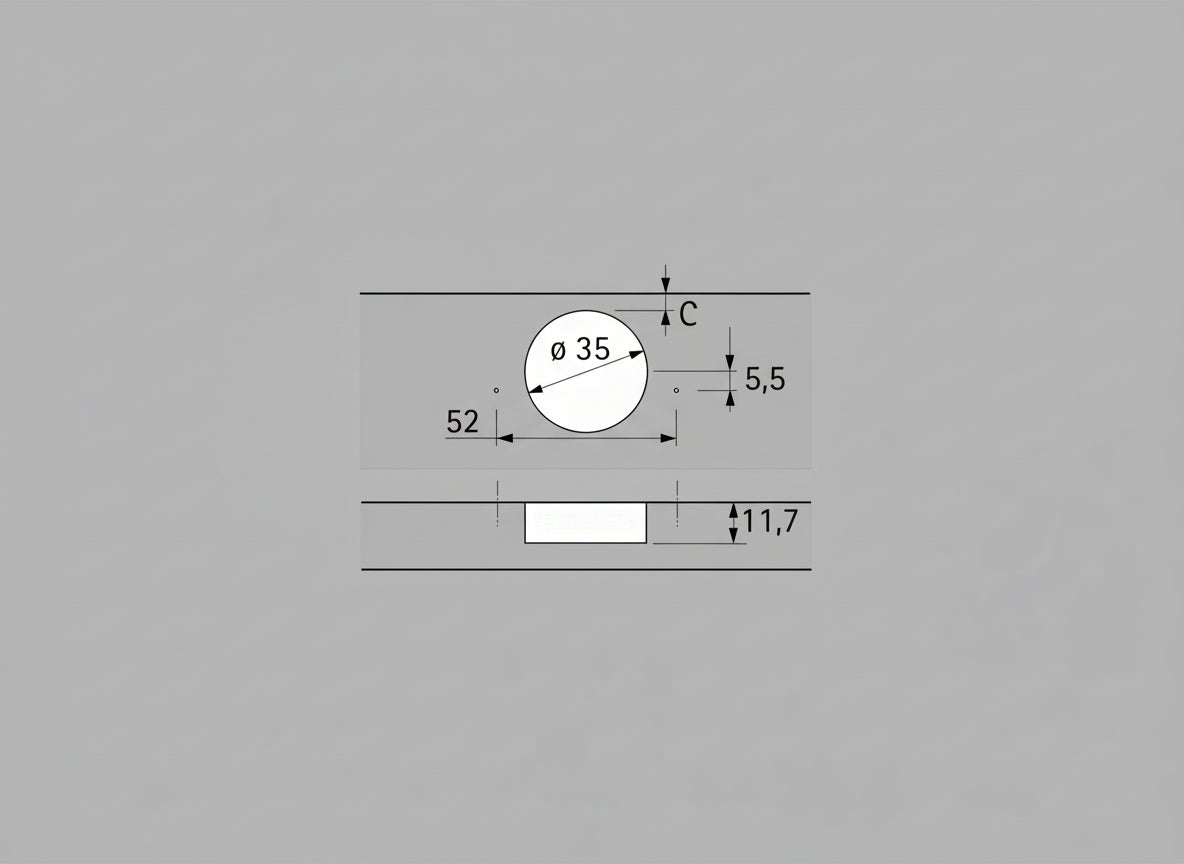

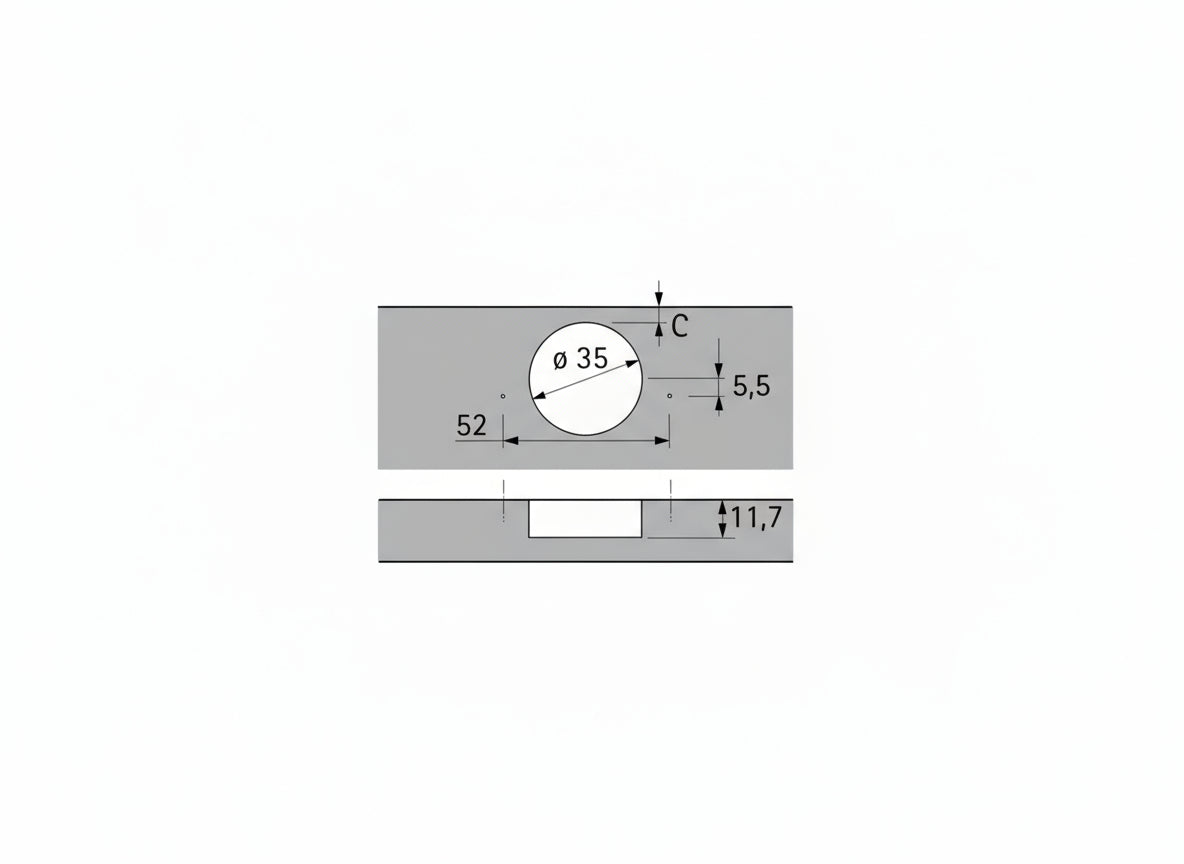

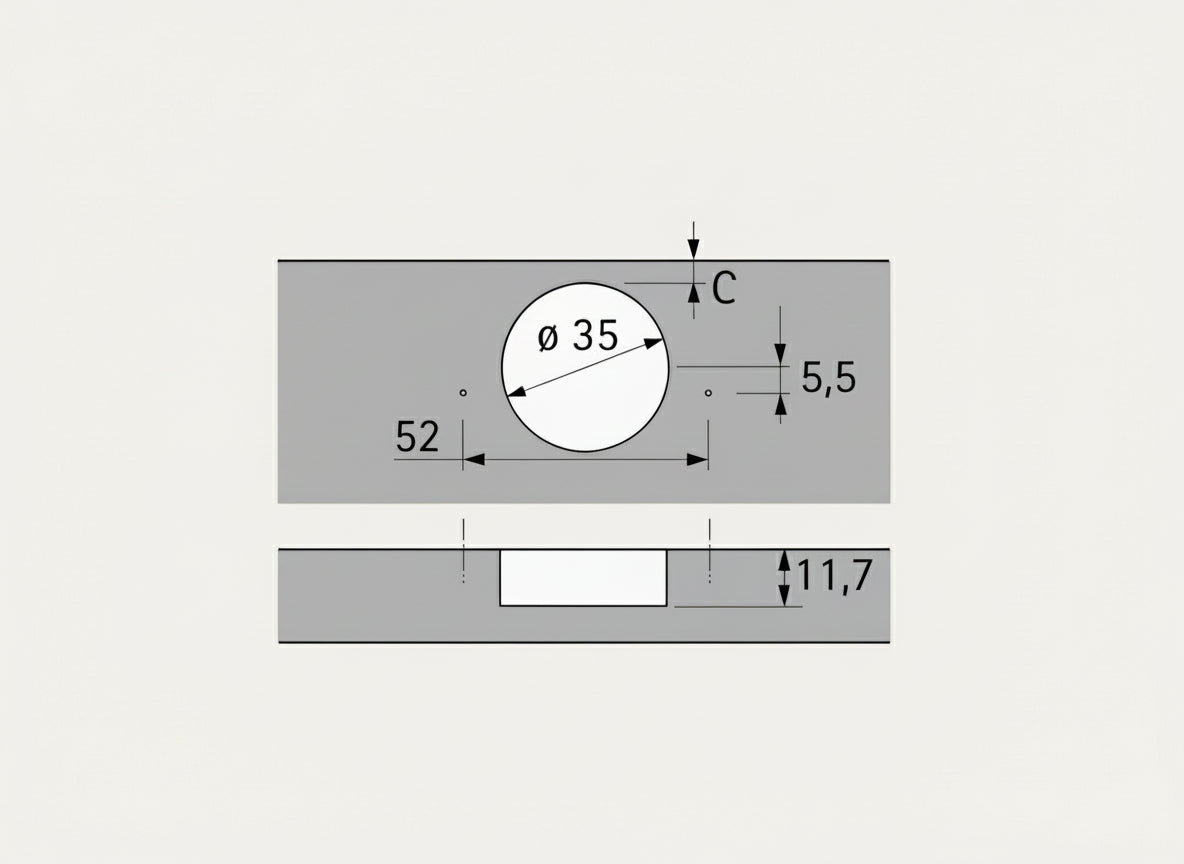

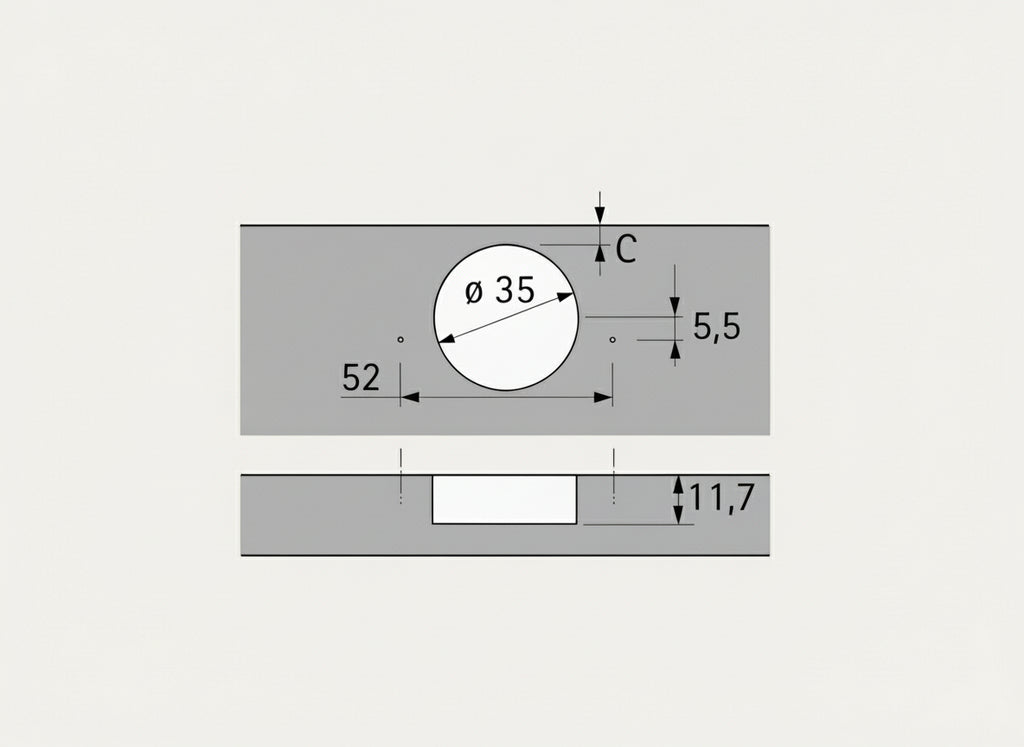

  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 11.6 mm

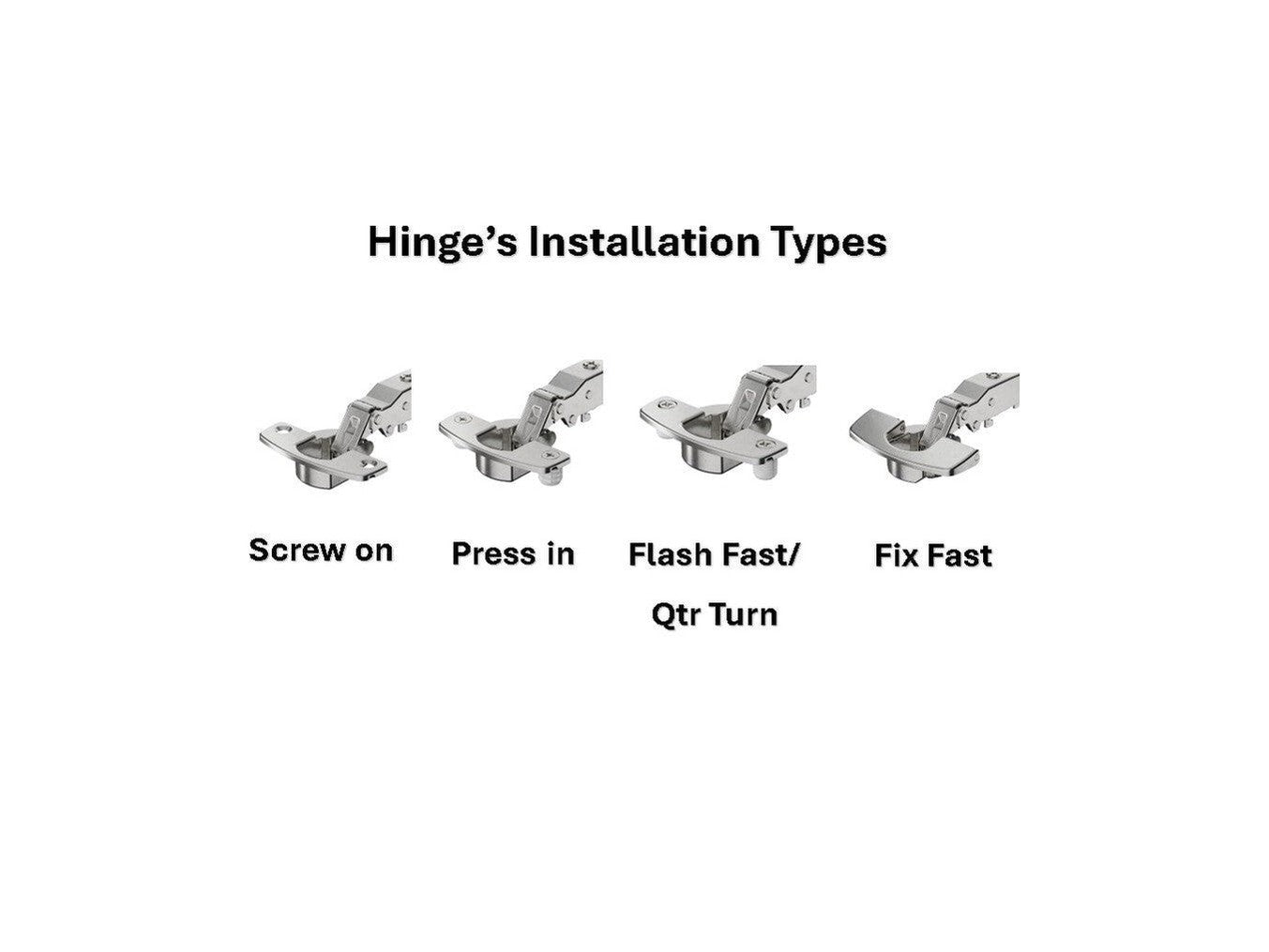

  • Installation for Screwing on / Press in (comes with white plastic parts on screws)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +2.5 mm / -1.5 mm
  • Height adjustment at mounting plate
  • steel nickel plated

Please note: This does not come with Mounting plate. They are sold separately.
