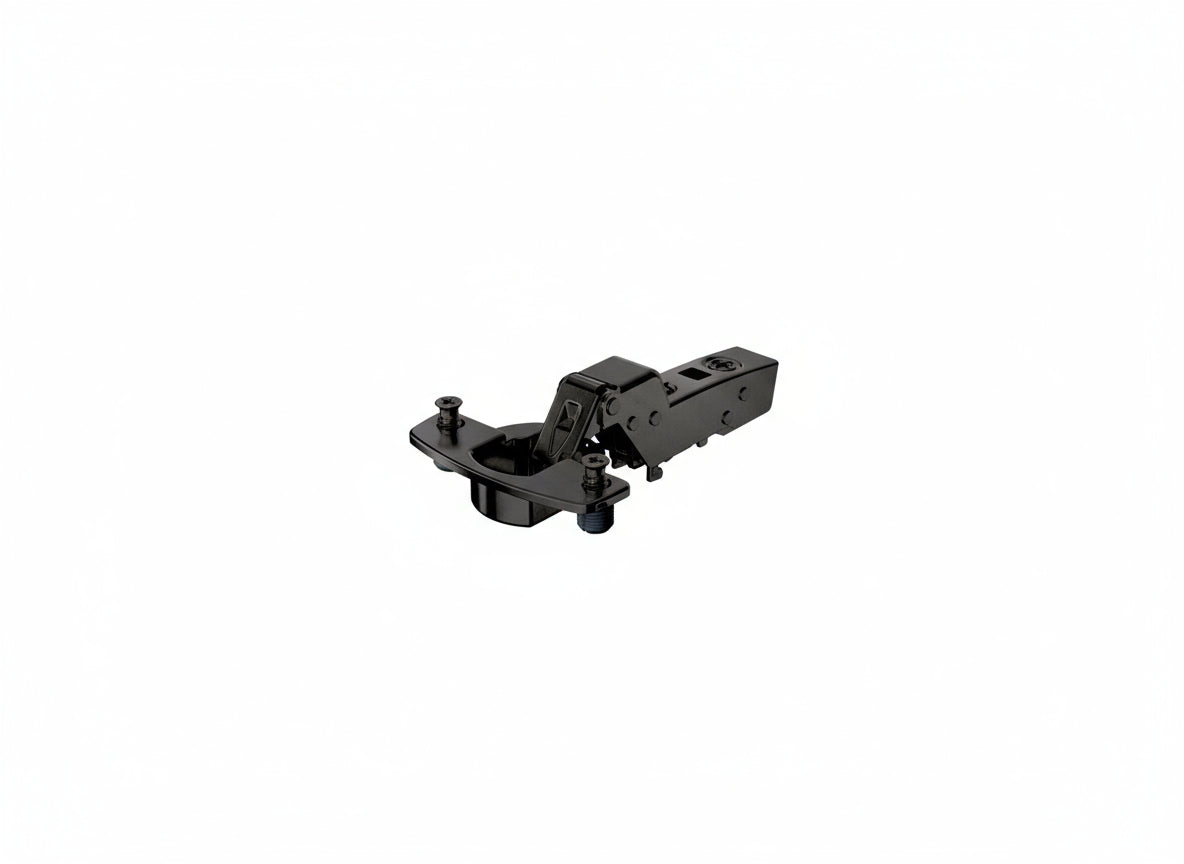

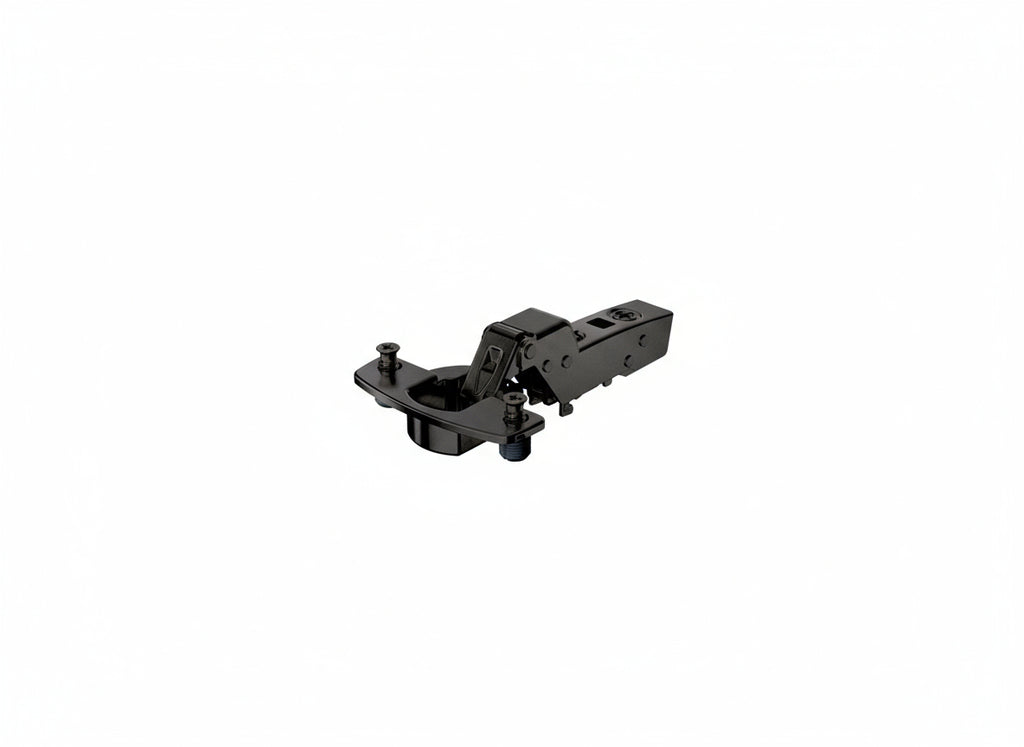

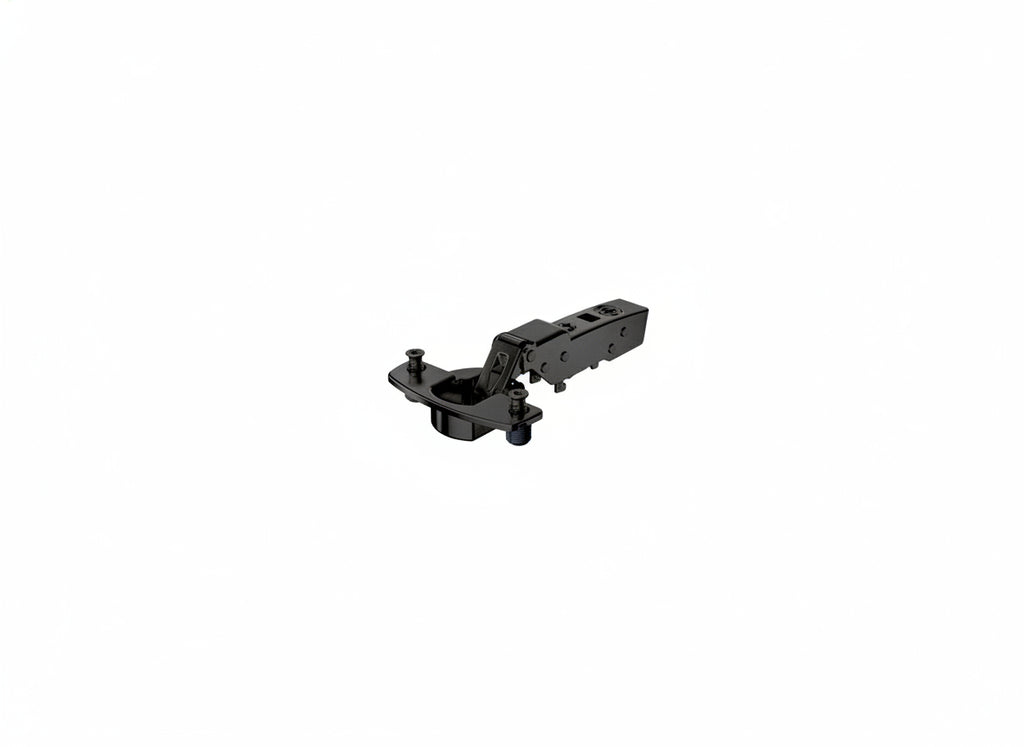

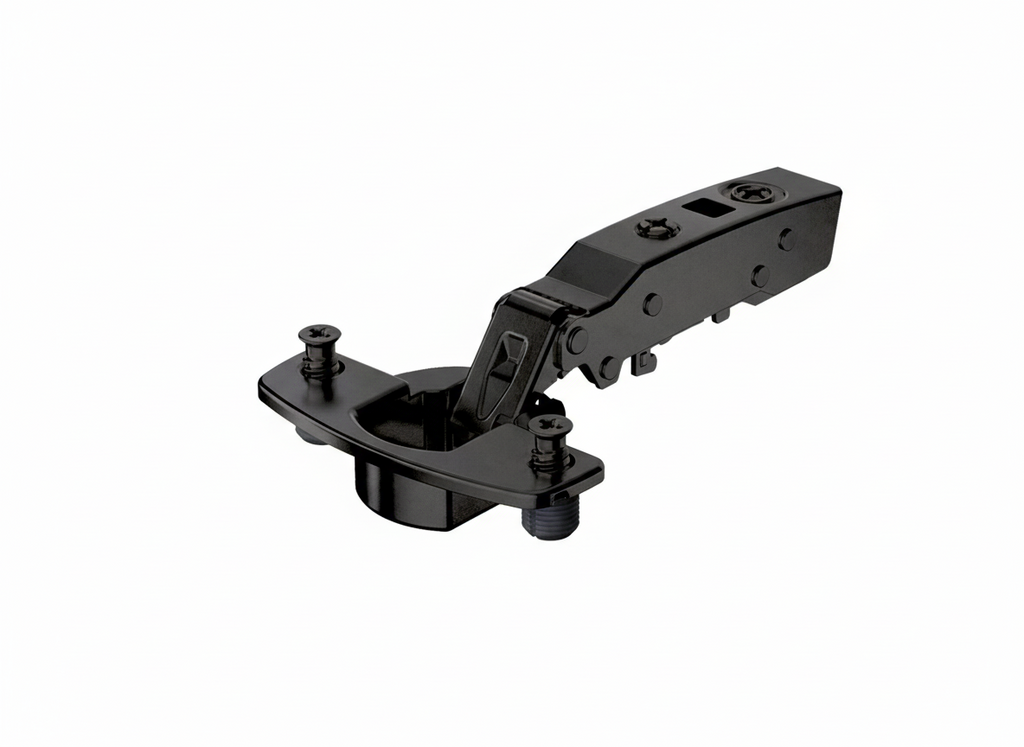

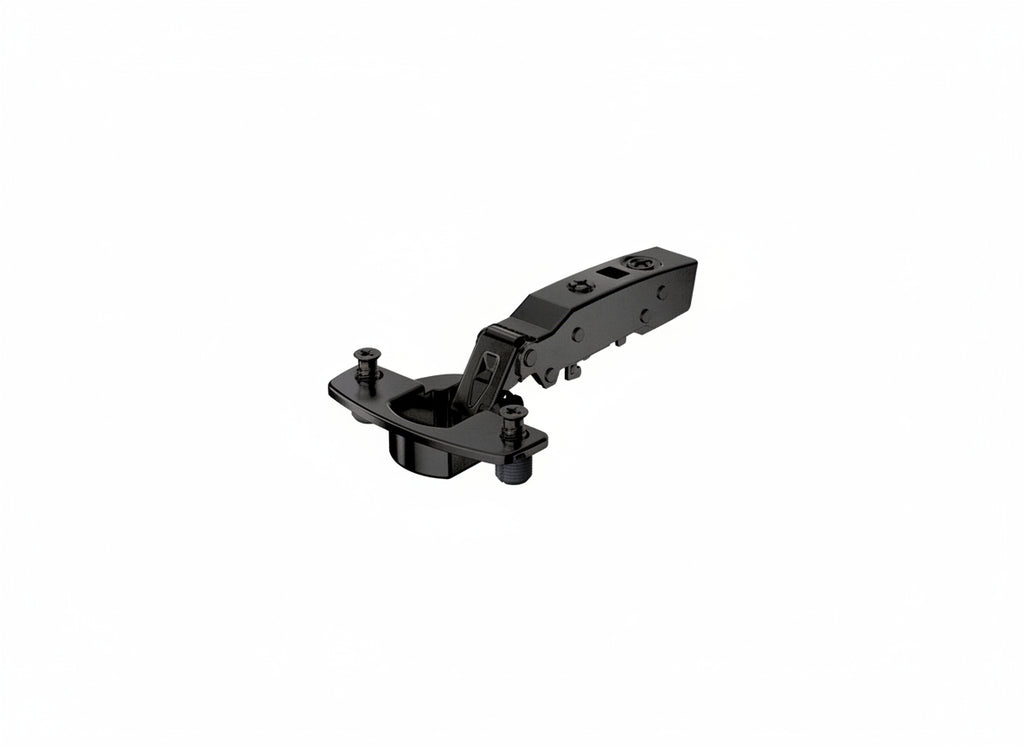

Hettich Sensys 110° hinge - Black

Full Overlay Hinges

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle 110°
• For door thickness 15 - 24 mm
• Door mounting option overlay
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Installation for screwing on / with expanding sockets
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel in obsidian black

Product Code: For Screwing on 9091738 ; With Expanding Sockets 9117735

Half Overlay Hinges

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle 110°
• For door thickness 15 - 24 mm
• Door mounting option half overlay
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Installation for screwing on / with expanding sockets
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel in obsidian black

Product Code: For Screwing on 9091739 ; With Expanding Sockets 9091772

Inset Hinges

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle 110°
• For door thickness 15 - 24 mm
• Door mounting option inset
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Installation for screwing on / with expanding sockets
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel in obsidian black

Product Code: For Screwing on 9091740 ; With Expanding Sockets 9091773

Please note: This does not come with Mounting plate. They are sold separately.
