HETTICH Sensys 110° Hinges Full Overlay - FOR THIN DOOR (from 10mm)

$8.50
Installation Types

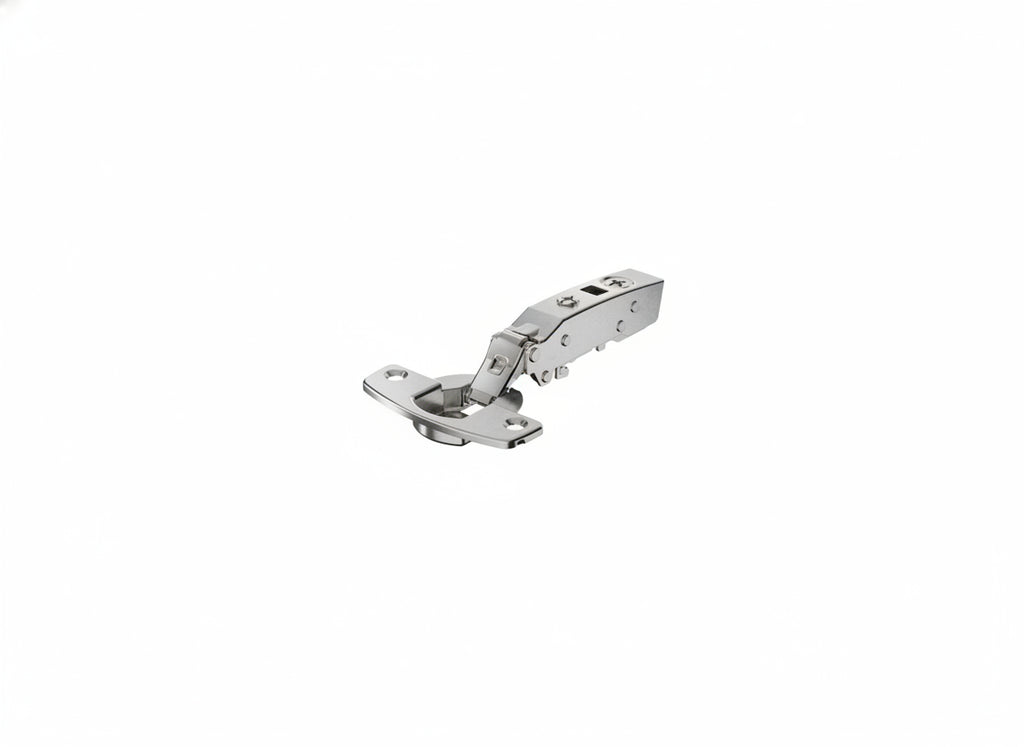

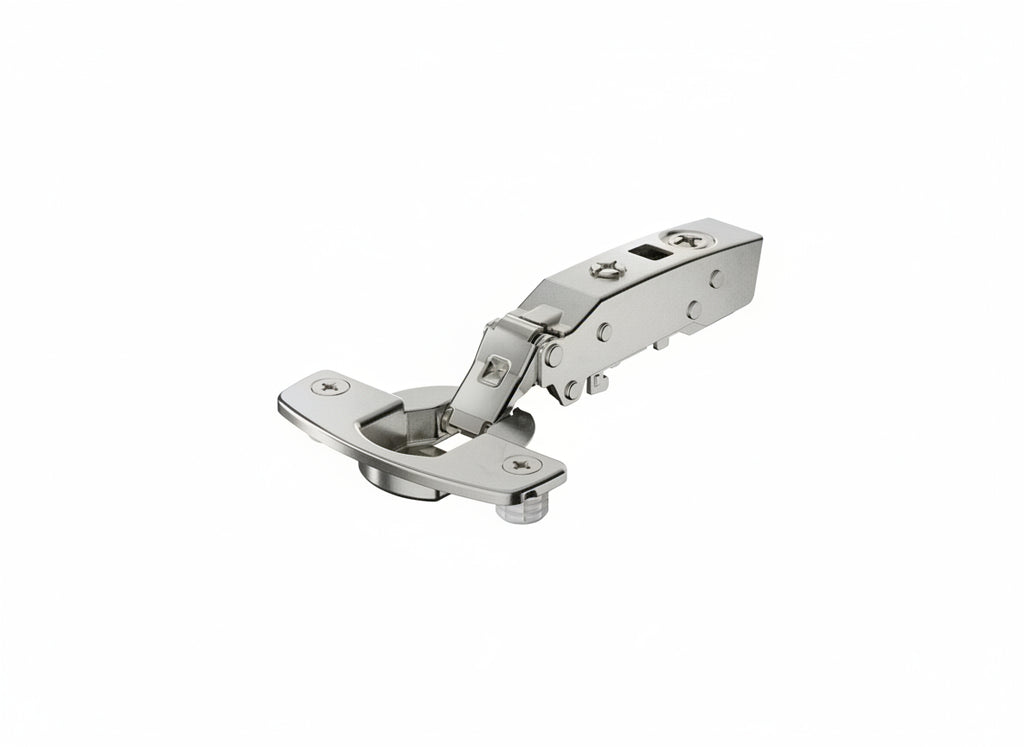

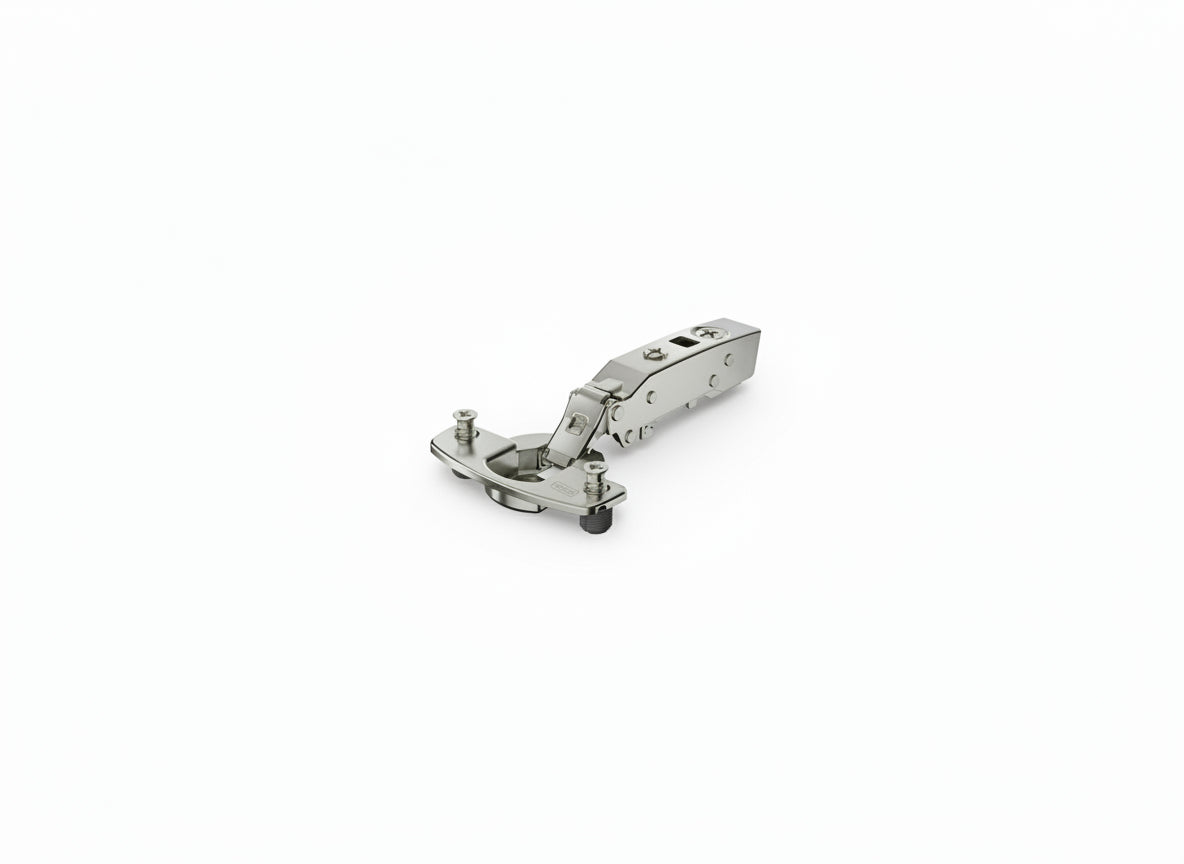

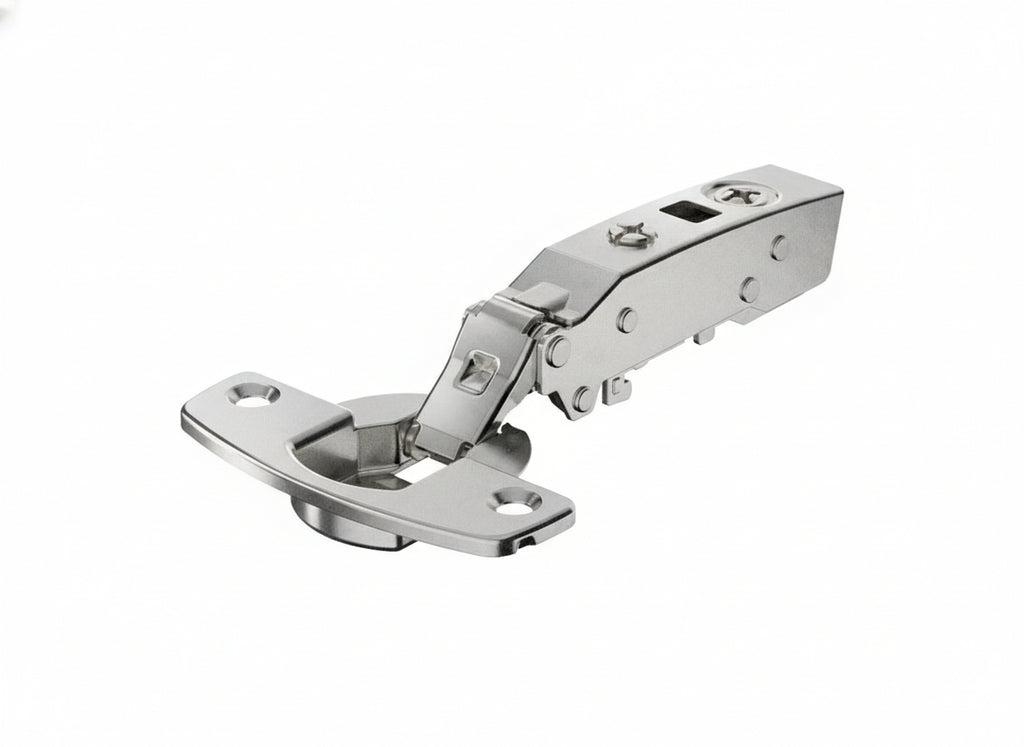

Product: HETTICH Sensys 110° Hinges (Full Overlay) - For Door Thickness from 10mm



Product Information:

  • Sensys thin door hinge, door thickness from 10 mm
  • With integrated Silent System, with self closing feature (Sensys 8646i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 10-19 mm
  • Door mounting option overlay (B 12.5 mm)

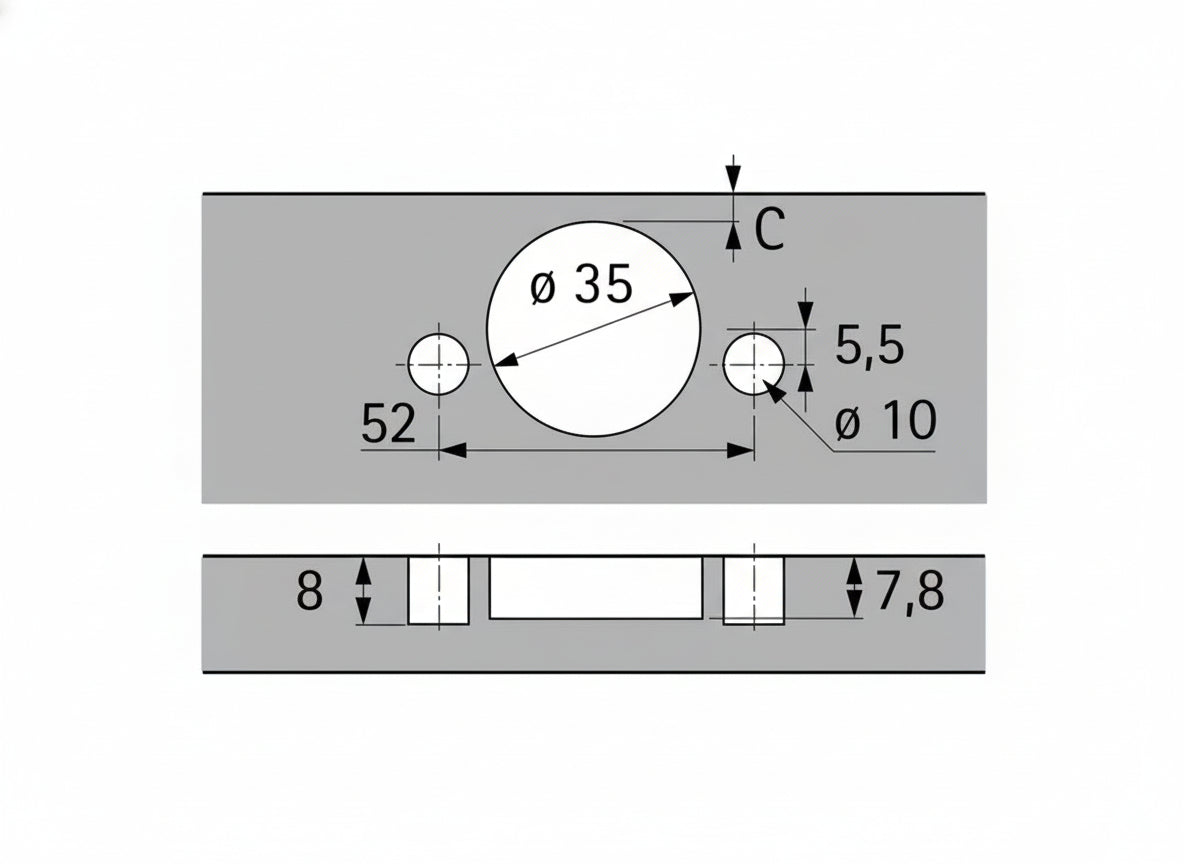

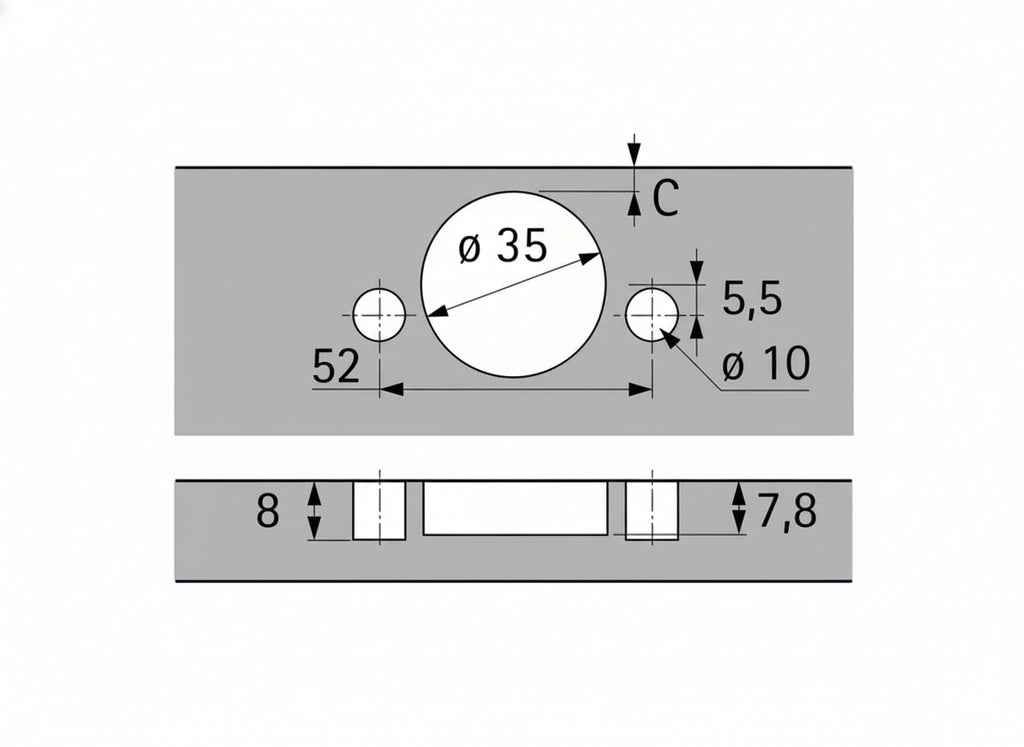

  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 7.8 mm
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated

Please note: This does not come with Mounting plate. They are sold separately.
