Hettich Sensys 165 Degree Hinge (Soft Close) - Full Overlay

Product Code:

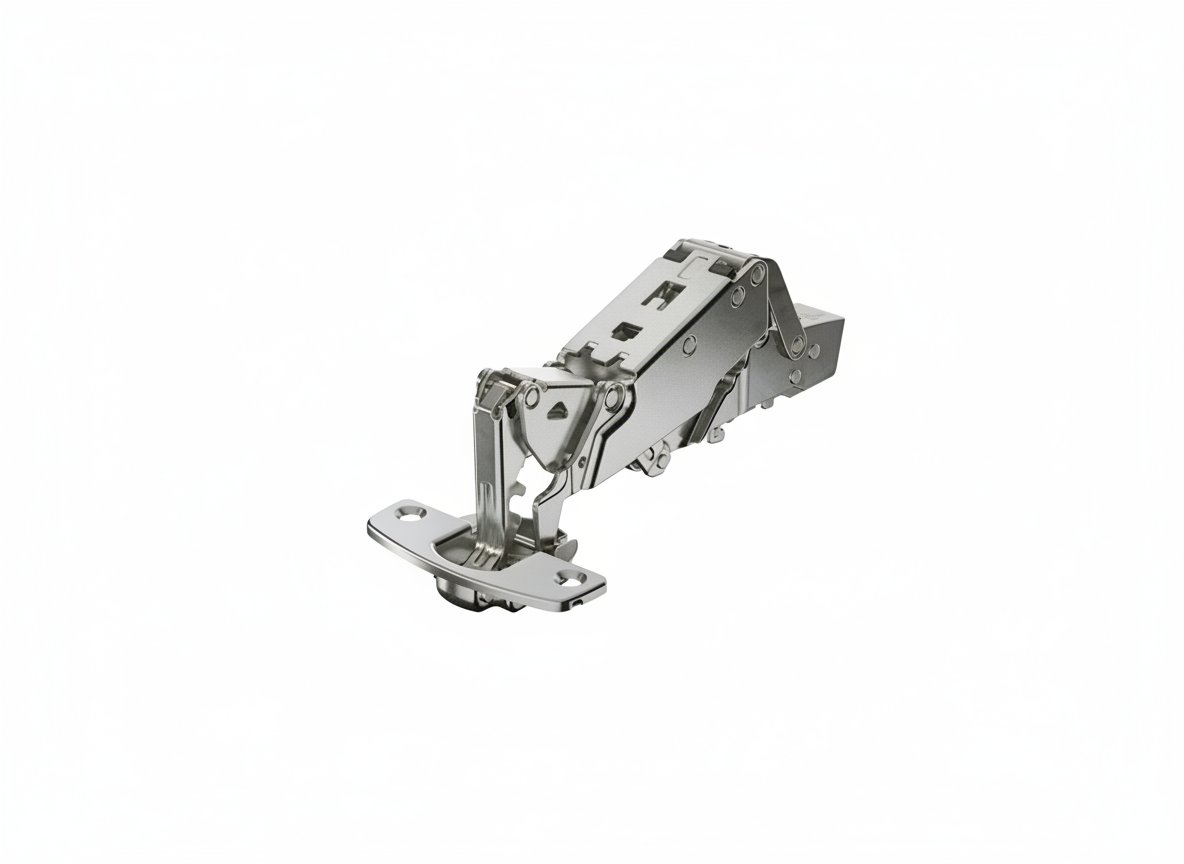

• Screwing on : 9099540

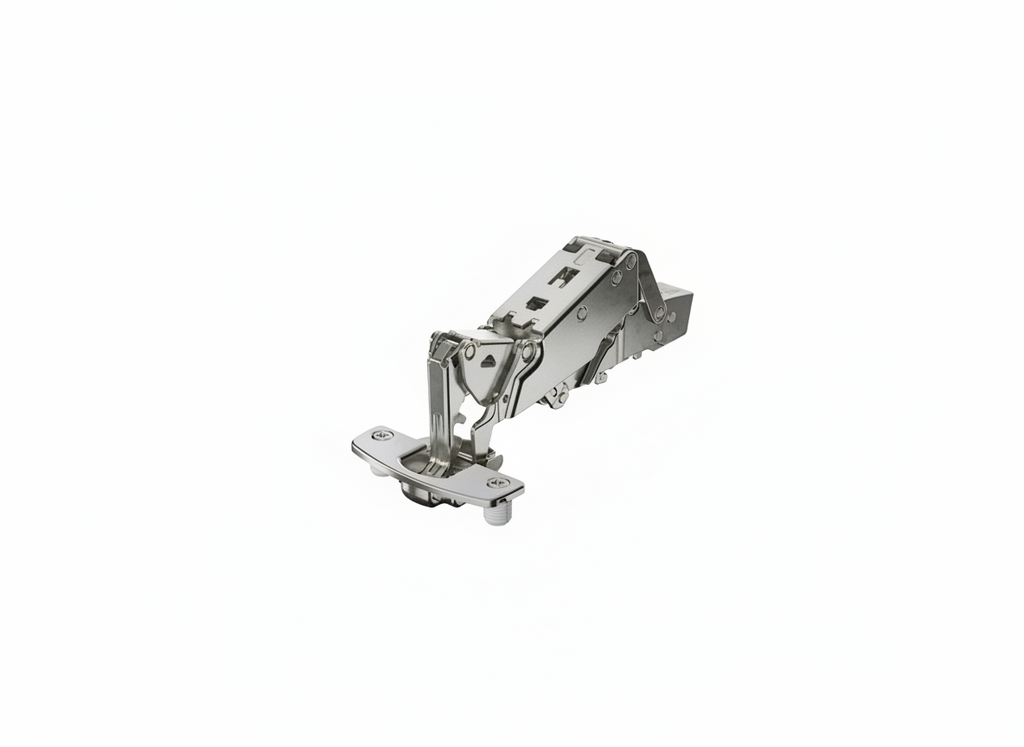

• Pressing in : 9099541

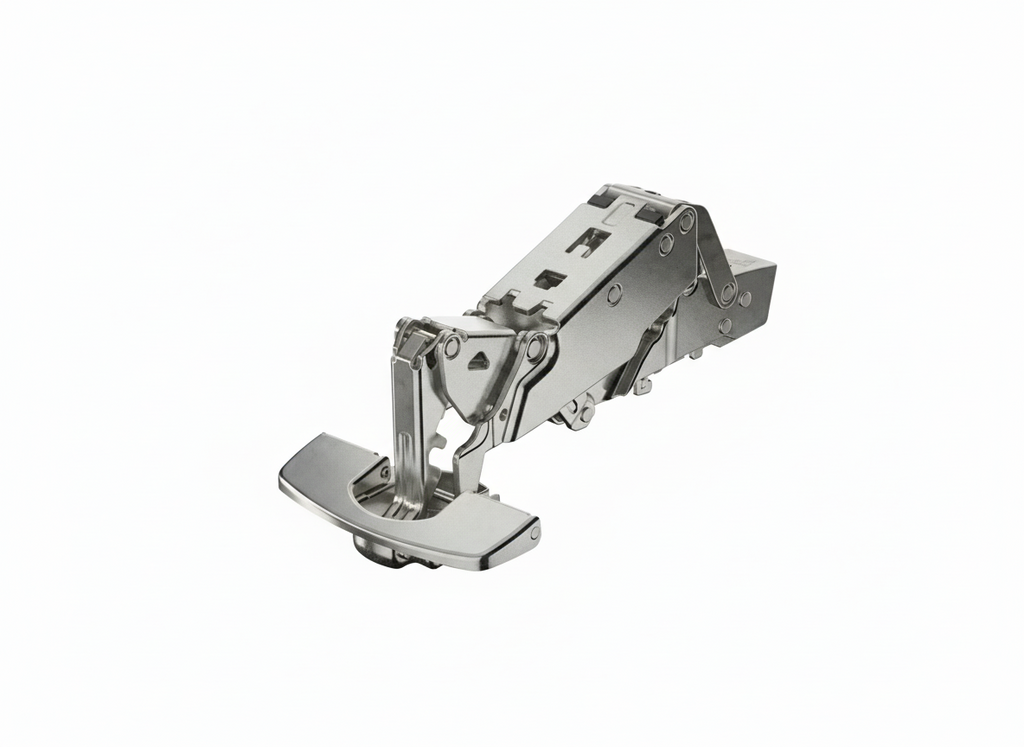

• Fix Fast : 9099543

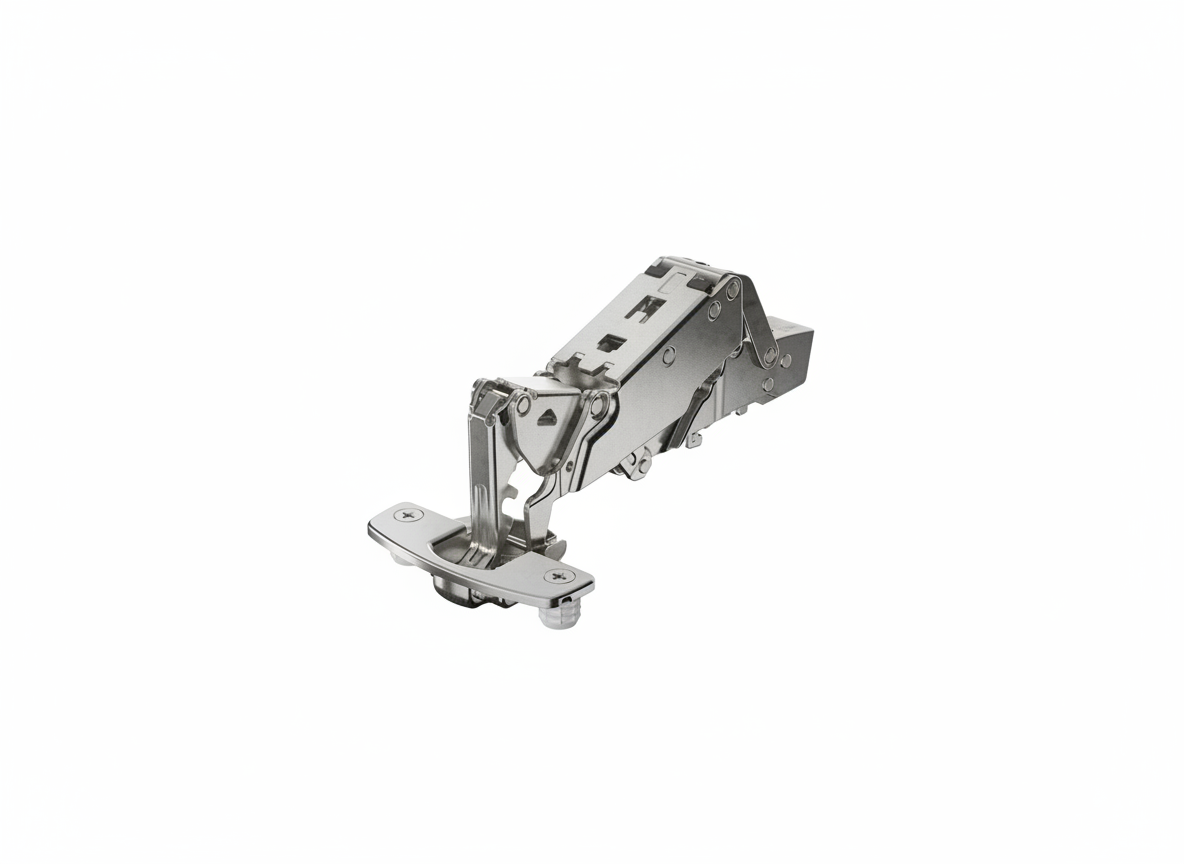

• With Expanding Sockets : 9099542

Feature:

• Sensys wide angle hinge, with zero protrusion
• With integrated Silent System, with self closing feature (Sensys 8657i)
• Quality classification under EN 15570, Level 3
• Opening angle 165°
• For door thickness 15 - 32 mm

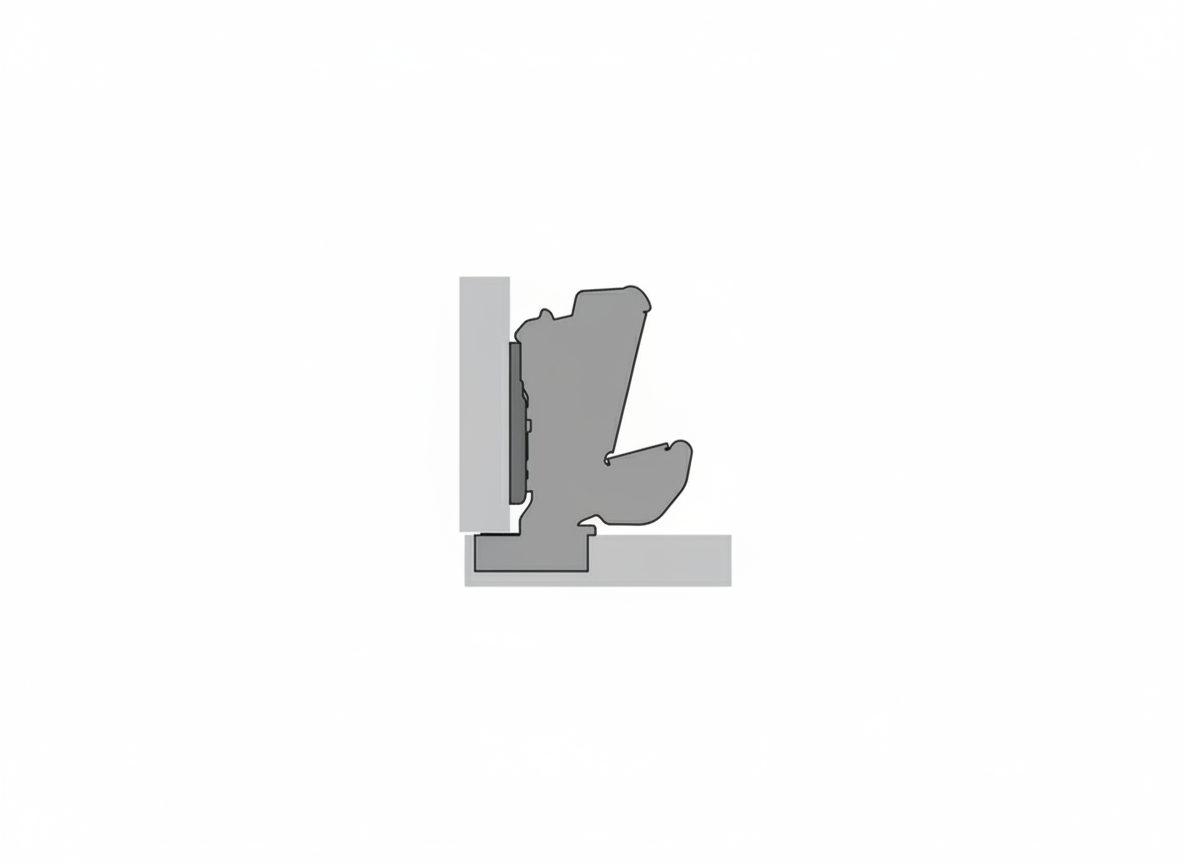

• Door mounting option overlay

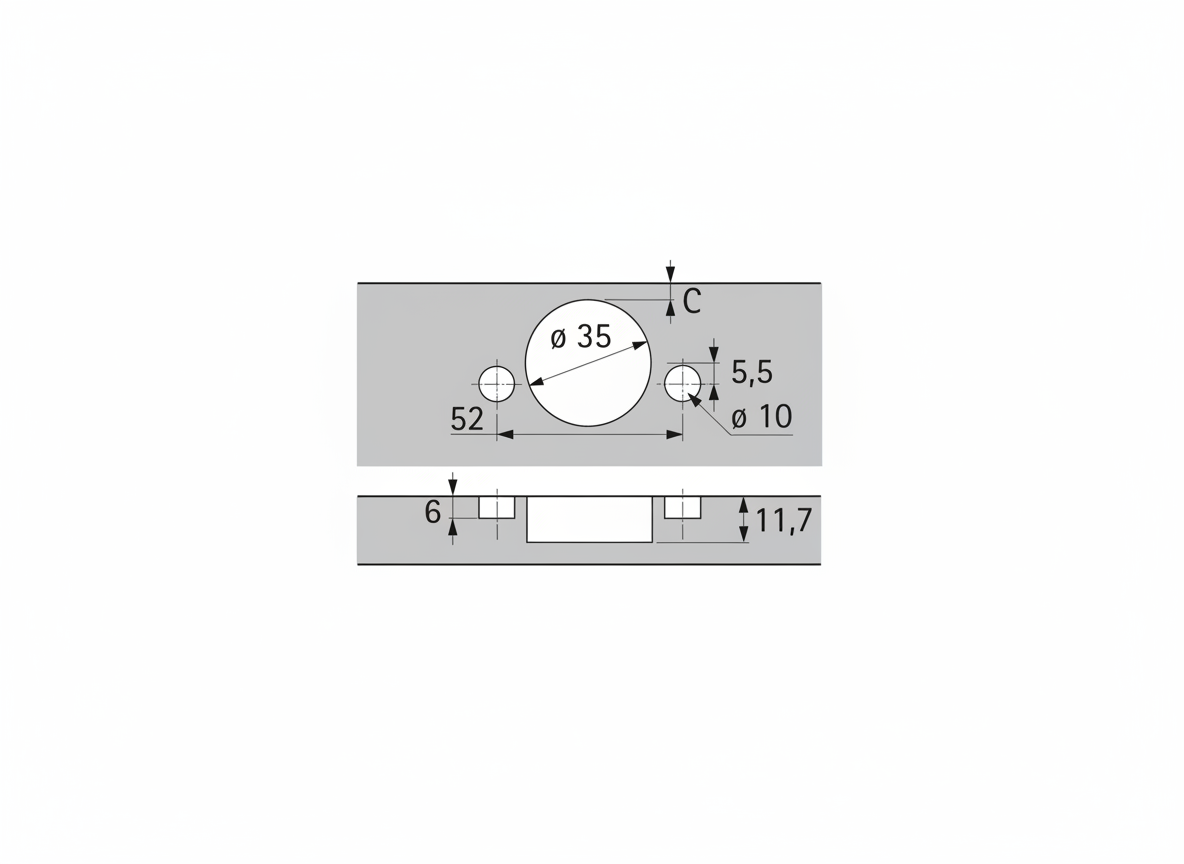

• Drilling pattern TH 52 x 5,5 mm
• Cup depth 11.6 mm
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel / die-cast zinc nickel plated

Please note: This does not come with Mounting plate. They are sold separately.
