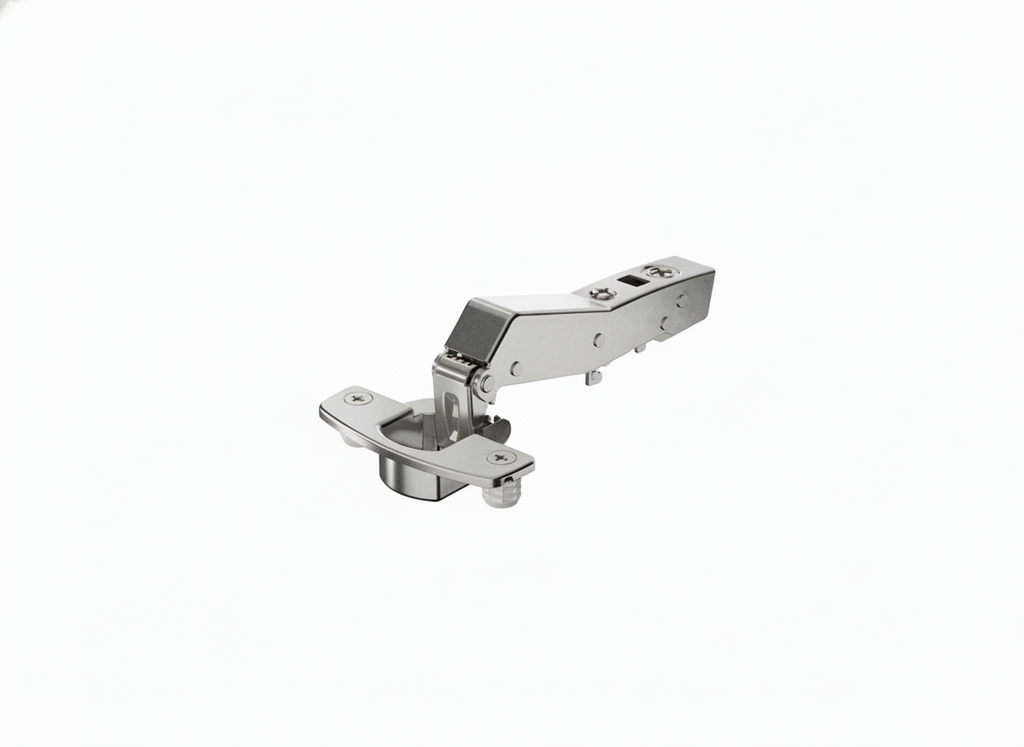

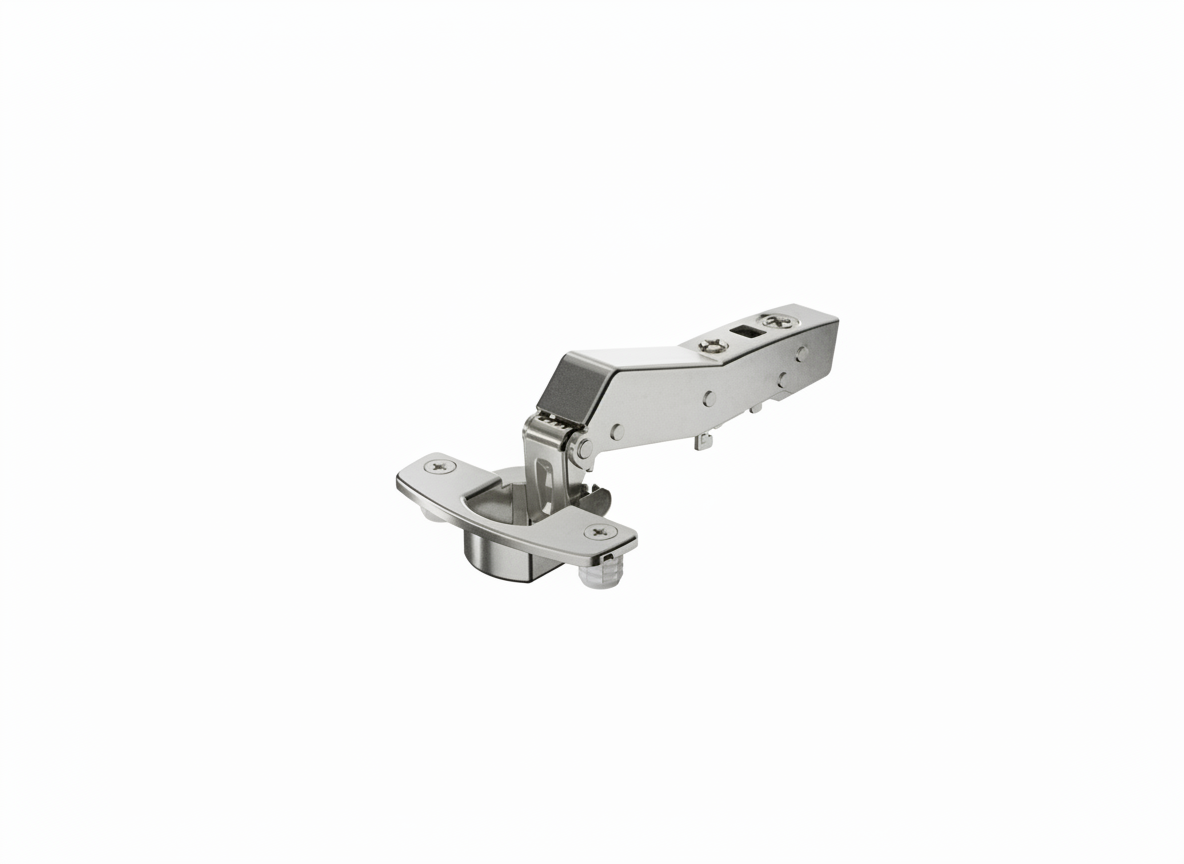

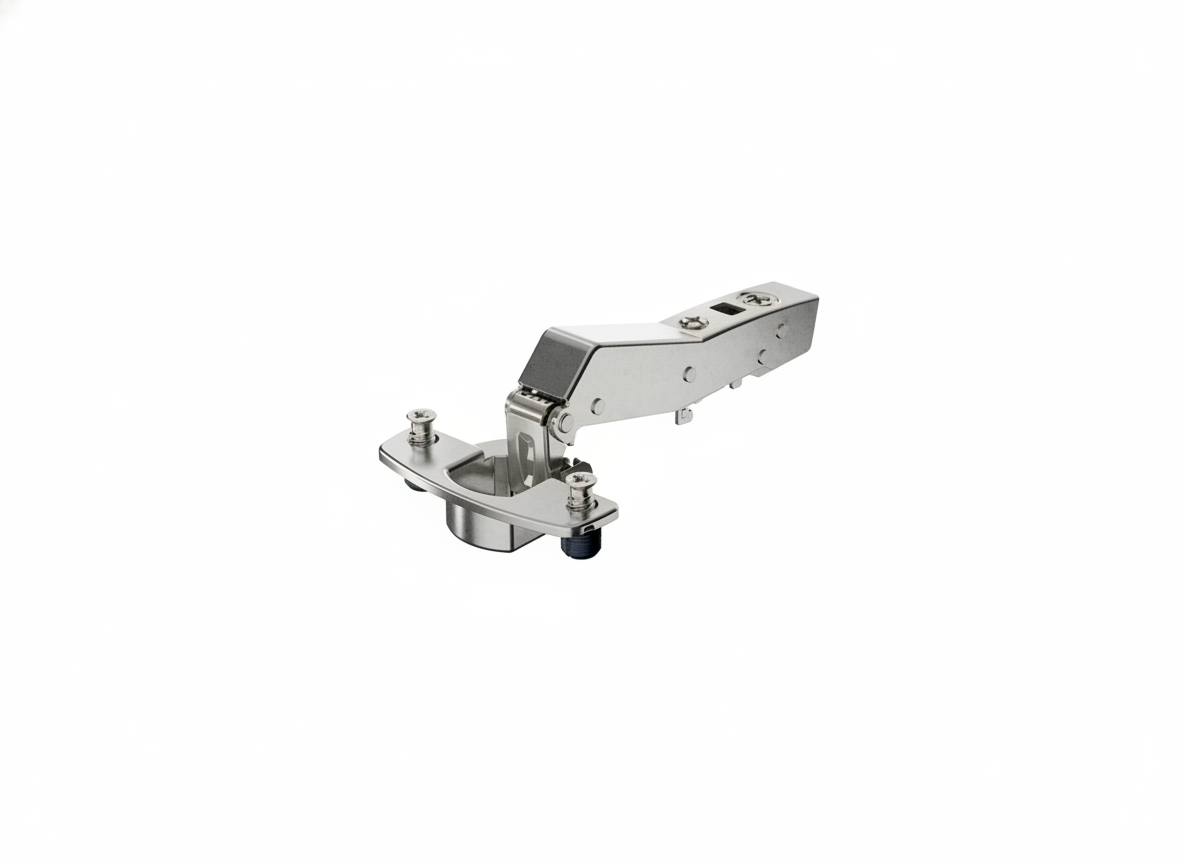

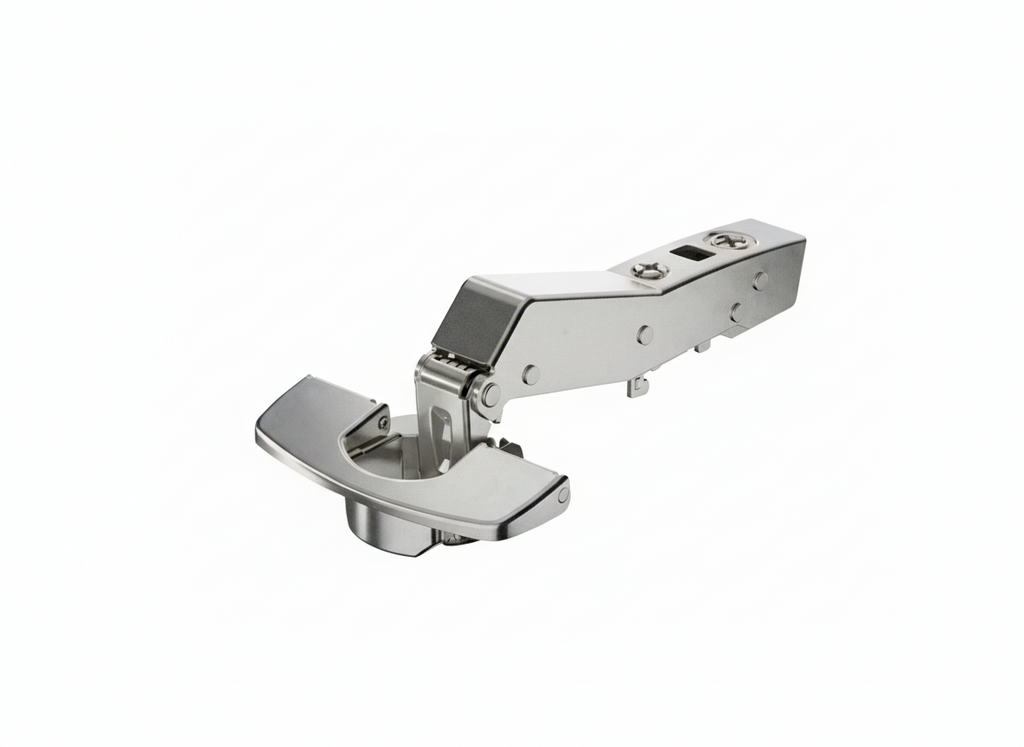

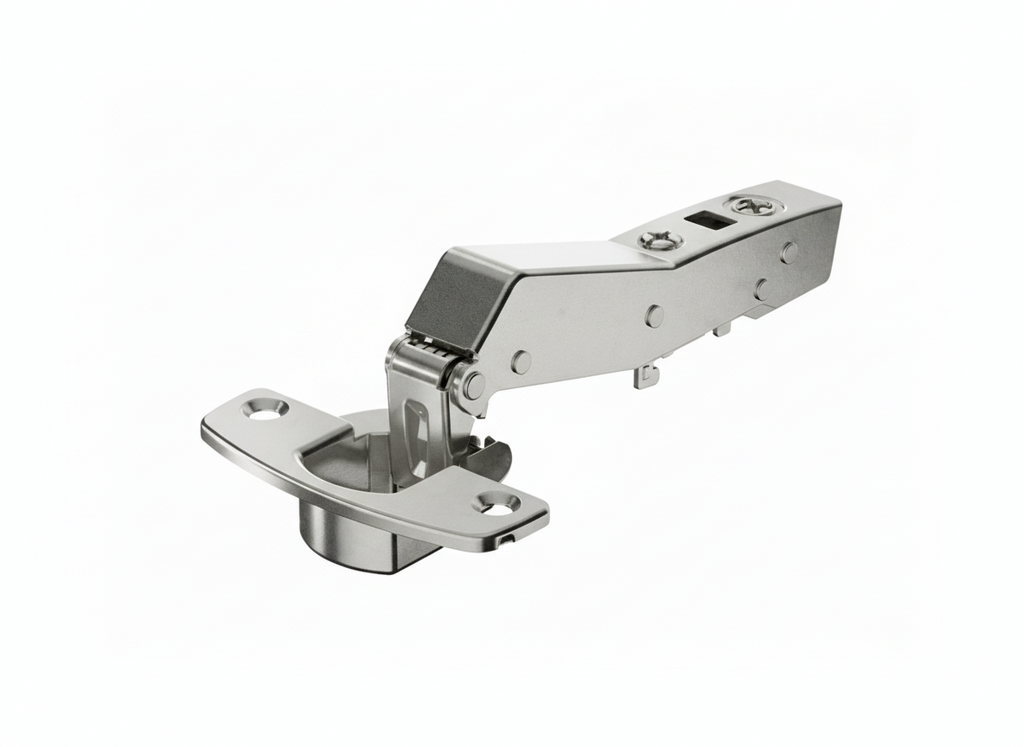

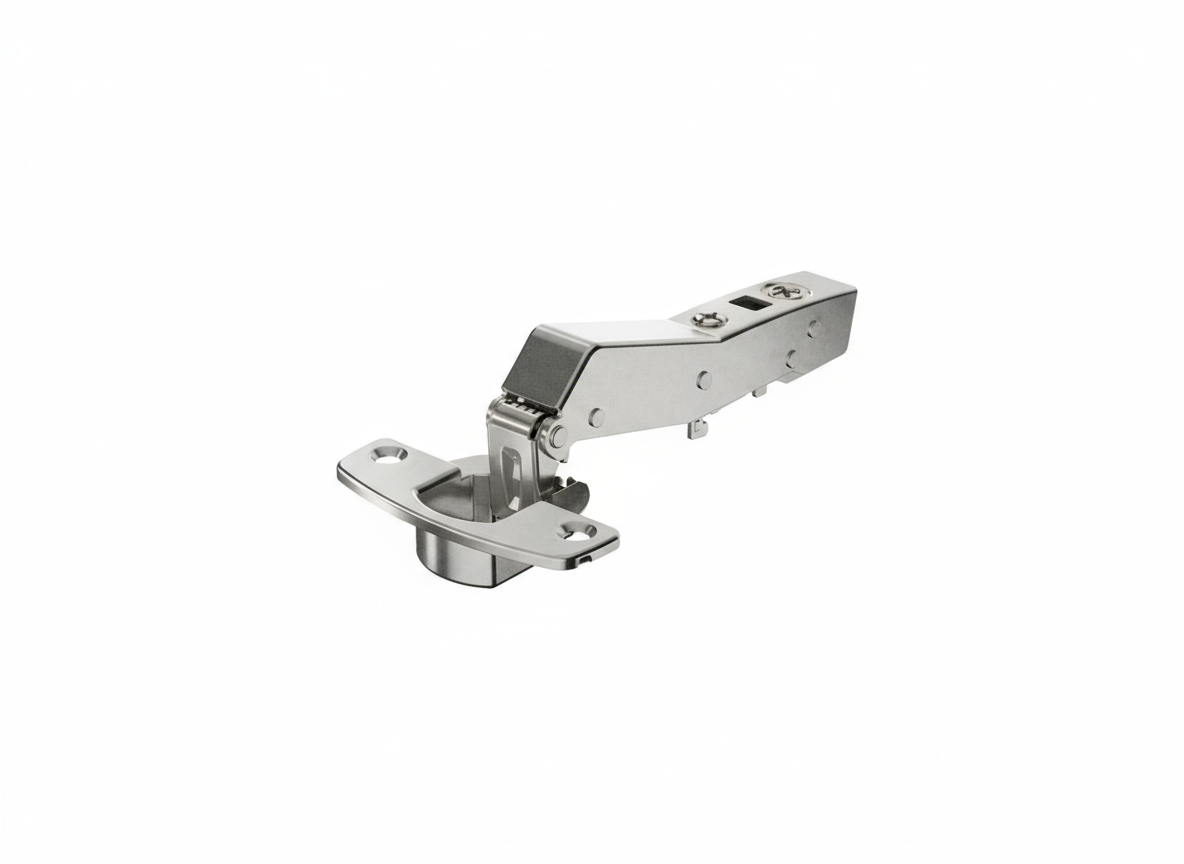

Hettich Sensys 95 Degree Hinge (Soft Close) - Full Overlay

Product Code:

• Screwing on : 9088019
• Pressing in : 9088037
• Fix Fast : 9088073
• Expanding Sockets : 9088085

Feature:

• Sensys angle hinge W45
• With integrated Silent System, with self closing feature (Sensys 8639i W45)
• Quality classification under EN 15570, Level 3
• Opening angle 95°
• For door thickness 15 - 28 mm
• Door mounting option overlay
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated

Please note: This does not come with Mounting plate. They are sold separately.
