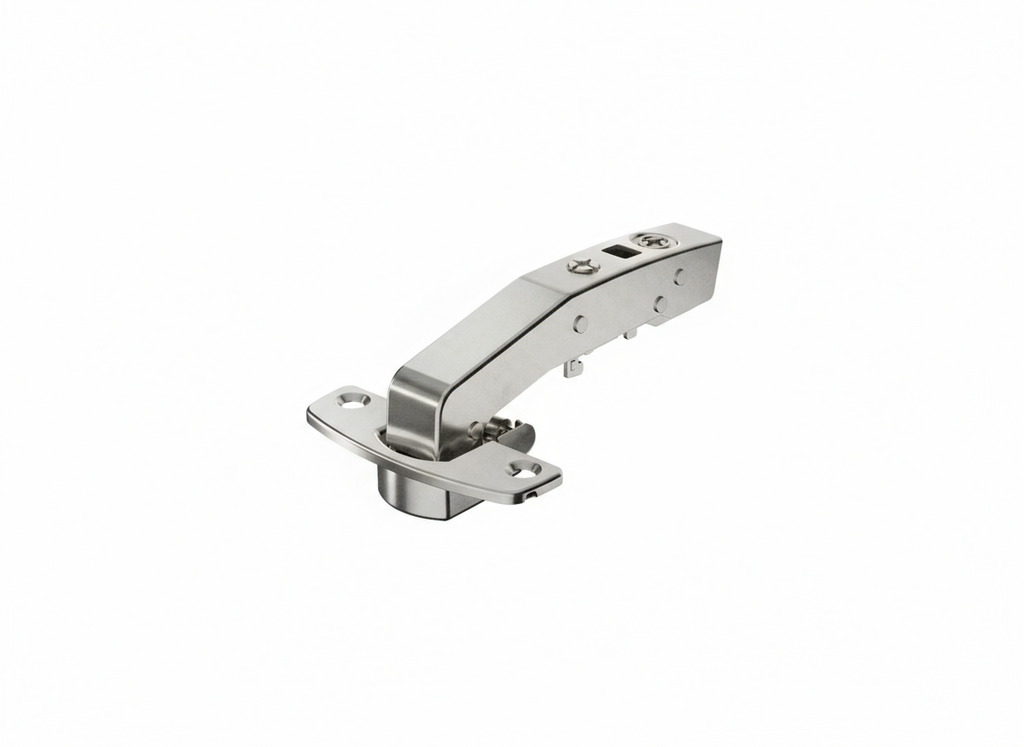

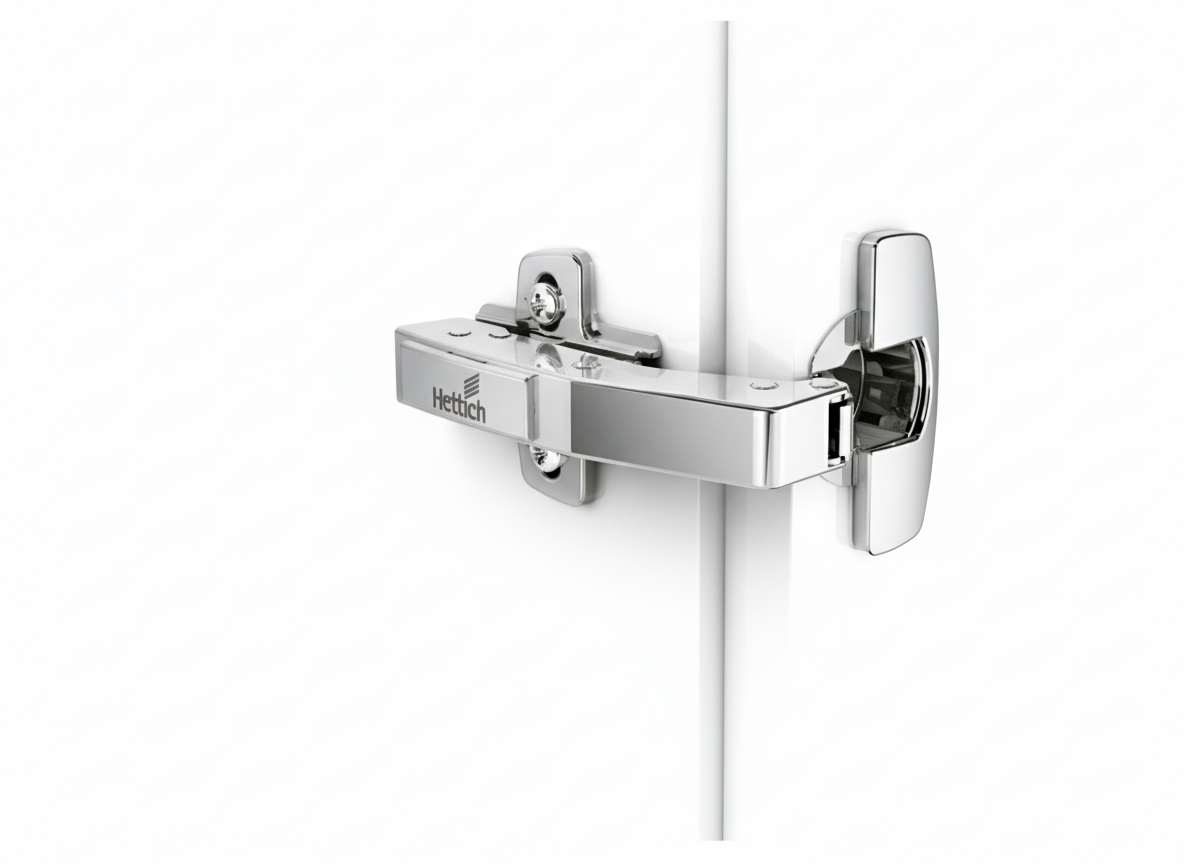

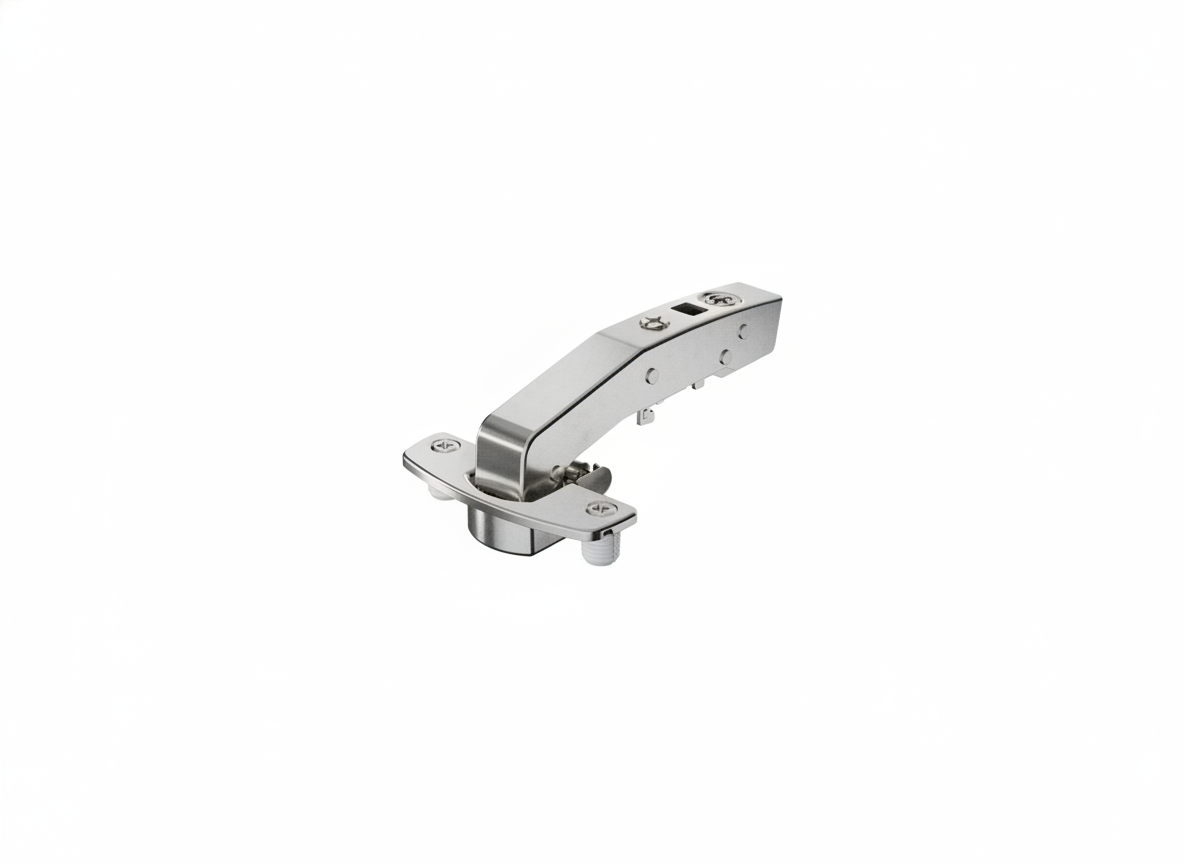

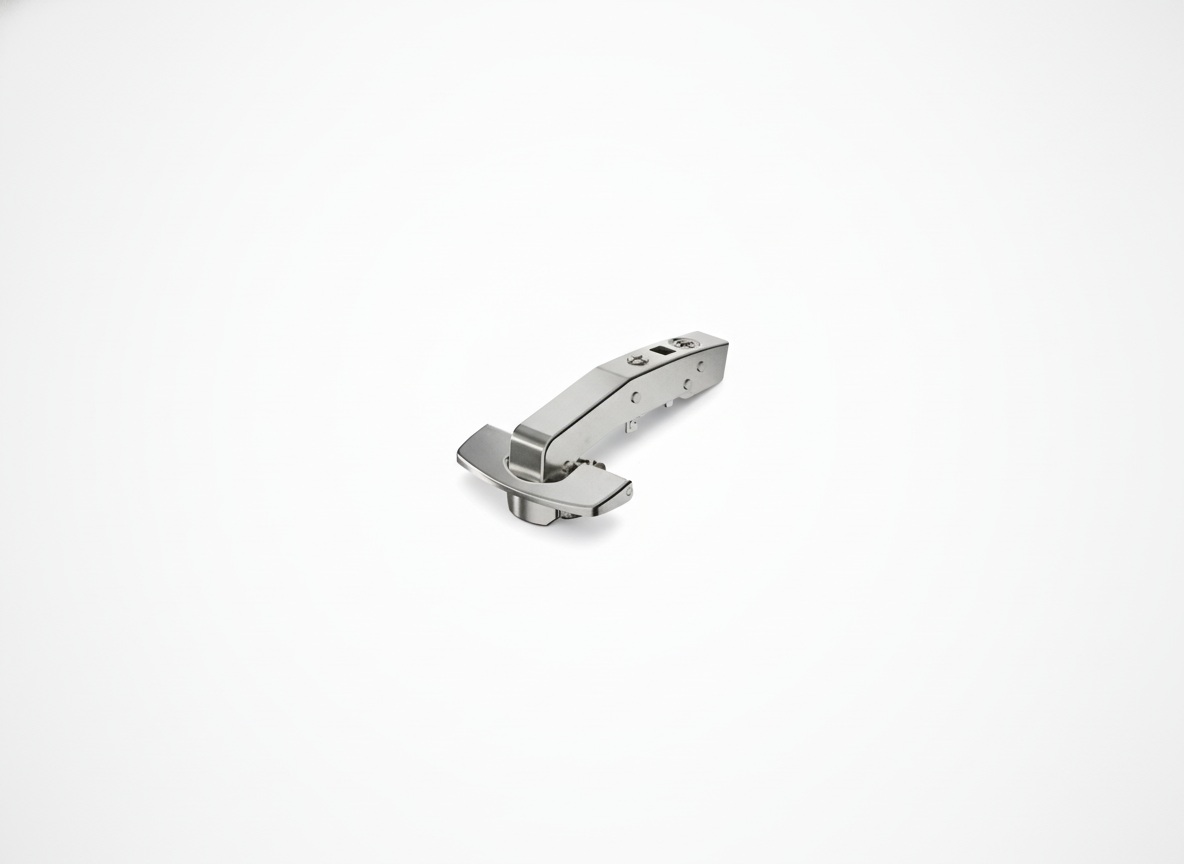

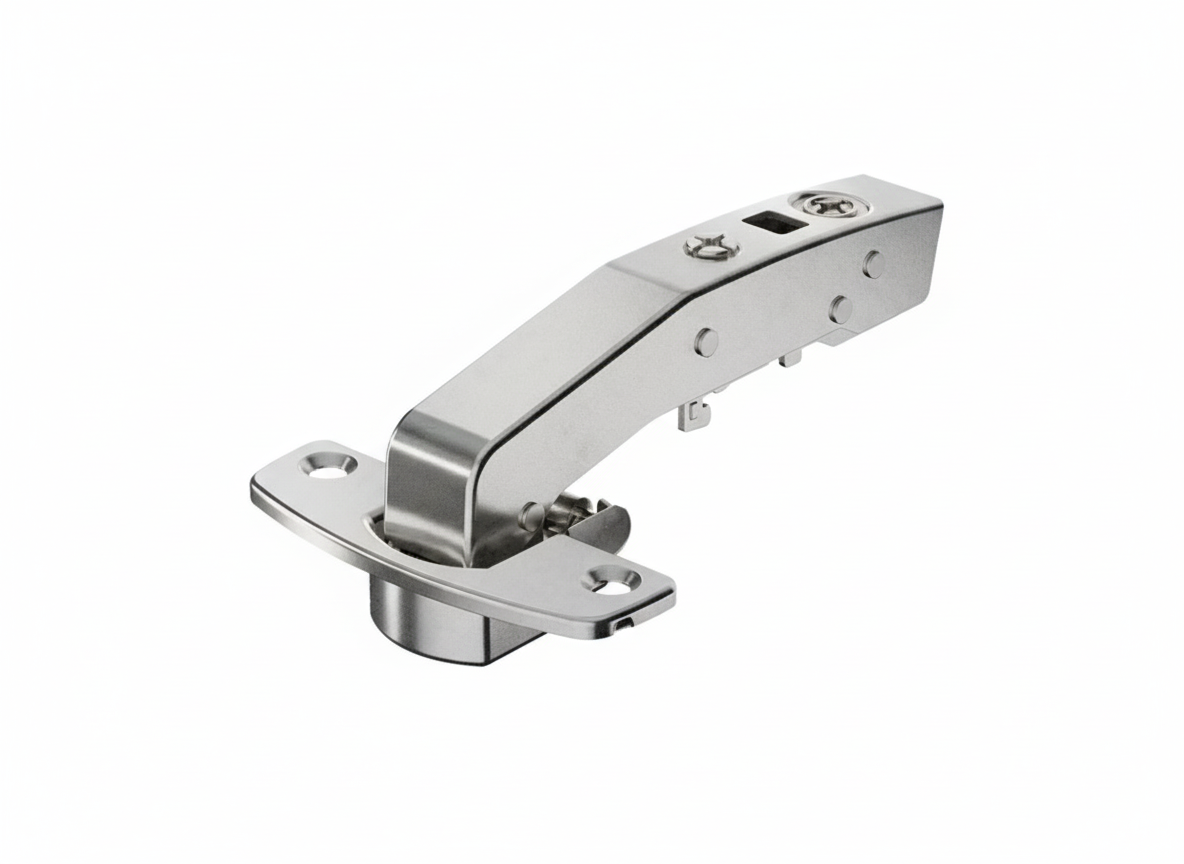

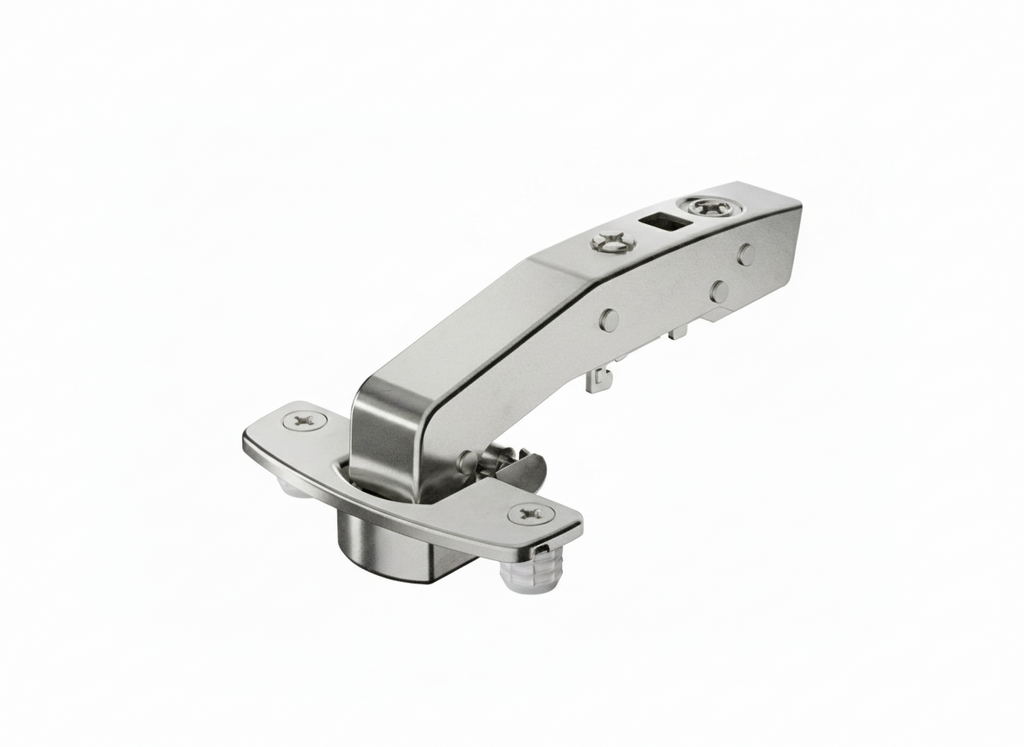

Hettich Sensys W90 95° Angle Hinge - Inset (Blind Corner)

Product Code:

• Screwing on : 9088021
• Pressing in : 9088039
• Fix Fast : 9088075
• Flash Fast (Qtr. Turn) : 9088057

Feature:

• Sensys angle hinge W90
• With integrated Silent System, with self closing feature (Sensys 8639i W90)
• Quality classification under EN 15570, Level 3
• Opening angle 95°
• For door thickness 15 - 28 mm
• Door mounting option inset
• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Integrated adjustment of door offset +1 mm / -2 mm
• Integrated reveal adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated

Please note: This does not come with Mounting plate. They are sold separately.
