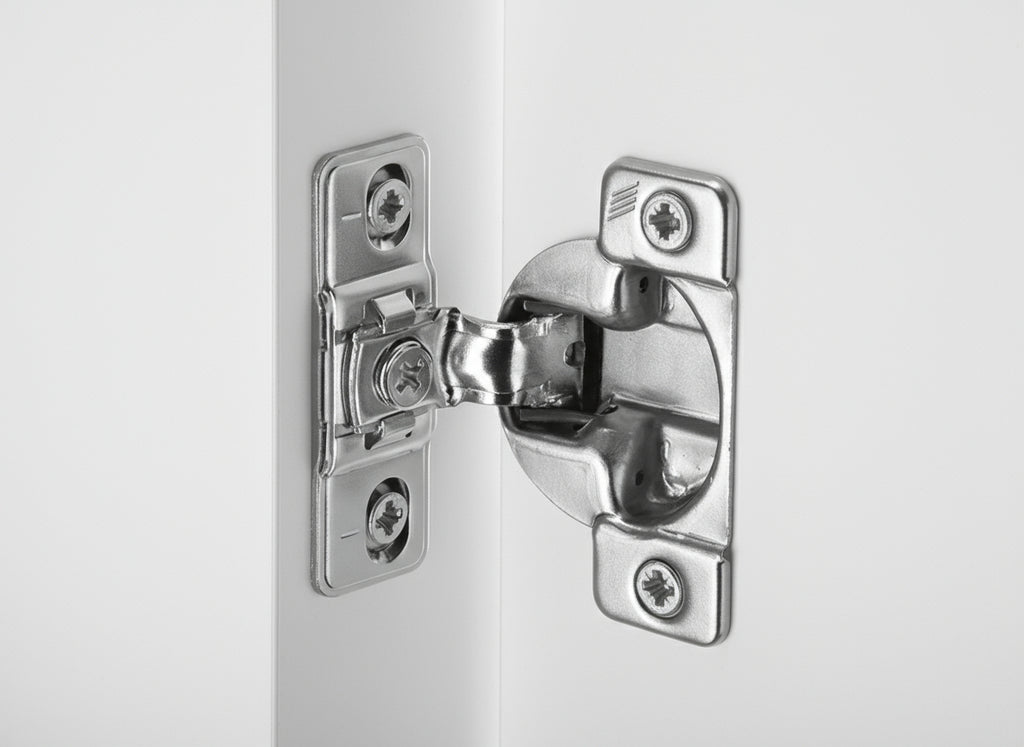

Special hinge Optimat Plus 4 FM

Feature:

• Door mounting option : Overlay
• Opening Angle : 110°
• Suitable for all frame widths
• Quality classification under EN 15570, Level 1
• For door thicknesses from 13 mm

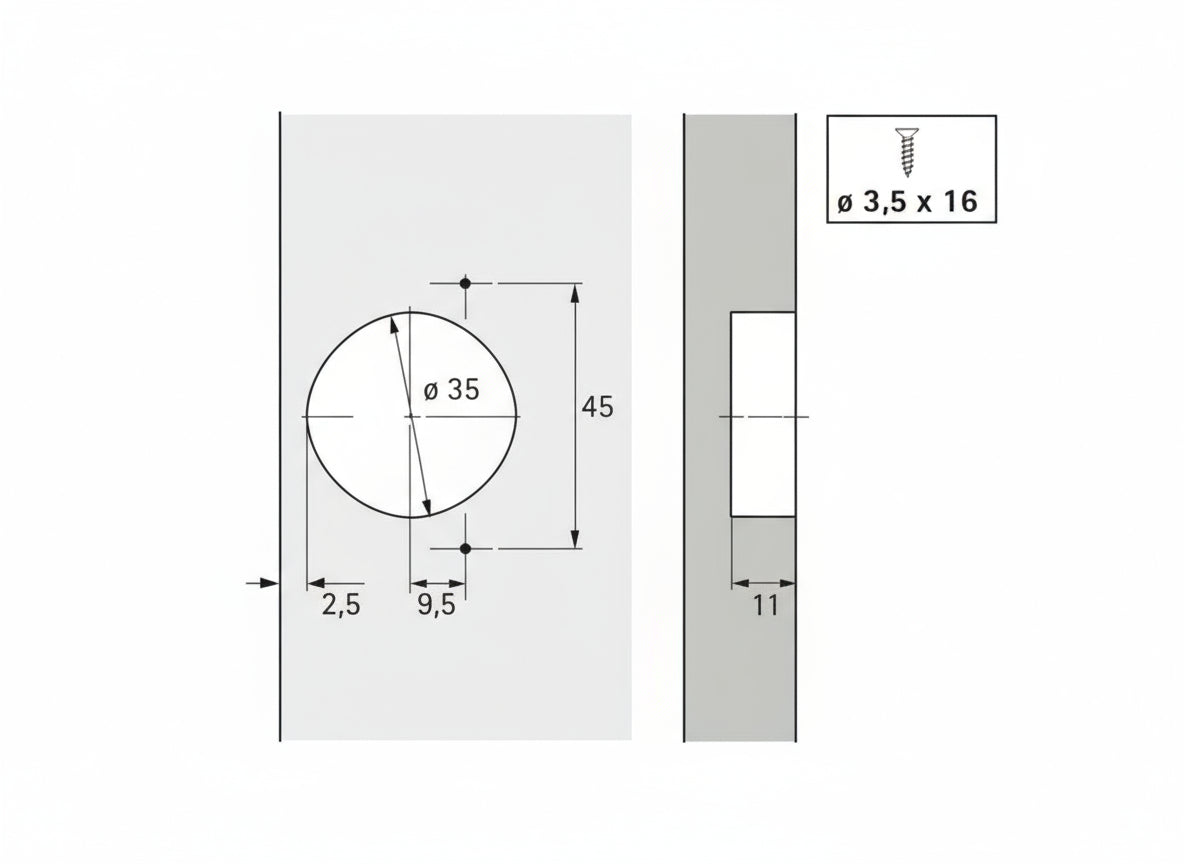

• Cup diameter 35 mm
• Cup depth 11 mm
• With self closing feature

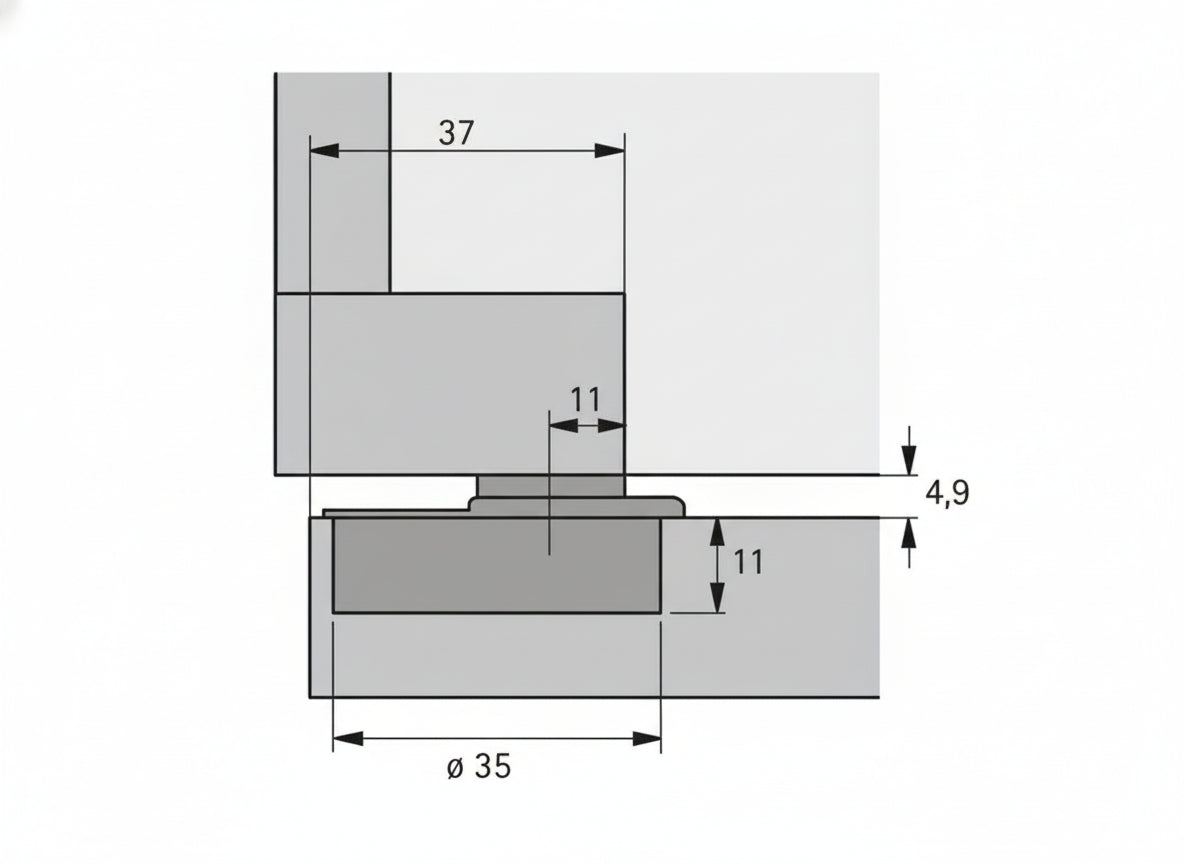

• Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
• Cup distance 2.5 mm
• Overlay adjustment + 1.5 mm / - 1.5 mm
• Height adjustment + 2 mm / - 2 mm
• Steel nickel plated
